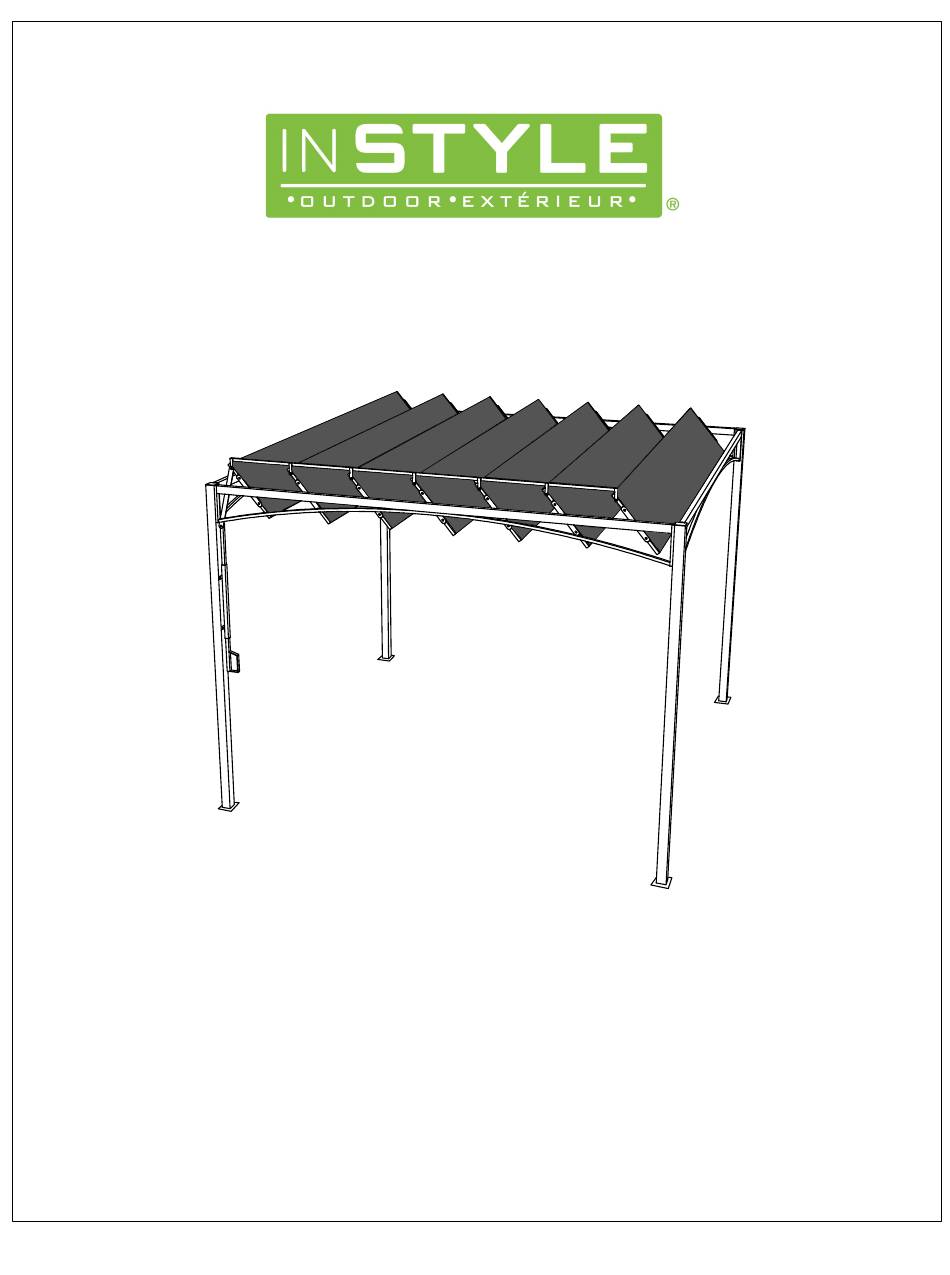

- Page 1 Instruction Manual SKU: 6414-286 10'x10' Louvre Sunshade Structure...
- Page 2 Always read and follow the instructions before use. When assembling and using this product, basic safety precautions must always be followed to reduce risk of personal injury and damage to the product or surroundings. Be sure to keep all children and pets away from assembly area. Do not attempt to assemble the gazebo in windy condition.
- Page 3 Pre-Assembly PLANNING ASSEMBLY Part Part Description Description Bolt M6x15mm Leg post A Bolt M6x15mm Leg post B Bolt M6x30mm Beam C Beam D Stake Louvre control outer tube Wrench Louvre roof panel Allen key Louvre control handle Louvre roof panel connector Louvre roof panel side connector Louvre control connector bar Foot plate...
- Page 4 Assembly STEP 1. Setting up the main frame Fig.1 Fig.2 1.1 Attach the Foot plate K to Leg A/Leg B with Bolt (M6*15) M. Please align the hole postioin when use the Bolt as show in Fig.1. 1.2 Attach the one Beam C to the Leg post A & A with bolt (M6*30) N, and attach the another Beam C to the Leg post A &...
- Page 5 Assembly (continued) STEP 2. Attaching the roof beam Fig.3 2.1 Attach the one Beam D to the Leg post A & A with bolt (M6*30) N, and attach the another Beam D to the Leg post A & B with bolt (M6*30) N as show in Fig.3.
- Page 6 Assembly (continued) STEP 3. Attaching the roof panel Fig.5 Fig.4 Fig.5A Fig.5B Fig.5C Fig.6 3.1 Attach the Louvre roof panel side connector I to the one end of Louvre roof panel F with bolt (M6*15) L. Please just assemble the Louvre roof panel side connector I on one end as show in Fig.4! Repeat this step until all Louvre roof panel has Louvre roof panel side connector I on one end.
- Page 7 Assembly (continued) STEP 4. Attaching the roof panel Fig.7 4.1 Attach the Louvre control connector bar J and Louvre roof panel connector H to the first Louvre roof panel F with with bolt (M6*30) N and Nut O. 4.2 Attach the Louvre roof panel connector H to the remaining Louvre roof panel F with bolt (M6*30) N and Nut O.
- Page 8 5.1 Hammer Stake P through one of the holes at each Foot plate K into the ground to stablize the gazebo. Finally, please check and tighten all the bolts and nuts before you use it. Congratulations, you have done the gazebo set up! SKU: 6414-286 Code: 20HF50080403 Email: service@casualwayusa.com Home Hardware Stores Limited 34 Henry Street West, St.
