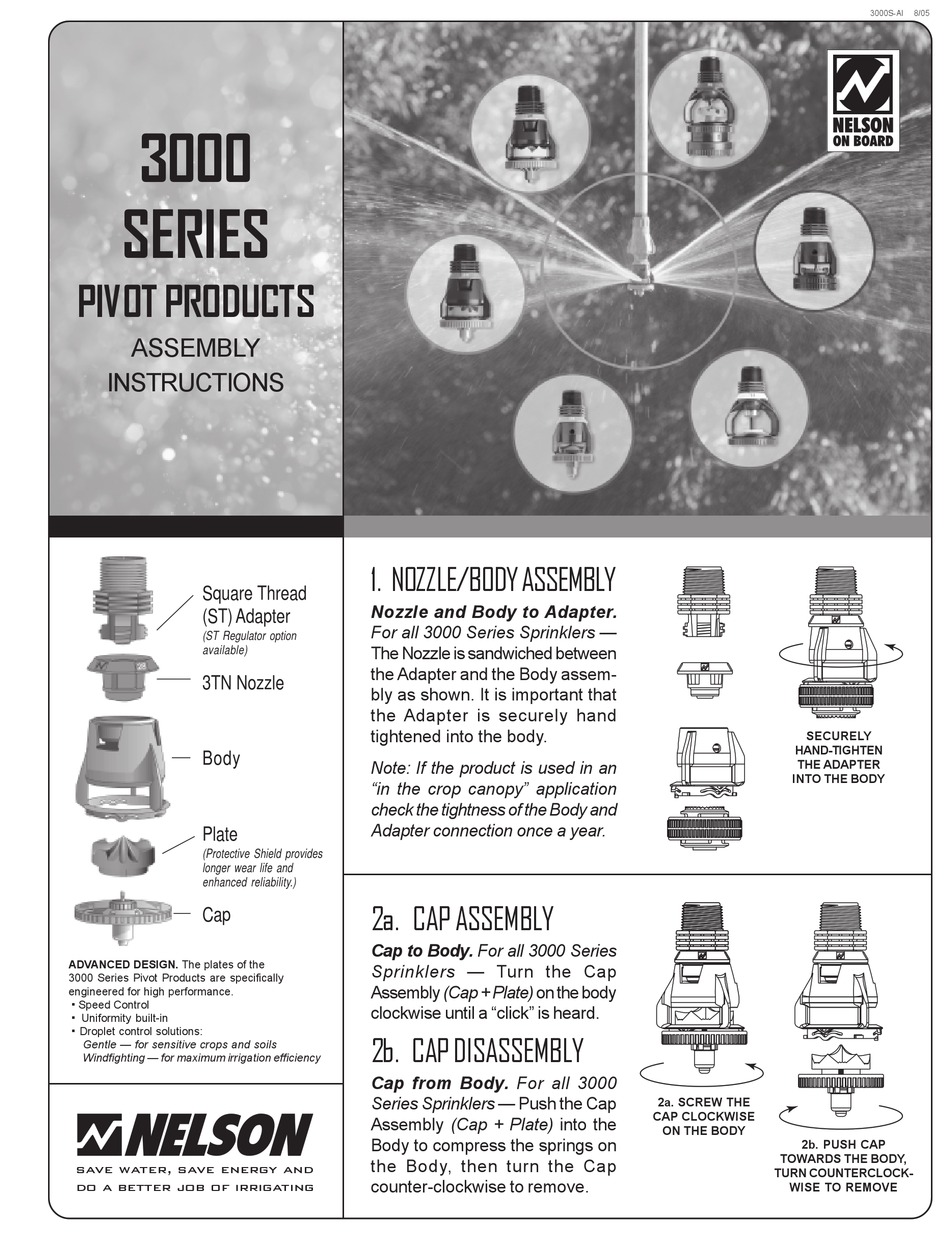

Nelson 3000 Series Assembly Instructions

3000
SERIES
PIVOT PRODUCTS
ASSEMBLY
INSTRUCTIONS
Square Thread
(ST) Adapter
(ST Regulator option
available)
3TN Nozzle
Body
Plate
(Protective Shield provides
longer wear life and
enhanced reliability.)
Cap
ADVANCED DESIGN. The plates of the
3000 Series Pivot Products are specifically
engineered for high performance.
· Speed Control
· Uniformity built-in
· Droplet control solutions:
Gentle — for sensitive crops and soils
Windfighting — for maximum irrigation efficiency
save water, save energy and
do a better job of irrigating
1. NOZZLE/BODY ASSEMBLY
Nozzle and Body to Adapter.
For all 3000 Series Sprinklers —
The Nozzle is sandwiched between
the Adapter and the Body assem-
bly as shown. It is important that
the Adapter is securely hand
tightened into the body.
Note: If the product is used in an
"in the crop canopy" application
check the tightness of the Body and
Adapter connection once a year.
2a. CAP ASSEMBLY
Cap to Body. For all 3000 Series
Sprinklers — Turn the Cap
Assembly (Cap + Plate) on the body
clockwise until a "click" is heard.
2b. CAP DISASSEMBLY
Cap from Body. For all 3000
Series Sprinklers — Push the Cap
Assembly (Cap + Plate) into the
Body to compress the springs on
the Body, then turn the Cap
counter-clockwise to remove.
SECURELY
HAND-TIGHTEN
THE ADAPTER
INTO THE BODY
2a. SCREW THE
CAP CLOCKWISE
ON THE BODY
2b. PUSH CAP
TOWARDS THE BODY,
TURN COUNTERCLOCK-
WISE TO REMOVE
3000S-AI 8/05
