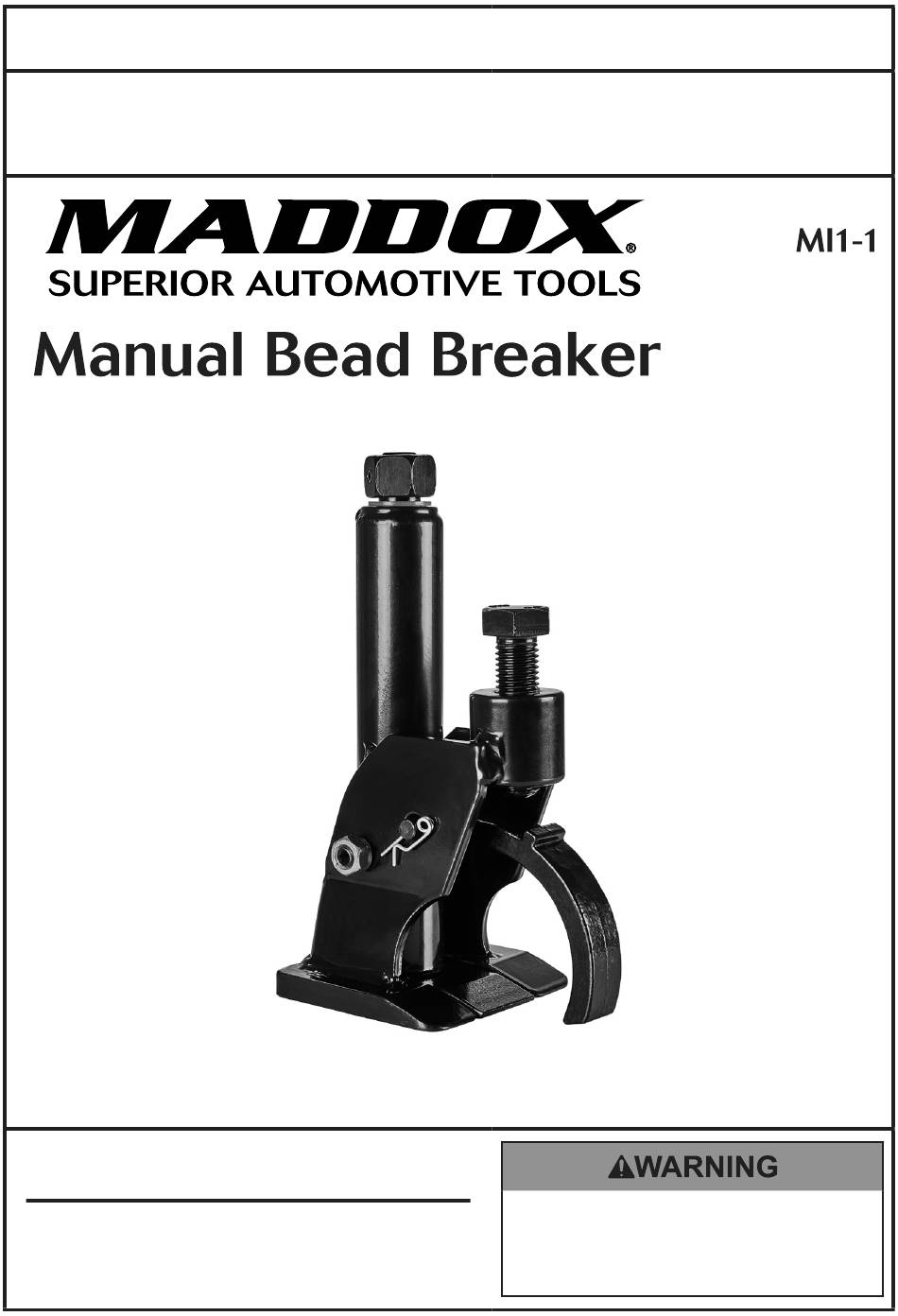

Maddox MI1-1 Owner's Manual & Safety Instructions

Manual bead breaker
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2021 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
Email our technical support at: productsupport@harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
22e
58918

Advertisement

Table of Contents
loading

Related Manuals for Maddox MI1-1

Summary of Contents for Maddox MI1-1

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

  • Page 2: Specifications

    Specifications Construction Steel Tire Size Capacity Tires up to 42″ 14-ply tires with drop-center rims. Dimensions L 6″ x W 4.4″ x H 10″ Net Weight 10 Lb. WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
  • Page 3 Keep children away. Children 12. Maintain tools with care. Keep must never be allowed in the work tools maintained and clean for better area. Do not let them handle and safer performance. Follow machines, tools, or extension cords. instructions for lubricating and changing accessories.
  • Page 4 Functions Extendable Foot Nut Hook Bolt Hook Base Extendable Foot Breaker Foot Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product. WARNING: Tires are usually pressurized.

  • Page 5: Maintenance And Servicing Instructions

    Remove tire from vehicle. NOTICE: Do not use impact wrench as it will damage Bead Breaker. Place tire on secure level surface. Tighten Hook Bolt until Remove valve core from tire Hook is snug on rim. stem to release air pressure. Tighten Extendable Foot Nut until Ensure Extendable Foot is Extendable Foot engages with tire bead.

  • Page 6: Parts List And Diagram

    Parts List and Diagram Parts List Part Description Part Description Extendable Foot Nut Screw Nylon Pads Extendable Foot Spring Pin Hook Support Assy Limit Screw (inner hex) R-Pin Spring Washer Hook Bolt Outer nut Record Serial Number Here: Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts.
  • Page 7 Diagram For technical questions, please call 1-888-866-5797. 58918 Page 7...

  • Page 8: Please Read The Following Carefully

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.

Table of Contents
