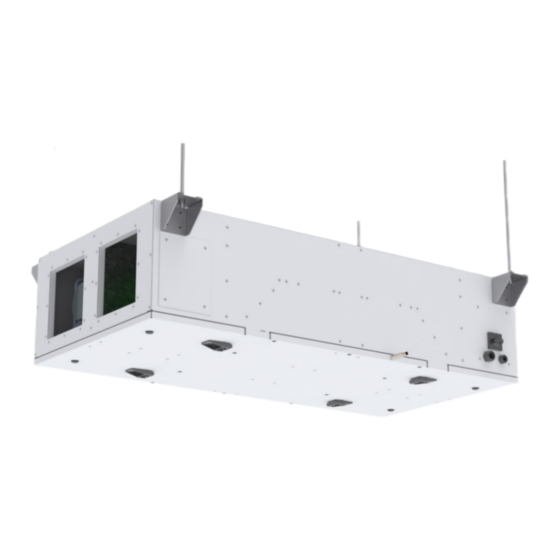

- Page 1 INSTALLATION MANUAL VENTUM LITE...
-
Page 2: Table Of Contents
Table of Contents 1. General Information 2. Installation 2.1 Unwrapping the Product 2.2 Weights 2.3 Mounting 3. Access Requirements 4. Lifting Requirements 5. Electrical 5.1 General Electrical 5.2 DOAS/ERV and SPP Power 5.3 1PH Electrical Hook Up - 2 Fans 5.4 Fan Connection - Single Phase 5.5 Wiring Diagram - Ventum Lite 208V 5.6 Wiring Diagram - Ventum Lite 208V... -
Page 3: General Information
Installation Manual Ventum Lite Series 1.0 General Information Warnings and Caution This manual includes important instructions for safe connection of the Energy Recovery Ventilator (ERV). Before connecting the unit, please read carefully and Warnings and cautions appear at the appropriate follow all of the instructions below! The manufacturer sections throughout this manual. -
Page 4: Installation
Installation Manual Ventum Lite Series 2.0 Installation 2.1 Unwrapping the Product When removing the shrink wrap, be cautious with knives and sharp tools to prevent scratching the paint. Unit Packaged for Shipping 2.2 Weights Model Fan Weight lbs. Core Weight lbs. Total Weight lbs. -
Page 5: Access Requirements
Installation Manual Ventum Lite Series 3.0 Access Requirements Ceiling-mounted unit with doors open Door with removed hinge pin Access the fan and filter through the tool access bottom swing doors. Access the electrical enclosure through the RA filter section. Access the core by removing the bottom panel socket screws. -
Page 6: Electrical
Installation Manual Ventum Lite Series 5.0 Electrical 5.1 General Electrical Motor SA Fan RA Fan Model Nom. V. Phase MROPD (kW) FLA Total FLA Total 208/240 0.53 3.50 3.50 3.50 3.50 7.00 7.88 11.38 208/240 0.50 2.50 2.50 2.50 2.50 5.00 5.63 8.13... - Page 7 Installation Manual Ventum Lite Series Heater Heater Nominal Heater Unit Total Recommended Airflow Capacity Capacity MROPD Voltage Fuse Size Variant (kW) 208/1/60 4.81 11.81 14.76 17.82 9.62 16.62 20.78 28.65 19.24 26.24 32.80 50.29 3.50 3.50 7.00 28.86 35.86 44.83 71.94 38.48 38.48...
- Page 8 Installation Manual Ventum Lite Series Heater Heater Nominal Heater Unit Total Recommended Airflow Capacity Capacity MROPD Voltage Fuse Size Variant (kW) 208/1/60 1200 14.43 20.63 25.79 38.67 28.86 35.06 43.83 71.14 48.10 54.30 67.88 114.43 3.90 3.90 6.20 72.15 78.35 97.94 168.54 100A...
-
Page 9: 1Ph Electrical Hook Up - 2 Fans
Installation Manual Ventum Lite Series 5.3 Single-Phase Lite Electrical Hook Up (2 Fans) Attention: Single phase electrical consists of single Line, Neutral and Ground OR two hot lines and Ground (Line 1, Line 2 and Ground) based on voltage availability. Dual 120V feeds will not work. 1 phase, 3 wire, 240V -10% ―... -
Page 10: Fan Connection - Single Phase
Installation Manual Ventum Lite Series 5.4 Fan Connection - Single Phase FAN BODY Drawn by: Name: 240V FAN WIRING DIAGRAM Approved by: SINGLE PHASE Date: 2020-04-02 Drawing number: Scale: Pieces: Weight: O28-05-0003-10 Material:... -
Page 11: Wiring Diagram - Ventum Lite 208V
Installation Manual Ventum Lite Series Wiring Diagram 5.5 Wiring Diagram - Ventum Lite 208V, Single Phase 208VAC/1 /60HZ M9F1 M9F2 S/A Fan M9F3 M9F4 R/A Fan S/A Fan Control Signal (0-10VDC) SUPPLY AIR FAN CONTROL S/A Fan Control Signal (GND) R/A Fan Control Signal (0-10VDC) R/A Fan Control Signal (GND) Factory Jumper (blk) -
Page 12: Wiring Diagram - Ventum Lite 208V
Wiring Diagram 208VAC/1 ELETRICAL PRE-HEATER Installation Manual Ventum Lite Series 5.6 Wiring Diagram - Ventum Lite 208V, Single Phase, SPP Electrical Pre-Heater Wiring Diagram 208VAC/1 ELETRICAL PRE-HEATER ERV ELECTRICAL PANEL M9F1 M9F2 S/A Fan M9F3 M9F4 ERV ELECTRICAL PANEL R/A Fan M9F1 M9F2 S/A FAN CONTROL SIGNAL ( 0-10VDC)
