Operation
6.10

Sensors

The Sensors menu contains the settings to setup and configure
the sensors for all the connections on the device and input modules
implemented.
The Menu is comprised of a series of tiles which provide a preview of
the settings contained in them. Each tile can also be used as a button to
open the corresponding submenu. If no input modules are implemented,
the tiles (A, B) are grayed out.
1 2 3
6 5 4

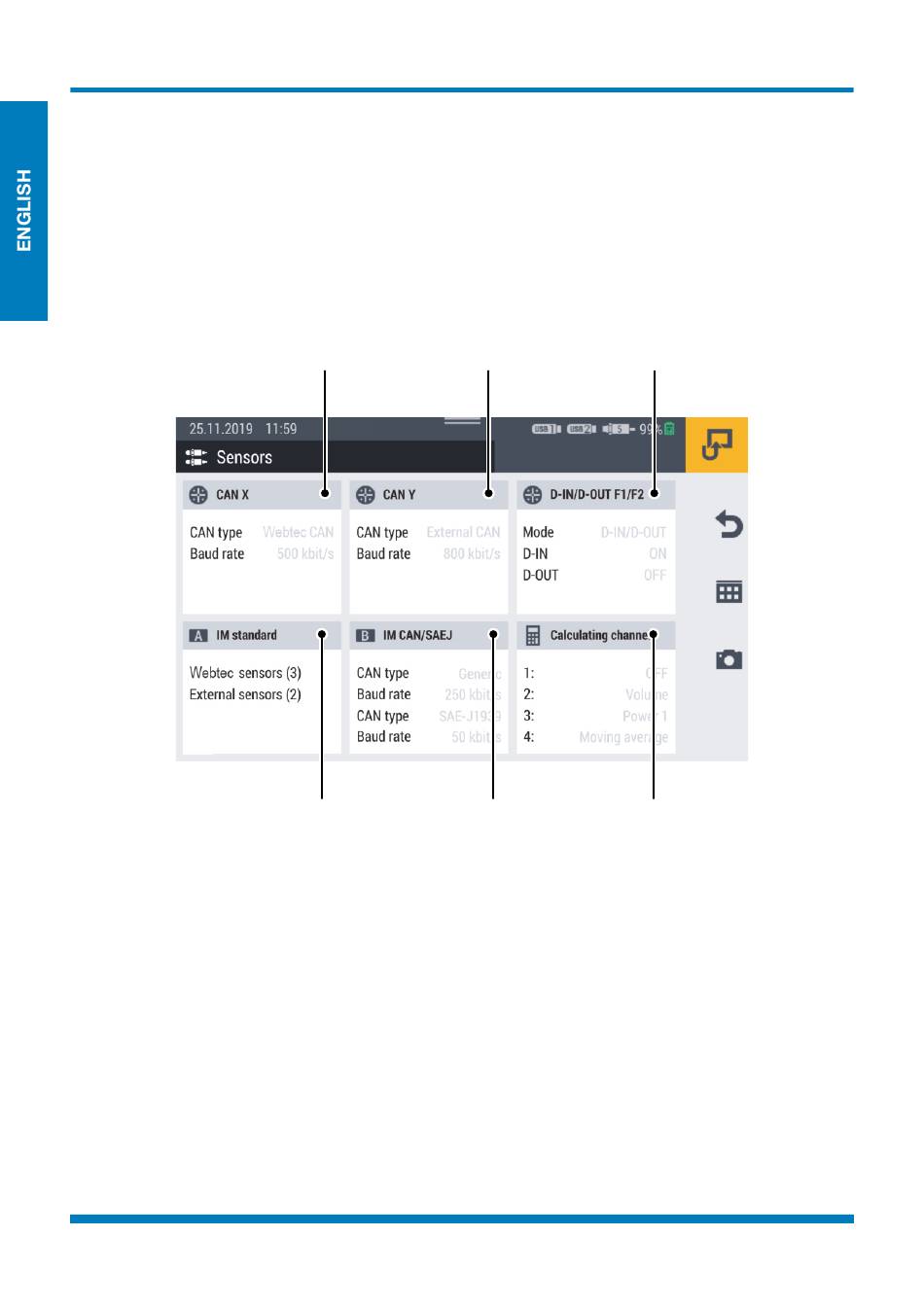

Fig. 45 Sensors
