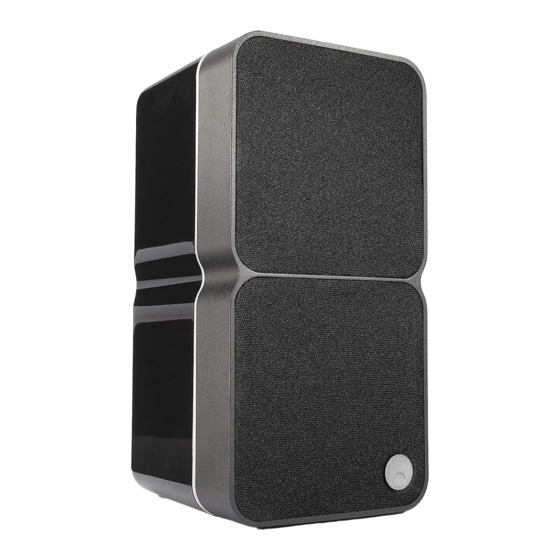

Cambridge Audio Minx MIN22 User Manual
Compact speaker
Hide thumbs
Also See for Minx MIN22:
- User manual ,
- Installation manual (13 pages) ,
- Installation manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Cambridge Audio Minx MIN22
Summary of Contents for Cambridge Audio Minx MIN22
- Page 1 Minx MIN22 Compact Speaker Manual Generated: 2023/01/19 - 22:19...
-
Page 2: Table Of Contents
目次 Minx MIN22 Compact Speaker ......................................... Introduction ............................................... What's included with the Minx MIN22? ....................................Front Panel ..............................................Rear Panel ..............................................Installation Instructions ..........................................Suggested Setups ............................................Technical Specifications .......................................... Frequently Asked Questions ........................................Troubleshooting ............................................ -
Page 3: Minx Min22 Compact Speaker
Minx MIN22 Compact Speaker Last updated: 1月 12, 2023 08:53. Revision #8352 Users Manual... -
Page 4: Introduction
Last updated: 1月 19, 2023 05:54. Revision #8481 Thank you for purchasing this Cambridge Audio Minx MIN22 loudspeaker. We hope that you enjoy many years of listening pleasure from it. Your loudspeakers can only be as good as the system it is connected to. Please do not compromise on your amplifier or cabling. Naturally we particularly recommend amplification from the Cambridge Audio range, which has been designed to the same exacting standards as our loudspeakers. -
Page 5: What's Included With The Minx Min22
What's included with the Minx MIN22? Last updated: 1月 19, 2023 05:54. Revision #8482 1. 1 x MIN22 Compact Speaker 2. Quick Start Guide 3. Keyhole Bracket 4. 4 x Transparent Pad. -
Page 6: Front Panel
Front Panel Last updated: 1月 19, 2023 05:54. Revision #8483 1. 2 x 2.25" BMR driver. -
Page 7: Rear Panel
Rear Panel Last updated: 1月 19, 2023 05:54. Revision #8484 1. Mounting screw thread. 2. +/- Speaker connection terminals. -
Page 8: Installation Instructions
Installation Instructions Last updated: 1月 19, 2023 05:55. Revision #8485 1. Firstly, ensuring to match the polarity/colour coding, connect the supplied speaker terminals to the speaker outputs of your amplifier by unscrewing the ends, and securing the speaker cable in the available hole on each terminal. These terminals can then be installed into the rear of the MIN22 with the cables connected. -
Page 9: Suggested Setups
Last updated: 1月 19, 2023 05:55. Revision #8486 The Minx MIN22 speakers can be used as part of an array of different setups depending on your individual requirements. Please see several recommended setups below utilising the MIN22’s, and other items within the Minx range such as the MIN12 speakers, and X201 subwoofer. -
Page 10: Technical Specifications
Technical Specifications Last updated: 1月 19, 2023 05:55. Revision #8487 Sensitivity (SPL) Frequency Response 120Hz - 20kHz Impedance 8 Ohms Compatible Drivers 2 x 2.25" BMR Driver Recommended Amplifier Power 25 - 200 Watts Speaker Dimensions (H x W x D) 154 x 78 x 85mm. -
Page 11: Frequently Asked Questions
Frequently Asked Questions Last updated: 1月 19, 2023 05:55. Revision #8488 What is meant by speaker sensitivity? Speaker sensitivity is the level produced by the speaker at one meter, when supplied with one watt of power from an amplifier. It’s a way of describing how well the speaker produces acoustic energy, based on a given input. -
Page 12: Troubleshooting
Troubleshooting Last updated: 1月 19, 2023 05:55. Revision #8489 No sound through one or both channels. • Check that the amplifier is turned on. • Ensure that the correct input source is selected on the amplifier. • Confirm that all connections between the amplifier and loudspeakers are secure. •...
