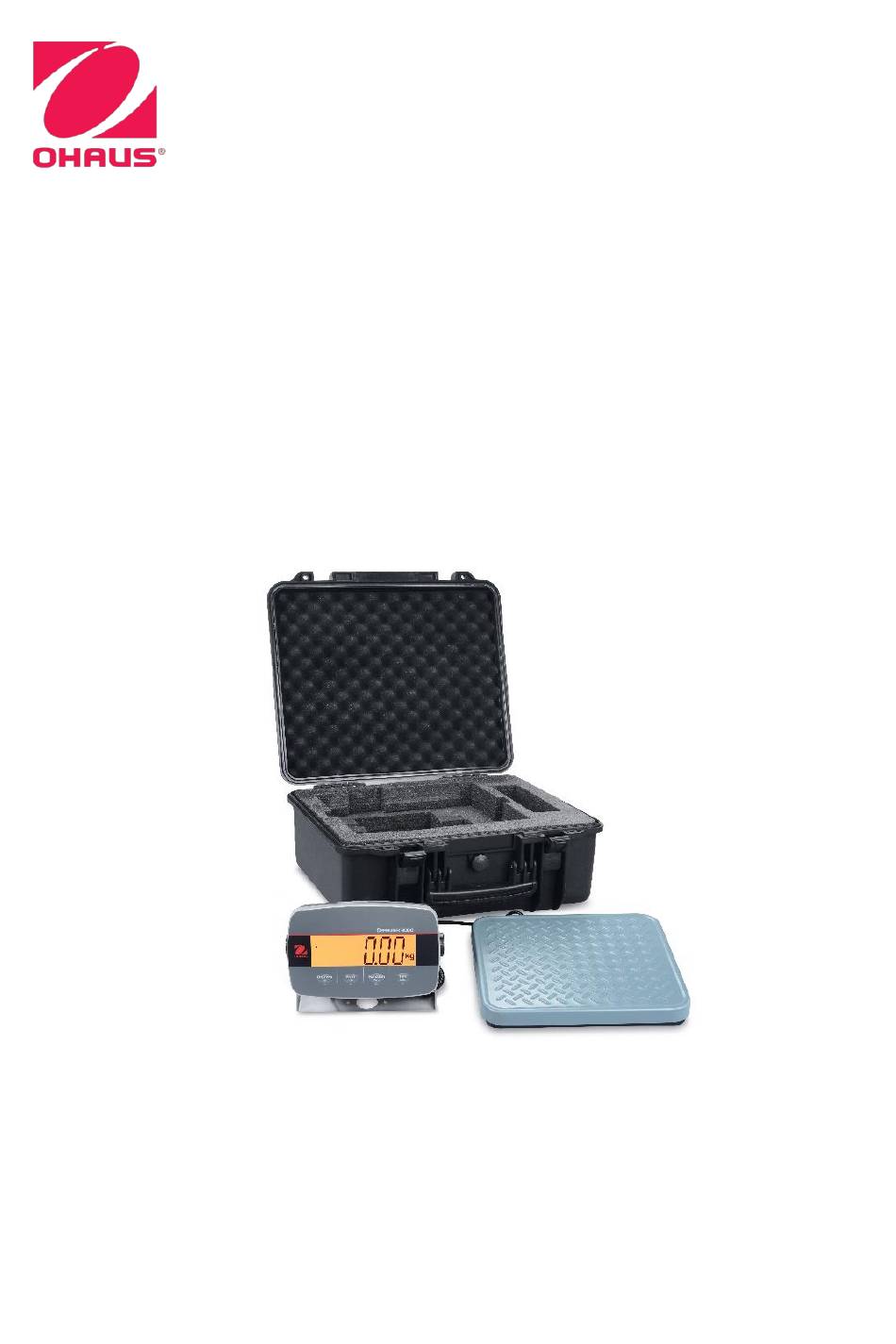

- Page 1 Bench Scale Quick Start Guide...
-
Page 3: Safety Precautions
Bench Scale EN-1 1. INTRODUCTION This quick start guide contains the installation, operation and maintenance instructions for the i-D33P75SD bench scale. Please read it completely before installation and operation. 1.1. Safety Precautions Definition of Signal Warnings and Symbols Safety notes are marked with signal words and warning symbols. These show safety issues and warnings. -
Page 4: Installation
EN-2 i-D33P75SD Bench Scale ⚫ Do not allow liquids to enter the equipment. ⚫ Use only approved accessories and peripherals. ⚫ Disconnect the equipment from the power supply when cleaning. ⚫ Service should only be performed by authorized personnel. WARNING: Never work in an environment subject to explosion hazards! The housing of the instrument is not gas tight. -
Page 5: Operation
Bench Scale EN-3 3. OPERATION 3.1. Overview of Display and Controls Figure 3 i-DT33P Control Panel Button Primary Function On/Zero Print Function Tare (Short Press) If the terminal is Sends the Initiates an Performs a tare off, press to... -
Page 6: Calibration Menu
EN-4 i-D33P75SD Bench Scale Notes: • Short Press: press less than 1 second. • Long Press: press and hold for more than 3 seconds. 4. CALIBRATION MENU Enter the calibration menu C.A.L to perform calibrations. 4.1. Initial Calibration When the scale is operated for the first time, a zero and span calibration are recommended to ensure accurate weighing results. - Page 7 Bench Scale EN-5 4.3. Span Calibration [SpaN] Span calibration uses one calibration point. It is established with a calibration mass placed on the scale. Note: Span calibration should be performed after zero calibration. Calibration procedure (when the calibration unit is kg) Long press the Menu button until you see mM.E.N.U.
- Page 8 EN-6 i-D33P75SD Bench Scale 0 kg and the calibration unit are flashing on the display. With no weight on the pan, press the Yes button to establish the zero point. The display shows --C--. Then the first calibration point and the unit are flashing on the display based on the scale capacity and unit you set in the setup menu.
-
Page 9: Maintenance
Attention: Do not use solvents, harsh chemicals, ammonia or abrasive cleaning agents. 5.2. Troubleshooting For technical issues contact an Authorized Ohaus Service Agent. Please visit our website www.ohaus.com to locate the OHAUS office nearest you. 6. TECHNICAL DATA 6.1. Specifications... - Page 10 EN-8 i-D33P75SD Bench Scale Model i-D33P75SD 75 kg x 0.02 kg Capacity x Readability 150 lb x 0.05 lb Weighing units Kilogram, Gram, Pound, Ounce, Pound: Ounce Modes Weighing, Counting, Check, Totalization Stabilization time Within 2 seconds Zero range To capacity by subtraction...
- Page 12 Product Page: http://www.ohaus.com/ Ohaus Corporation 7 Campus Drive Suite 310 Parsippany, NJ 07054 USA Tel: +1 973 377 9000 Fax: +1 973 944 7177 With offices worldwide www.ohaus.com *30728940* P/N 30728940A © 2022 Ohaus Corporation, all rights reserved...
