v1.1.2.2022-700E
User Manual
SKYNAV Technology, Inc.
ADD 6F., No105, Xicheng Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C)
Tel:886-2-26870869 / Fax:886-2-26870096
www.skynav.com.tw / service@skynav.com.tw
This device has some optional user activated functionality which may
not be permitted in some countries. If you are in any doubt, please check
with your local authorities.
Do not input voltage over 40V.
Stay away from fire.
Do not crash by Human negligence.
What do I need?
Wi-Fi antenna
AIS-700E
Basic Setting
Install our setting software "AIS700_Series_AP"
1
2
Open the software.
Made in Taiwan
Warning
Notifications
Power cable
Data cable
User manual
USB cable
RECYCLABLE
PACKAGING

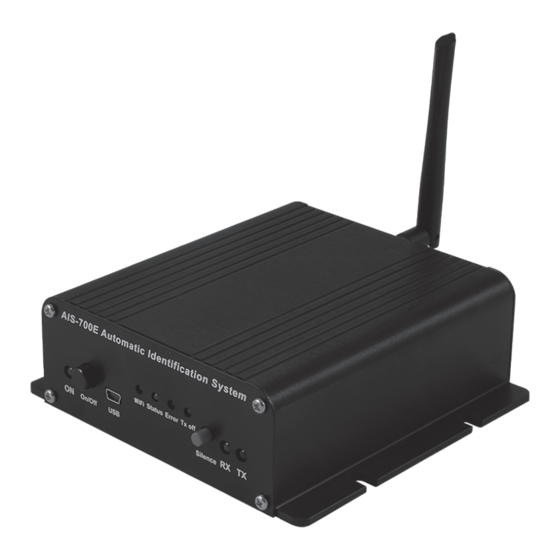

AIS-700E Class B AIS Transponder
Plug in the power cable and provide 12~24V power input.
3
Turn on the AIS-700E.
4
Connect to your computer by USB cable.
5
Choose "Basic Setting".
6
Choose the correct COM Port and click "Connect".
7
Click "Query" to load default setting.
8
Enter the information of ship then click "SET".
9
(Please enter the same encrypted code with your buoy.
If you don't have our buoy, you don't have to do this.)
Click "Query" to make sure the setting.
10
Click Disconnect and EXIT.
11
Power off the AIS-700E.
12
Advertisement
Table of Contents
Related Manuals for SKYNAV AIS-700E
Summary of Contents for SKYNAV AIS-700E
- Page 1 User Manual AIS-700E Class B AIS Transponder Plug in the power cable and provide 12~24V power input. Turn on the AIS-700E. Connect to your computer by USB cable. Choose “Basic Setting”. Choose the correct COM Port and click “Connect”.
- Page 2 Power on the AIS-700E. Install the Wi-Fi antenna. Open the Wi-Fi list on your smart phone. Choose the SSID you set for AIS-700E. Plug in the power cable and provide 12~24V power input. Turn on the AIS-700E. Connect to your computer by USB cable.
- Page 3 User Manual AIS-700E Class B AIS Transponder Network Setting:Ethernet Enter the IP address and TCP port. Open the software. Plug in the power cable and provide 12~24V power input. Turn on the AIS-700E. Connect to your computer by USB cable.
- Page 4 User Manual AIS-700E Class B AIS Transponder Ethernet Connection LED Flash Code Power on the AIS-700E. Install the ethernet cable. Open the software “sokit”. AIS-700E Automatic Identification System WiFi Status Error Tx off Enter the TCP Addr and Port of “Network Setup”.
- Page 5 AIS data via Wi-Fi traffic Sold Date: ___ / ___ / ______ (dd/mm/yyyy) Notifications If you need to continue to set another AIS-700E, you do not need to choose your COM Port. Just click connect and repeat step 8 to 11.
