SKYNAV AT-206 User Manual

v1.1.3.2022-206
User Manual
SKYNAV Technology, Inc.
ADD 6F., No105, Xicheng Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C)
Tel:886-2-26870869 / Fax:886-2-26870096
www.skynav.com.tw / service@skynav.com.tw
AT-206 is a fully certified Type 1 AIS Aids to Navigation buoy tracker.
This device has some optional user activated functionality which may
not be permitted in some countries. If you are in any doubt, please
check with your local authorities.
Stay away from fire.
Do not crash by Human negligence.

What do I need?

The tracker, Rubber, VHF antenna
VHF antenna
Rubber
The tracker

Software setting

Download and install the software on PC.
Connect the supplied USB cable to the AIS tracker and PC.
Open the software and choose the right
model of the device.
Made in Taiwan

Warning

Notifications

Rod holder
Flat holder
Accessories (choose one)
RECYCLABLE
PACKAGING
and required
COM Port

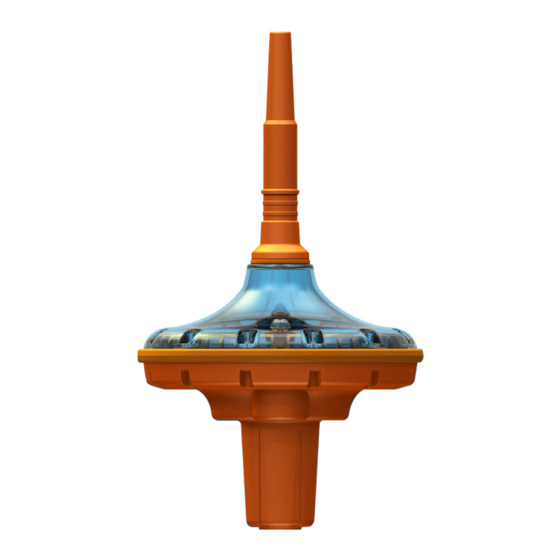

AT-206 Solar Powered AIS AtoN Buoy Tracker
Plug in the data cable. Turn on the AT-206.
1 2
Start the AT-206 setting software.
4
5 Choose the right COM Port and click the "Connect".
6 Enter the MMSI, Name (17chacators) and select Interval.
7 Enter the information of your vessel or buoy.
(The blue point is the position of our tracker.)
Select the Encryption function and enter the encrypt code if you need.
8
(The encrypt code should same with your AIS transponder.)
9 Select the ON/OFF of night lighter.
Select AIS type. (Standard is for vessel ; AtoN is for buoy ;
10
Older AIS is for vessel with older chartplotter it can't receive Name of vessel.)
Click the "Set".
11
Click the "Query" to check is the information set up correctly done.
12
If yes, Click the "Exit".
13
Connect to PC by USB.
3
