SKYNAV AT-108 User Manual

v1.1.1.2020-108
User Manual
SKYNAV Technology, Inc.
ADD 6F., No105, Xicheng Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C)
Tel:886-2-26870869 / Fax:886-2-26870096
www.skynav.com.tw / service@skynav.com.tw

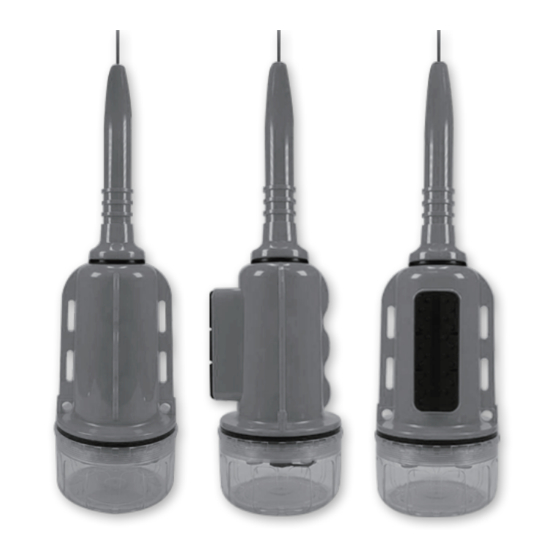

AT-108 is a fully certified Type 1 AIS Aids to Navigation buoy tracker.
This device has some optional user activated functionality which may
not be permitted in some countries. If you are in any doubt, please
check with your local authorities.
Do not charge it over 6 hours.
Stay away from fire.
Do not crash by Human negligence.
What do I need?
The tracker, Transparent cover, Rubber, VHF antenna, Charger
The tracker
Transparent cover
Rubber
Charing
Turn OFF the tracker while charging.
Input: AC100~240V, 50/60Hz
Output: DC13.1V/1A
Charging (red) / Fully charged (green)
Take 4~5 hours for charging, return ON the tracker to make sure
the light flash 9~10 times.
Software setting
Download and install the software on PC.
Connect the supplied USB cable to the AIS tracker and PC.
Open the software and choose the right comport and required
model of the device.
Made in Taiwan
Warning
Notifications
VHF antenna
Charger
Rubber
RECYCLABLE
PACKAGING
AT-108 AIS AtoN Buoy Tracker
Plug in the data cable. Turn on AT-108.
1 2
Start the AIS BUOY Tracker software.
4
5 Password:1234, choose the right comport and click the connect (Green signal).
6 Key in your MMSI, Name (17chacators) and select Interval.
Key in the information of your marine equipment.
7
(the blue point is the position of our tracker.)
8 Click the "Set".
9 Click the "Query" to check is the information set up correctly below.
If yes, Click the "Exit".
10
Connect to PC by USB.
3
