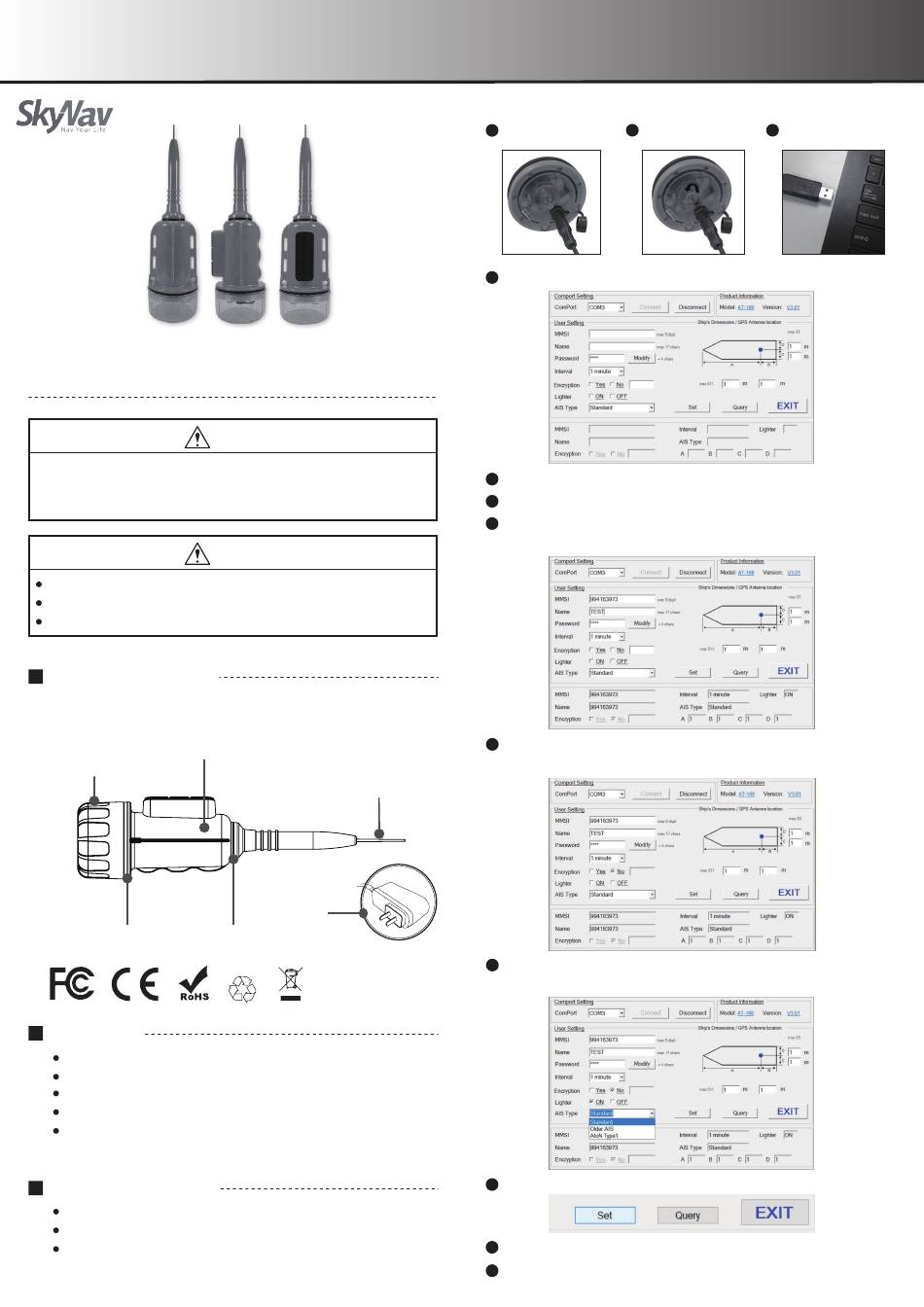

SKYNAV AT-100 Series User Manual

v1.2.3.2022-100
User Manual
SKYNAV Technology, Inc.
ADD 6F., No105, Xicheng Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C)
Tel:886-2-26870869 / Fax:886-2-26870096
www.skynav.com.tw / service@skynav.com.tw
This device has some optional user activated functionality which may
not be permitted in some countries. If you are in any doubt, please check
with your local authorities.
Do not charge it over 6 hours.
Stay away from fire.
Do not crash by Human negligence.
What do I need?
The tracker, Transparent cover, Rubber, VHF antenna, Charger
The tracker
Transparent cover
Rubber
Charging
Turn OFF the tracker while charging.
Input: AC100~240V, 50/60Hz
Output: DC13.1V/1A
Charging (red) / Fully charged (green)
Take 4~5 hours for charging. Please turn ON the tracker to make sure
the light flash up to 9 times.
Software setting
Download and install the software on PC.
Connect the supplied USB cable to the AIS tracker and PC.
Open the software and choose the right
model of the device.
Made in Taiwan
Warning
Notifications
VHF antenna
Charger
Rubber
RECYCLABLE
PACKAGING
and required
COM Port
Plug in the data cable. 2 Turn on the tracker.
1
4 Start the tracker setting software.
5 Choose the right COM Port and click the "Connect".
6 Enter the MMSI, Name (17chacators) and select Interval, Message.
7 Enter the information of your vessel or buoy.
(The blue point is the position of our tracker.)
8 Select the Encryption function and enter the encrypt code.
(The encrypt code should same with your AIS transponder.)
9 Select AIS type. (Standard is for vessel ; AtoN is for buoy ;
Older AIS is for vessel with older chartplotter it can't receive Name of vessel.)
Click the "Set".
10
Click the "Query" to check is the information set up correctly done.
11
If yes, Click the "Exit".
12
AT-100 series AIS Tracker
3 Connect to PC by USB.
