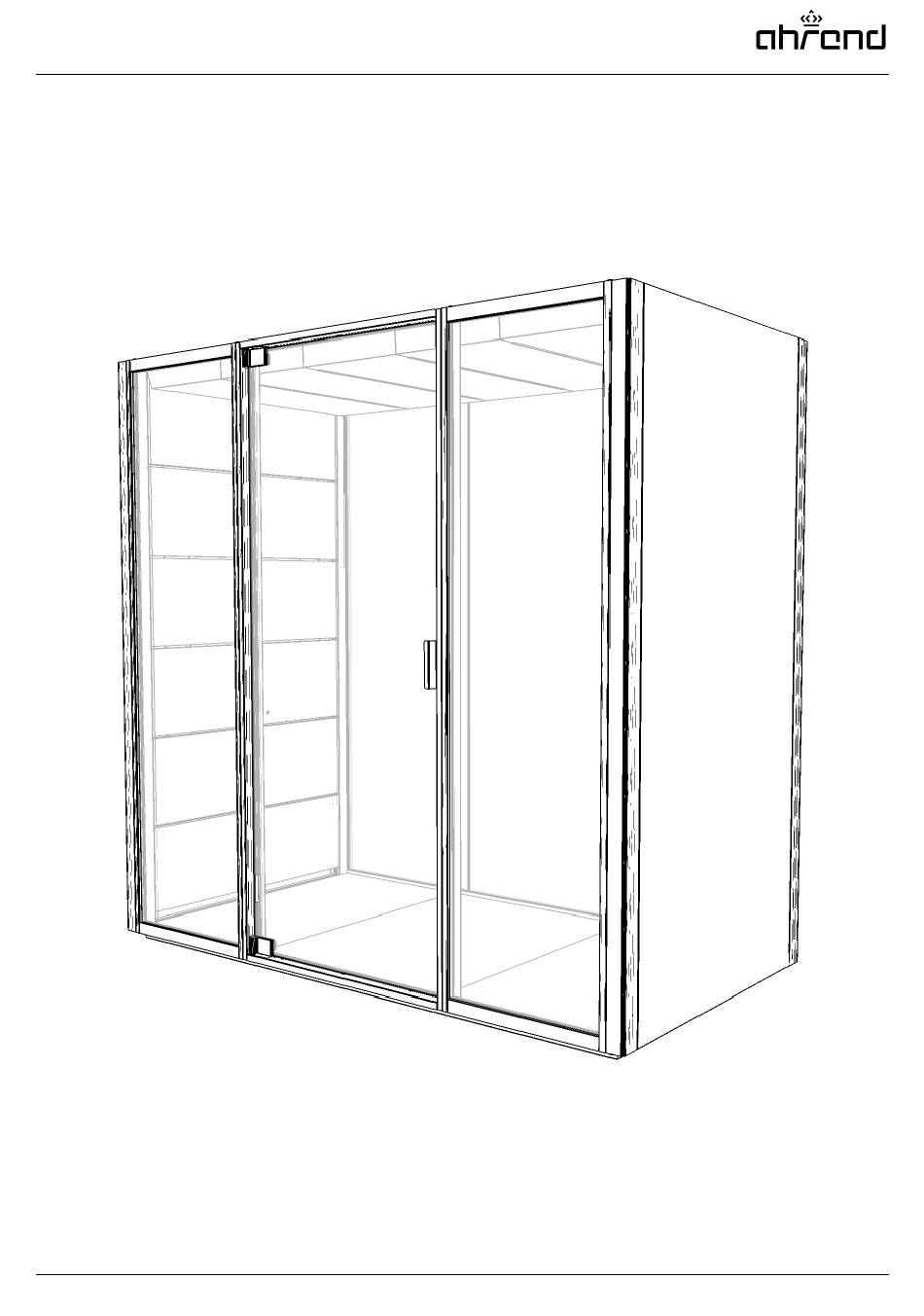

- Page 1 Ahrend Qabin CHAT This Manual will help you build the perfect solution for a comfortable conversation... Page 1...
-
Page 2: Package Contents
Ahrend Qabin CHAT Package contents Floor x 1 Right wall x 1 Left wall x 1 Ceiling x 1 Column R x 1 Column L x 1 Installation Hardware The brands of Royal Ahrend Fan x 2 Components x 2... - Page 3 Ahrend Qabin CHAT Tools needed Socket wrench SW10 Powertool Hexagon SW8 Levelling instrument Ratchet wrench M10 Rolling tool Flat head screwdriver Glass carrier x 2 Glass cleaner Rubber hammer Page 3...
- Page 4 Place & adjust the floor Confirm placement and make sure the floor is perfectly level Tools needed Flat head screwdriver Levelling instrument Position of door hinge Use a flat head screwdriver to make sure the Make the floor level wheels are off the floor Page 4...
- Page 5 Place the left wall frame on the floor Pay attention to front and back direction of the aluminum profiles Tools needed Remove all fabric panels to reduce the weight of the wall Ratchet wrench M10 Insert the left panel in the correct position Use ratchet wrench to fasten 4 x PCS M10 hex screw Ratchet wrench M10...
- Page 6 Place the right wall frame on the floor Pay attention to front and back direction of the aluminum profiles Tools needed Remove all fabric panels to reduce the weight of the wall Ratchet wrench M10 Insert the left panel in the correct position Use ratchet wrench to fasten 4 x PCS M10 hex screw Ratchet wrench M10...
- Page 7 Place door profiles Pay attention to the left and right position of the door profiles Tools needed Ratchet wrench M10 Magnet Insert the door pro les in the correct position Use a ratchet wrench to fasten 2 x PCS M10 hex screw Ratchet wrench M10 Page 7...
- Page 8 Place the ceiling on the box Pay attention to the front and back direction Tools needed Hexagon SW8 Insert the ceiling in the correct position Use a hexagon to fasten 10 x M10 Hexagon SW8 Page 8...
- Page 9 Insert the fabric panel Insert the fabric panel into the left wall frame Pay attention to the bottom fabric panel is different from other panels The other fabric panel The bottom fabric panel Page 9...
- Page 10 Insert the fabric panel Insert the fabric panel into the right wall frame 1.Pull cable over the fabric panel 2.Connect cable with the switch 3.Connect the power plug Page 10...
- Page 11 Install the panel under the top frame Pay attention to the installation sequence and the cables in the panel Tools needed Socket wrench SW10 Control box This cable with DC connects LED light This cable with molex 4-pin connects fan This cable with molex 6-pin connects control panel AC GST cable Push the panel A into the top frame and...
- Page 12 Install the panel under the top frame Install panel B1 ＆ B2 after installing panel A Tools needed Socket wrench Extend the AC cable and DC cable Extend the cable to connect the power supply and the lamps AC cable and DC cable LED light cable Use a socket wrench to fix panel B1, B2 Connect cables to the lights...
- Page 13 Install the panel under the top frame Install panel C1 ＆ B2 after installing panel B1 ＆ B2 then use a socket wrench to fix panels C1 ＆ C2. Connect cables Tools needed Socket wrench Cable through the panel C2, connect cable AC and cable DC then push into the ceiling Fix the U-shaped clip and Embed lamps...
-
Page 14: Install Fans
Install fans Connect cable Install fans Page 14... - Page 15 Place back side glass panels It is important to take your time and tape the glass panels correctly Tools needed Glass carrier x 2 Position fillers Place two fillers per glass panel Make sure the fillers are horizontal Page 15...
- Page 16 Place back side glass panels It is important to take your time and tape the glass panels correctly Tools needed Glass carrier x 2 Place tape on panel 1 then install panel 2 and so forth Install glass panel Keep panels straight while closing gap Page 16...
- Page 17 Positioning the glass panels Ensure this step is done properly to guarantee a correct installation of the Qabin Chat Tools needed Glass carrier x 2 Place fillers at postion A This is an important step! It is important to place an equal amount of fillers on position A.
- Page 18 Secure glass with locking profile After this step the glass panels are secure Tools needed Rolling tool Glass cleaner Rubber hammer Click the profile in place Rubber hammer Use a rolling tool to push the rubber between glass and profile (Please pay attention to the direction of the rubber) Rolling tool Use glass cleaner on glass for easy installation...
- Page 19 Place glass panels front side Glass panels are the same size. Move the glass panels from the corners towards the door. They need to slide inside the door profile Tools needed Glass carrier x 2 Position fillers Place fillers per glass panel Make sure the fillers are horizontal Page 19...
- Page 20 Positioning the glass panels Ensure this step is done properly to guarantee a correct installation of the Qabin Chat Tools needed Glass carrier x 2 Place fillers at postion A (between glass and frame) This is an important step! It is important to place an equal amount of fillers on position A.
- Page 21 Secure glass with locking profile After this step the glass panels are secure Tools needed Rolling tool Glass cleaner Rubber hammer Click the profile in place Rubber hammer Use a rolling tool to push the rubber between glass and profile (Please pay attention to the direction of the rubber) Rolling tool Use glass cleaner on glass for easy installation...
- Page 22 Place the door on the bottom hinge pin Test the bottom hinge height without the glass first, the gap should be around 2-3mm from the floor. Ensure the hinge is aligned with the bottom of the glass before tightening the screws. Tools needed Powertool Glass carrier...
- Page 23 Assemble the top hinge to the glass Check if the glass door is vertical. If not, then loosen screws, re-align and try again. Tools needed Powertool Glass carrier Install the top hinge to the glass while you connect the top hinge Connect the hinge at the bottom of the door Page 23...
- Page 24 Install the floor filler plate + carpet assembly Middle Right Left Install the carpet on the left and right sides diagonally first Install the middle carpet Page 24...
- Page 25 Finish Page 25...
