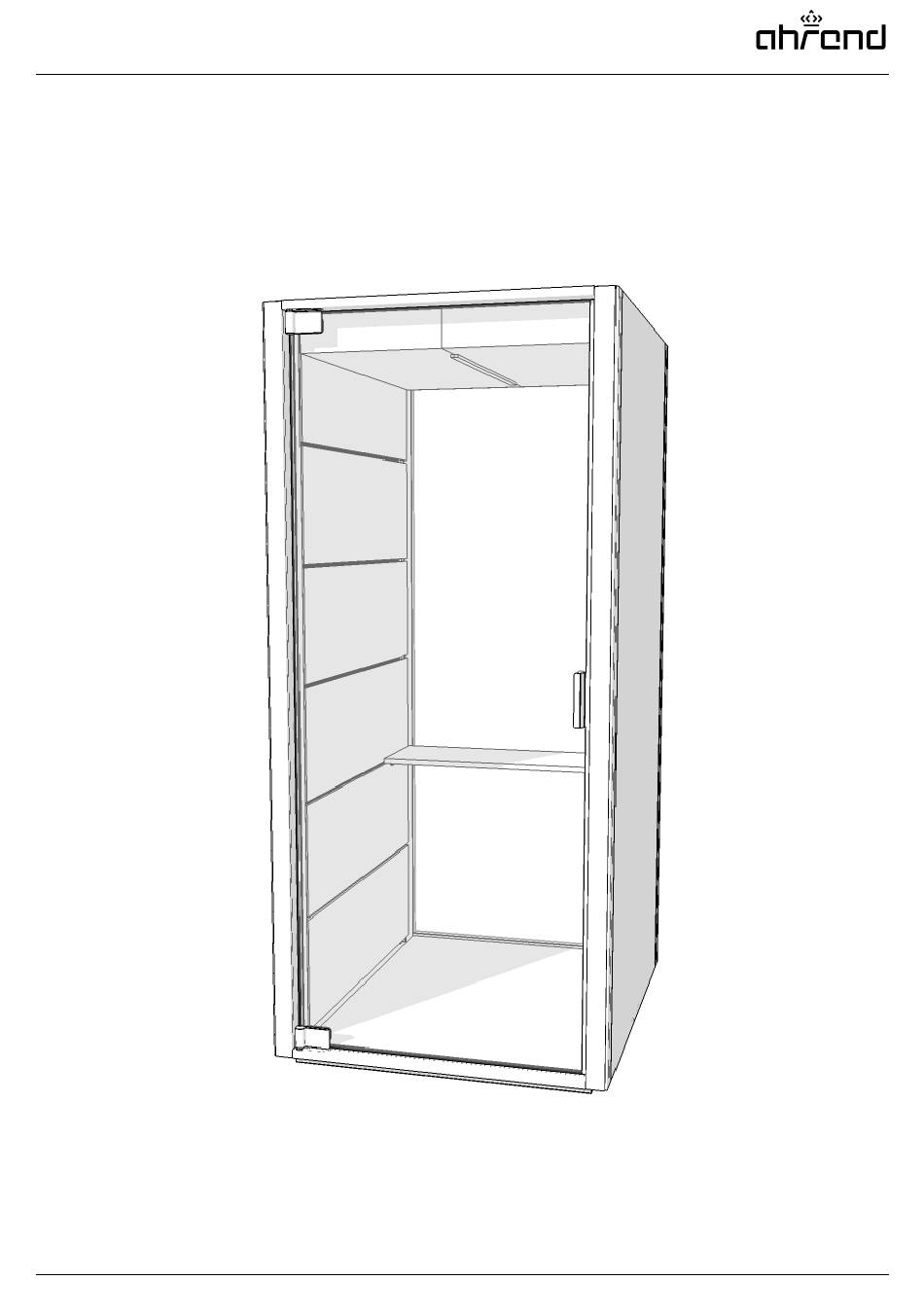

- Page 1 Ahrend Qabin CALL This Manual will help you build the perfect solution for a comfortable conversation... Page 1...
-
Page 2: Package Contents
Ahrend Qabin CALL Package contents Floor x 1 Right wall x 1 Left wall x 1 Ceiling x 1 Column R x 1 Column L x 1 Installation Hardware The brands of Royal Ahrend Fan x 2 Components x 2... - Page 3 Ahrend Qabin CALL Tools needed Socket wrench SW10 Powertool Hexagon SW8 Levelling instrument Ratchet wrench M10 Rolling tool Flat head screwdriver Glass carrier x 2 Glass cleaner Rubber hammer Page 3...
- Page 4 Place & adjust the floor Confirm placement and make sure floor is perfectly level Tools needed Flat head screwdriver Levelling instrument Position of door hinge Use flat head screwdriver to make sure wheels Make floor level are of the floor Page 4...
- Page 5 Place the left wall frame on the floor Pay attention to front and back direction of the aluminum profiles Tools needed Remove all fabric panels except the top panel to reduce the weight of the wall Ratchet wrench M10 Insert the left panel in the correct position Use a ratchet wrench to fasten 4 x PCS M10 hex screw Ratchet wrench M10...
- Page 6 Place the right wall frame on the floor Pay attention to front and back direction of the aluminum profiles Tools needed Remove all fabric panels except the top panel to reduce the weight of the wall Ratchet wrench M10 Magnet Insert the left panel in the correct position Use a ratchet wrench to fasten 4 x PCS M10 hex screw...
- Page 7 Place the ceiling on the box Pay attention to front and back direction Tools needed Hexagon SW8 Connect AC cable and DC cable, push the connector into the ceiling Use a hexagon to fasten 8 x M10 Hexagon SW8 Page 7...
- Page 8 Insert the fabric panel Insert the fabric panel without bottom panel into the left wall frame Pay attention to the bottom fabric panel is different from other panels The other fabric panel The bottom fabric panel Page 8...
- Page 9 Insert the fabric panel Insert the fabric panel without bottom panel into the right wall frame 1.Connect cable with the switch 2.Connect the power plug Page 9...
- Page 10 Place back side glass panels Ensure this step is done properly to guarantee a correct installation of the Qabin CALL Tools needed Glass carrier Position fillers Place fillers per glass panel to make the left and right gaps between Make sure the filler is horizontal...
- Page 11 Secure glass with locking profile After this step the glass panel are secure Tools needed Rolling tool Glass cleaner Rubber hammer Click the profile in place Rubber hammer Use a rolling tool to push the rubber between glass and profile (Please pay attention to the direction of the rubber) Rolling tool Use glass cleaner on glass for easy installation...
- Page 12 Place the door on the bottom hinge pin Test the bottom hinge height without the glass first, the gap should be around 2-3mm from the floor. Ensure the hinge is aligned with the bottom of the glass before tightening the screws. Tools needed Powertool Glass carrier...
- Page 13 Assemble the top hinge to the glass Check if the glass door is vertical. If not, then loosen screws, re-align and try again. Tools needed Powertool Glass carrier Install the top hinge to the glass while you connect the top hinge Connect the hinge at the bottom of the door Page 13...
- Page 14 Install the floor filler plate + carpet assembly Page 14...
- Page 15 Install the bottom fabric panel Page 15...
-
Page 16: Install The Table
Install the table Tools needed Powertool Sitting height Standing height Connect the cable under the desk and Use powertool to screws under the table push the connector into the frame Page 16... - Page 17 Finish Page 17...
