Ahrend Silence Call 2.0 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Manual Silence Call 2.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Silence Call 2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ahrend Silence Call 2.0

Summary of Contents for Ahrend Silence Call 2.0

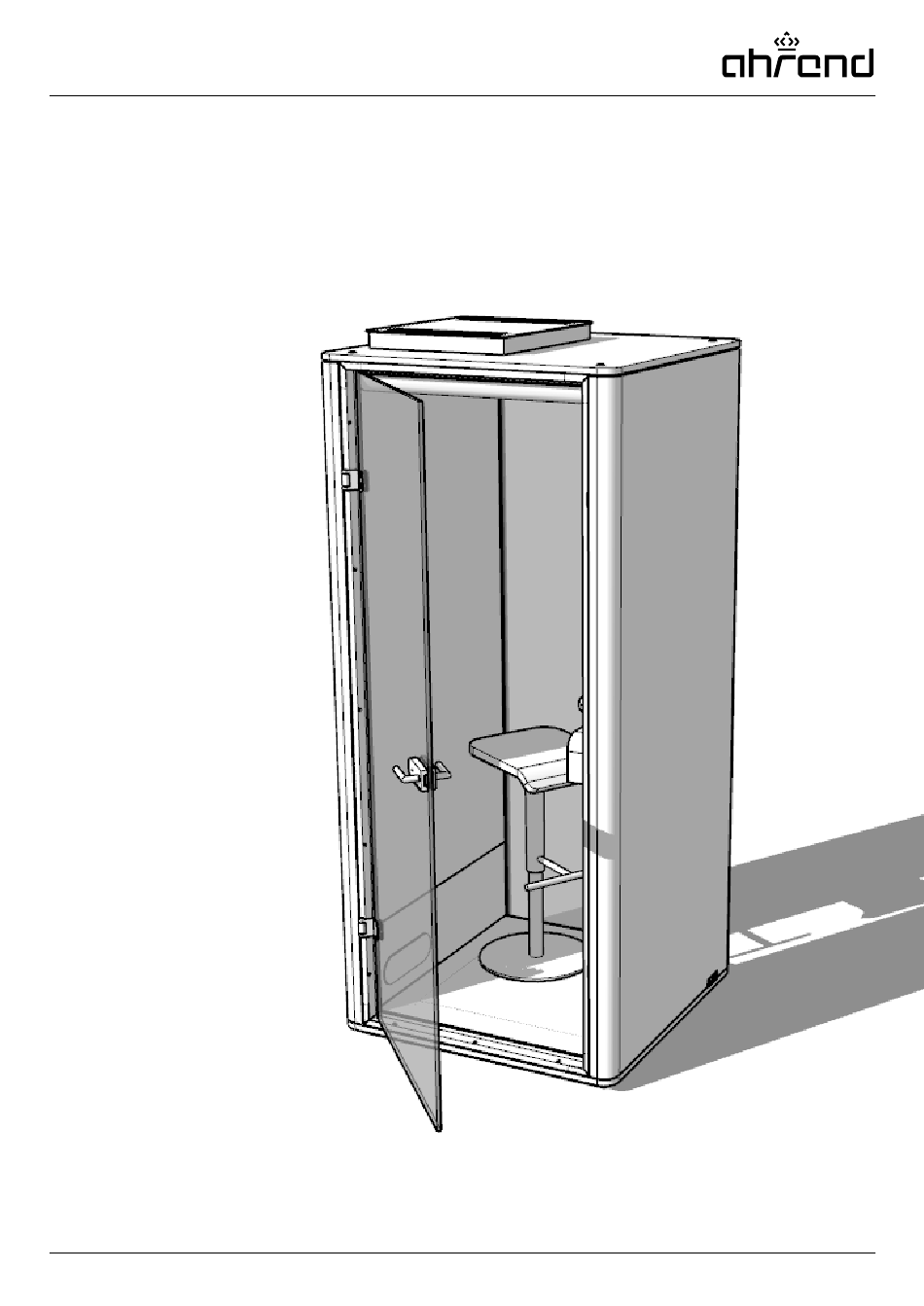

  • Page 1 Manual Silence Call 2.0...
  • Page 2 Tools 2 People SW 3 / 4 / 5 / 6 / 8 8 mm...
  • Page 3 Pre assembly wall 8 x M 10 x 20 Countersunk Page 01...
  • Page 4 Assembly door hinges max 8 Nm max 8 Nm 2 x M6 x 16 (do not use M6 x 14) Page 02...
  • Page 5 Assembly door handle max 8 Nm There is also a manual in the box Page 03...
  • Page 6 Position of the powersocket If you do not use a socket positioned under the Call, continue on page 05. Power from ceiling Power from fl oor Power from wall Page 05 Finish this page Page 05 Powercable Place fl oor over socket! Page 04...
  • Page 7 Adjust the floor Make fl oor level Make sure wheels are of the fl oor Page 05...
  • Page 8 Place EKM wall on the floor Opening fl oor! 4 x M8 x 25 Flathead Page 06...
  • Page 9 Place opposing wall on the floor 4 x M 8 x 25 Flathead Page 07...
  • Page 10 Place the window profile between the side panels Make sure you position the glass profile at the rear! Take notice of the position of the electric panel! Use profi le 33 x 22 mm 43 33 Make sure to place it in the corner Page 08...
  • Page 11 Install window profile to both floor and walls use plas� c fi llers to open up seal, and prevent damage use M5 x 12 for fastening sides use M5 x 12 for LONG fastening bo� om 8 x Loosen bolts slightly 2 x Tighten bolts (ONLY 2!) Page 09...
  • Page 12 Place the door profile between the side panels Take notice of the position of the electric panel! Page 10...
  • Page 13 Install door profile to both floor and walls Use M5 x 40 for fastening sides Use M5 x 12 for LONG fastening bo� om 6 x Tighten bolts Use plas� c fi llers to open up seal, and prevent damage Page 11...
  • Page 14 Place window in profile Place bo� om fi llers fi rst! Posi� on of Fillers Use Fillers to LOCK Glass, ALL SIDES! Page 12...
  • Page 15 Click closing profiles on window profile 4 x CLICK profi les Page 13...
  • Page 16 Install rubber profile to seal & lock the window Use cleaner on glass for easy fi t Page 14...
  • Page 17 Position the door in the door profile Page 15...
  • Page 18 Install the hinges in the door profile Place hinge in opening doorframe 2 mm Spacing (top & bo� om) 6 x Tighten bolts Page 16...
  • Page 19 P a g e 1 7 Adjust the door 6 mm 4 mm Use Fillers 4 mm 6 x Loosen bolts 6 x Tighten bolts...
  • Page 20 P a g e 1 8 Install the table brackets 6 x Wood screw 5 x 50 Horizontal!
  • Page 21 Connect netbox Plug in 4 x M4 x 12 Page 19...
  • Page 22 Place the felt with opening against the wall Place 2nd felt | SAME HEIGHT Page 20...
  • Page 23 Drop ceiling into location Page 21...
  • Page 24 Place tape on each edge 4 x Tape Page 22...
  • Page 25 Place the table 4 x M6 x 12 (countersunk) Click panel on netbox Page 23...
  • Page 26 Place the floor Ledge window side | NOT door side Open up tape Page 24...
  • Page 27 Place carpet Page 25...
  • Page 28 Place 2 bottom felt panels Page 26...

  • Page 29: Connect Cables

    Connect Cables WHEN CABLE COMES FROM THE BOTTOM OF THE CALL 01 | Black to socket Black White 02 | White from bo� om Call Page 27...
  • Page 30 Connect Cables WHEN CABLE COMES FROM THE BOTTOM OF THE CALL 01 | Pull out connector Connect 03 I Tugg connectors in wall 02 | Plug in connectors Page 28...
  • Page 31 Connect Cables WHEN CABLE COMES FROM THE TOP OF THE CALL Black 01 | Black to socket Black 02 | Black from Top Page 29...
  • Page 32 Connect fan & place ceiling fan wire in this corner 01 | Drop top plate When power from top is being installed, 02 | Connect fan run the cable through the opening of the housing. 4 x M10 x 35 & Washer 18 mm Page 30...
  • Page 33 Place chair Page 31...

  • Page 34: Checklist After Installation

    Checklist after installation 02 | Check for power 01 | Close door, check air fl ow 04 | Take pictures for reference 03 | Check light � mer (10 min) 05 | Clean product 06 | Clean site Page 32...
  • Page 35 Notes...
  • Page 36 Notes...
