Summary of Contents for FRANKLINWH aPower X

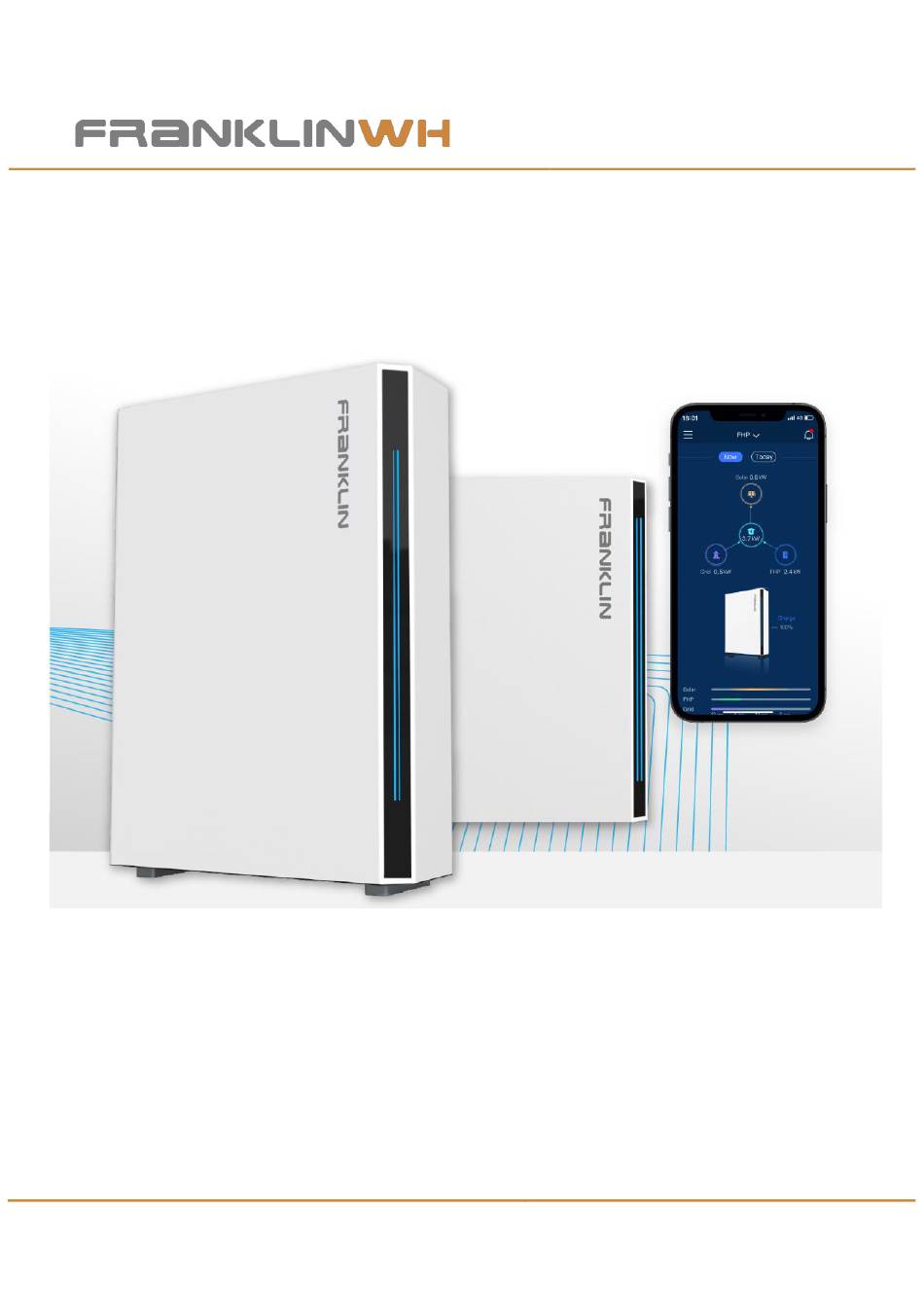

- Page 1 Franklin Home Power Quick Installation Guide Version 1.0 Issued on: September 28, 2022...
- Page 2 All information in this Manual is subject to the copyright and other intellectual property rights of FranklinWH Energy Storage Inc. This manual may not be modified, copied or reproduced, in whole or in part, without the prior written permission of FranklinWH Energy Storage Inc.
-
Page 3: Torque Requirements
PPE must be worn during transfer and installation. WARNING: Please use proper protective measures, such as foam or protective cloth, keep aPower X and aGate X well protected from hard objects that may damage their exterior appearance or body during the handling and installation. Torque Requirements... -
Page 4: Installation Requirements
X. The aPower X and aGate X installation area should be kept in a dry, cool, well-ventilated. The aPower X and aGate X installation area should be protected from access by children and away from any source of heat and/or fire, water, flammable, explosive materials, dust, smoke, uneven, and grassland or soft ground. -
Page 5: Installation Method
X to the ceiling. When the aPower X is mounted on the wall, the recommended distance between the bottom of mounting bracket and the ground is 19.7 in. (0.5m), but not exceed 54.25 in. (1.38m). The maximum distance between the switch button on the aPower X and the ground shall not exceed 90 in. - Page 6 Avoid drilling holes in the water pipes and cables buried in the wall. WARNING: ➢ Cover the aPower X top heat dissipation hole to protect from gravel dust during drilling. ➢ Final installation method and spacing to comply with licensed Structural Engineering Design.
- Page 7 QUICK INSTALLATION GUIDE (FHP) Introduction to the aGate X aPower Wireless terminal module Solar module aGate X power terminal Smart Circuit switch terminals Reserved generator relay location Grid relay WARNING: Generator The power sources assembly terminal must be connected to FHP at the Grid terminal corresponding ports.
- Page 8 QUICK INSTALLATION GUIDE (FHP) Remove the Inner Panel and Door from the aGate X • Remove the Inner Panel Use a #3X4” Phillips head screwdriver or an electric screwdriver with a Phillips head cross screw bit. Turn the 6 combination screws fastening the inner panel counterclockwise to remove the screws.
- Page 9 X. DANGER: Avoid drilling holes in the water pipes and cables buried in the wall. WARNING: Cover the aPower X top heat dissipation hole to protect from gravel dust during drilling.
- Page 10 QUICK INSTALLATION GUIDE (FHP) Remove some aPower X accessories ● Open the aPower X wiring compartment cover, and remove the 3 external cables. Open Clip and pull it out ● Remove the water-proof lock using an adjustable wrench (turn the lock nut counterclockwise until the lock is removed).
- Page 11 When installing the bracket, each bolt needs to add an M6 spacer. WARNING: Cover the aPower X DANGER: Avoid drilling holes top heat dissipation hole to protect in the water pipes and cables from gravel dust during drilling. buried in the wall.
- Page 12 QUICK INSTALLATION GUIDE (FHP) Breaker and Optional Parts • Standard configuration • Full configuration Generator Module (optional) Smart Circuits Module (optional)
-
Page 13: Communications Wiring
QUICK INSTALLATION GUIDE (FHP) Communications Wiring • Connect a Com Kit (4G & Wifi) cable to Activate the aGate X commissioning functions. WARNING: Wireless module Use only the USB cable Com Kit supplied with the (4G & Wifi） EMS module equipment. - Page 14 QUICK INSTALLATION GUIDE (FHP) • Communications connection between the aGate X and the aPower X When the length of the communications cable between the aGate X and the aPower X is less than 98ft (30m), a communications cable can be used to connect.
-
Page 15: Power Wiring Diagram
QUICK INSTALLATION GUIDE (FHP) Power Wiring Diagram • Solar Inverter Connections to the aGate X WARNING: The solar circuit breaker is ➢ the only interface for the solar inverter to be connected to the aGate X. Neutral The aGate X has a built-in ➢... - Page 16 QUICK INSTALLATION GUIDE (FHP) • The Grid AC Power Connections to the aGate X (Optional） L1 L2 Neutral Ground Neutral Ground • Generator Power Connections to the aGate X (Optional) Neutral Neutral Ground Ground DANGER: After installation of the grid breaker and generator breaker, L1 and L2 will swap sides for connections (L2 is located to the left while L1 is to the right).
- Page 17 QUICK INSTALLATION GUIDE (FHP) • aPower X connections to the aGate X (One aPower X unit) Neutral Ground...
- Page 18 QUICK INSTALLATION GUIDE (FHP) • aPower X Connections to the aGate X (2 to 3 aPower X units) Combiner box Neutral Ground aGate X aPower X 1 aPower X 2 aPower X 3 Connection Connection Connection WARNING: The WAGO terminals of each aPower X can only be connected using...
- Page 19 There are two (2) pairs of lugs on the backup load terminals of the aGate X. When connecting more than 3 aPower X units to the aGate X, use one (1) pair for the aPower X input from the combiner box and one (1) for the backup main panel output.
- Page 20 QUICK INSTALLATION GUIDE (FHP) Re-install the aPower X cover ① ② ③ Close Insert Install aPower X grills ① ② aGate X Panel re-installation ① Two installers will be needed to re-install ② Remove the knockouts. the aGate X door.
- Page 21 Main Panel … aPower X aPower X aPower X N(N≤15) DANGER: Avoid drilling holes in the water pipes and cables buried in the wall. WARNING: Cover the aPower X top heat dissipation hole to protect from gravel dust during drilling.
- Page 22 QUICK INSTALLATION GUIDE (FHP) FHP System Activation with Smartphone App Step 1: Search for FranklinWH and download the app. Step 2: Homeowners sign up with assistance from installation service providers. NOTE: The images provided in this document are for demonstration purposes only.
