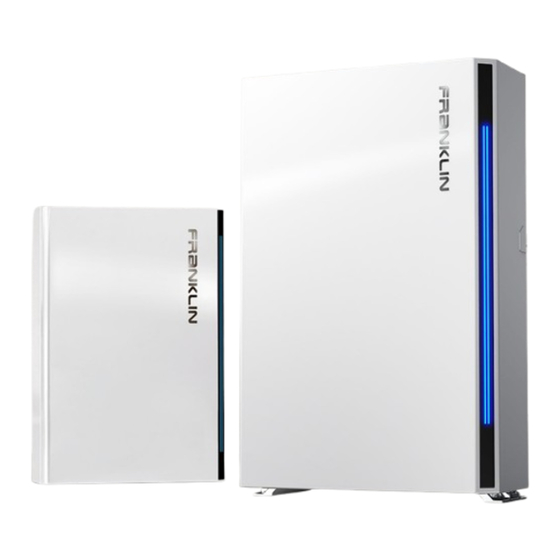

- Page 1 FranklinWH System User Manual aPower 2, SKU: APR-10K15V2-US aGate X, SKU: AGT-R1V2-US Dec. 16, 2024...
- Page 2 All information in this Manual is subject to the copyright and other intellectual property rights of FranklinWH Energy Storage Inc. This manual may not be modified, copied or reproduced, in whole or in part, without the prior written permission of FranklinWH Energy Storage Inc.
- Page 3 FranklinWH System User Manual FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 System Components ............................... 9 Operating Modes ..............................13 Key Functions ................................ 14 System Operation ............................. 21 Startup Steps ................................21 Remote Operation and Monitoring Using FranklinWH App ................ 23 Common Problems and Solutions ......................24 Technical Support ............................. 27 Emergency Response ..........................28...
- Page 5 Both the aGate and aPower are electrical devices. Please read this entire document to ensure the proper use of the FranklinWH system. Failure to follow this may void the warranty. Please strictly follow the safety instructions in this Manual during operation, otherwise it may result in equipment malfunction, electrical shock, serious injury or death.
- Page 6 If the aPower battery is leaking electrolyte, smoking, or on fire, if it is safe to do so, disconnect the AC power from the FranklinWH system and turn off the aPower switch on the side of the aPower to stop the aPower from charging and discharging.
- Page 7 Do not use the aPower or aGate if there is functional or cosmetic damage noticed after unboxing (except for slight paint damage). Contact after-sales service for support. The operation of the FranklinWH system requires an internet connection. Extended offline operation may result in a voided warranty. Please refer to FranklinWH Support for information.
- Page 8 FranklinWH System User Manual During use, storage, and transport of FranklinWH equipment: DANGER: Keep away from flammable and explosive materials. DANGER: Additional protective measures should be taken to protect equipment from access by children. WARNING: Keep away from dust and smoke.
- Page 9 To meet warranty requirements, the FranklinWH system must be installed and operated properly according to the instructions in related FranklinWH documents. To secure the full warranty (aGate: 12 years, aPower 2: 15 years), the FranklinWH system must be reliably connected to the internet to access remote services provided by FranklinWH.
- Page 10 Keep the aPower away from direct sunlight. • Keep all FranklinWH equipment in an environment with acceptable temperature and • humidity. Clean the equipment surface using a soft cloth. If water is needed, please make sure •...
- Page 11 FranklinWH System User Manual System Overview The FranklinWH system is a whole home energy solution for residential users. The two key components are the aGate, an energy management unit for whole-home power control, and the aPower, an energy storage battery with a built-in inverter. Users can monitor and operate their FranklinWH systems remotely via the FranklinWH mobile phone app.
- Page 12 Connect the backup loads (except for the Smart Circuit loads) to the backup port of the aGate, and connect the non-backup loads (non-essential loads) to the non-backup ports of the aGate. If the grid fails, the FranklinWH system will only power the backup loads during the outage.
- Page 13 (PV) panels or electrical load sub-panels are connected in a way that does not allow the aGate to properly measure the power flow through the internal CTs. ACCY-CT200V2-US FranklinWH provides a Split CTs solution to aggregate the sub-panel metering into the FranklinWH system.
- Page 14 The Smart Circuits ACCY-SCV2-US Module is an optional component of the aGate. The FranklinWH system can connect to a household backup power generator. This Generator Module connection is an optional component of the aGate.
- Page 15 NOTE If the FranklinWH system is likely to work off the grid for a long time (e.g., due to any adverse weather condition, inspection, or intentional shutting down the grid power supply when the house is idle), it is necessary to connect the high- power devices that may automatically start up, such as an EV charger, to the Smart Circuits.
- Page 16 FranklinWH System User Manual aPower Overview aPower switch Heat sink Wiring compartment LED strip aPower switch: Starts up or shuts off aPower power transfer. LED strip: Turns on when the aPower is started, indicates the battery power level. ...
- Page 17 If the SOC value of the backup reserve is set 100 %, the FranklinWH system will start charging to full power (aPower battery actual SOC value = 100 %) from solar and does not discharge.
- Page 18 The grid, solar system, generator (if connected) and FranklinWH system will power the household loads. Photovoltaic Over-Generation Protection If the FranklinWH system is connected to the grid but is not allowed to export solar production to the grid, or when the home is off-grid, the photovoltaic over-generation...
- Page 19 When the FranklinWH system is off-grid, the solar system will automatically disconnect as soon as one aPower battery in series is full (SOC = 100 %). After the FranklinWH system meets the recovery conditions, the solar system automatically connects to it and outputs power.
- Page 20 EVs), users may set a time plan for economic power usage through the FranklinWH App. One or two time periods may be set for every 24 hours, to achieve the most economical use of electricity for Smart Circuits.
- Page 21 FranklinWH system will take over as the power source. This helps to manage the noise produced by the generator, so that customers may enjoy a quieter home...
- Page 22 PV on the load side of the FranklinWH system Installation of an aPbox is required to meter the production of and cutoff the connection to an individual PV system installed on the load side of the FranklinWH system due to: Existing constraints, such as the location of the PV system and the aGate, •...
- Page 23 LED Light Strip Color Settings You can customize the color and brightness of the LED light using the FranklinWH App. Download FranklinWH App and sign in with your FranklinWH account, then go to Settings > aPower LED.
- Page 24 FranklinWH System User Manual The 42 LED beads of the light strip indicate the SOC ranging from 0% to 100%, lighting up in a bottom-to-top sequence. Status LED light behavior Descriptions 5%＜SOC≤100%: The LEDs breathe at a 10 second cycle...
- Page 25 FranklinWH System User Manual System Operation The FranklinWH system can be operated locally or remotely, but local operation is preferred for maintenance and inspection. It is recommended that the FranklinWH system be restarted and maintained locally. During maintenance or inspection, local operation must be used to ensure circuit safety.
- Page 26 FranklinWH System User Manual Shutdown Steps 1. Turn off the grid breaker if connected to the grid. 2. Press the aPower switch on all aPower batteries to the OFF position (extended, flush with the case), and each LED strip will go out.
- Page 27 It allows personalized household electricity plans to make your life easier. The home screen of the FranklinWH App displays real-time data from the FranklinWH system to help you understand the working status of your home power system. Please refer to the FranklinWH App User Manual for more information.
- Page 28 FranklinWH System User Manual Common Problems and Solutions Problems Solutions Check if the aGate EMS module is working normally: Check that the aGate power switch is ON (closed) and the indicator is lit. aPower LED on the Check if the aGate is connected to an external EPO aPower keeps flashing (Emergency Power Off) switch.
- Page 29 During black start, please turn off all household iii. app. loads to ensure that FranklinWH system can be started normally. Manual black start is also an alternative to automatic. Manual Start: Turn off the aPower switch on the side of aPower (extended, flush with case), and turn it back on (depressed) 20 seconds later.
- Page 30 FranklinWH System User Manual Problems Solutions Check if the grid is available. Check if there are large electrical devices running. If yes, shut down the unessential devices to allow the system to operate normally. Due to the special characteristics of the battery, iii.
- Page 31 FranklinWH System User Manual Technical Support For further support, please contact the installer or FranklinWH service team at: FranklinWH Support. Please be prepared to provide the following information before you contact FranklinWH: Owner name • Your preferred desired contact method (name, phone number, email) •...
- Page 32 If the wiring sections of an aGate or aPower are submerged, please keep away • from the water. It is an electrocution hazard. Drain the water to protect your FranklinWH equipment, if it is safe and possible. • If water reaches the battery, please call your installers for an inspection. If the •...
