Summary of Contents for FRANKLINWH aPower X
- Page 1 X Storage and Transportation Guide Version 1.0 Issued on: October 11, 2022...

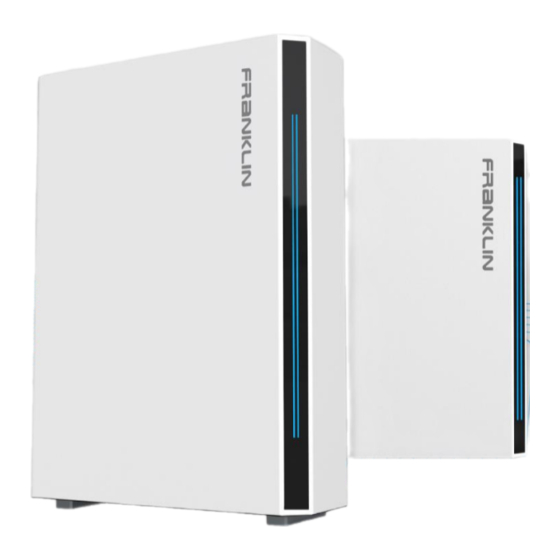

- Page 2 Product Information Franklin Home Power (FHP) is composed of aPower, aGate and other electrical components, and this document applies only to the following products: aPower X and aGate X. FranklinWH Energy Storage Inc. (“FranklinWH”) reserves the right to make any improvements to the product, and the contents in this document shall be subject to updates without further notification.
-
Page 3: Table Of Contents
X Storage and Transportation Guide CONTENT Purpose .............................. 1 Product Information .......................... 1 Safety ................................1 Product Parameters............................. 2 Packaging ............................2 Dimensions..............................2 Packing List ..............................3 Handling ............................. 4 Storage ............................... 6 Transportation ........................... 6 General Guideline for Transportation...................... 6 Truck Transportation .......................... -
Page 4: Purpose
In accordance with the UN38.3 certification rules, the product falls in the category of UN3480, as described in detail below. aPower X is an AC-coupled LFP-based energy storage product. Please refer to the Safety Data Sheet for details of the chemical components. All transportation carriers and cooperative dealers should follow their local laws and regulations in relation to operation safety. -
Page 5: Product Parameters
Depending on product delivery time, details may appear slightly different. Dimensions The packaging plan of the aPower X is as shown above. Double protection measures are taken to protect aPower X energy storage system during transportation, storage, and handling. The aPower X energy storage system and its accessories are placed on a dedicated wooden crate, covered by a corrugated cardboard box, fastened by packing straps (left figure), and enclosed in a wooden box (right figure). -
Page 6: Packing List
51.57 in. (1310mm) 36.61 in. (930mm) 21.46 in. (545mm) 39.37 in. (1000mm) 30.71 in. (780mm) Packing List Parts and materials in the package include. • aPower X • aPower X accessories (left grating, right grating, top grating and mounting bracket, 2 bolts). -
Page 7: Handling
• If a forklift is used, please handle at most 2 aPower X units at a time. • Take care during the handling process to protect the units from impacts, falls, collisions, etc. - Page 8 X Storage and Transportation Guide Length Width Height 51.57 in. (1310mm) 36.61 in. (930mm) 42.91 in. (1090mm) 39.37 in. (1000mm) 30.71 in. (780mm) Maximum stacking in 4 layers for storage: Length Width Height 51.57 in. (1310mm) 36.61 in. (930mm) 85.83 in.
-
Page 9: Storage
X Storage and Transportation Guide Storage Due to the combination of electronic and lithium ion components in the aPower X units, the following guidelines are required for safe storage. Compliance with the storage and transportation requirements will ensure the aPower X stays within the warrant y parameters. -
Page 10: Truck Transportation
Do NOT place any heavy objects on the product package, as that may damage the protective wooden box or the product. • The maximum stacking height is 4 units, i.e. at most 4 aPower X energy storage systems stored in wooden boxes may be vertically stacked. Truck Transportation... -
Page 11: Damaged Parts
X Storage and Transportation Guide Damaged Parts If the product is found damaged, please attach a high-voltage or electric shock warning sign to the product, before handling the packages and/or other parts in the package. Please visit the official...
