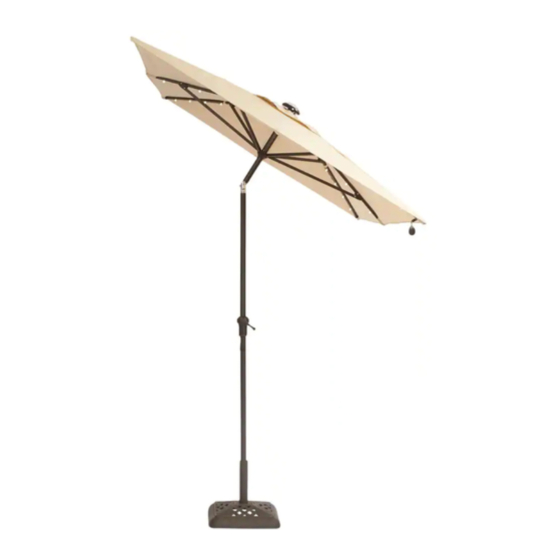

10 ft x 12 ft rectangular offset umbrella (18 pages)
Summary of Contents for HAMPTON BAY YJAUC-171L-C
Page 1
. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Product Caution ...............2 Package Contents ..............3 Assembly ................4 Safety Warning.................2 Operation ............... 5 Warranty ................. 2 What is Covered ...............2 Care and Cleaning............7 Maintenance..............8 What is Not Covered ..............2 Safety Information...
Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to complete the assembly of this product. PACKAGE CONTENTS Part Description...
Assembly Assembling the solar receiver and the umbrella pole to the umbrella shade Attach the solar receiver (C) to the umbrella shade (A) by turning the solar receiver (C) clockwise until fully tighten . Insert the plug into the plug hole of the solar receiver (C). Place the umbrella shade (A) over the umbrella pole (B).
Operation Opening the umbrella Shake the umbrella fabric before opening the umbrella. Slowly turn the crank clockwise to open the umbrella. Press the ON/OFF switch to turn the LED light on or off. ON-OFF HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
Page 6
Operation (continued) Tilting the umbrella To tilt the umbrella, push the button located on top of the umbrella shade (A). PUSH...
Operation (continued) Closing the umbrella Slowly turn the crank located in a counterclockwise direction to close the umbrella. Care and Cleaning For best results, clean the pole with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
Maintenance REPLACING THE LED LIGHTS When the LED light does not work or a LED light cover breaks, replace the LED light or LED light cover with the replacement LED light (D) or replacement LED light cover (E). Gently remove the LED light cover in a counterclockwise direction and pull out the LED light. Insert the replacement LED light (D) and reinstall the replacement LED light cover (E) in a clockwise direction.
Page 9
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use.
