Goodman OTDFPKG-01 Installation Instructions

OTDFPKG-01 OUTDOOR THERMOSTAT
FOR DUAL FUEL PACKAGE
INSTALLATION INSTRUCTIONS
ATTENTION INSTALLING PERSONNEL
As a professional installer, you have an obligation to know the
product better than the customer. This includes all safety precau-
tions and related items.
Prior to actual installation, thoroughly familiarize yourself with this
Instruction Manual. Pay special attention to all safety warnings.
Often during installation or repair, it is possible to place yourself in
a position which is more hazardous than when the unit is in op-
eration.
Remember, it is your responsibility to install the product safely
and to know it well enough to be able to instruct a customer in its
safe use.
Safety is a matter of common sense...a matter of thinking before
acting. Most dealers have a list of specific good safety
practices...follow them.
The precautions listed in this Installation Manual are intended as
supplemental to existing practices. However, if there is a direct
conflict between existing practices and the content of this manual,
the precautions listed here take precedence.
HIGH VOLTAGE
!
D ALL
ISCONNECT POWER BEFORE SERVICING OR INSTALLING
M
THIS UNIT. ULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE
TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR
DEATH.
T
O AVOID POSSIBLE PERSONAL INJURY, USE EXTREME CAUTION IF USING
POWER TOOLS TO REMOVE THE SMALL BREAKER MOUNTING BRACKETS.
BRACKETS MAY QUICKLY ROTATE AND CAUSE INJURY.
INSTRUCTIONS
1. Remove all parts from the OTDFPKG-01 kit. Compare parts
to Table 1 to insure all needed parts are present before pro-
ceeding.
IO-771A
9/2013
WARNING
CAUTION
Webbed Grommet
Cutting Screws
Housing Assembly (contains parts below)
Door
Box
Top
Bottom Screen
Thermostat
Thermostat Harness
Screws
IO-771A Installation Instructions
2. Remove the blower door in order to access the thermostat
plug on the inside of the unit. The harness is labeled "OUT-
DOOR THERMOSTAT".

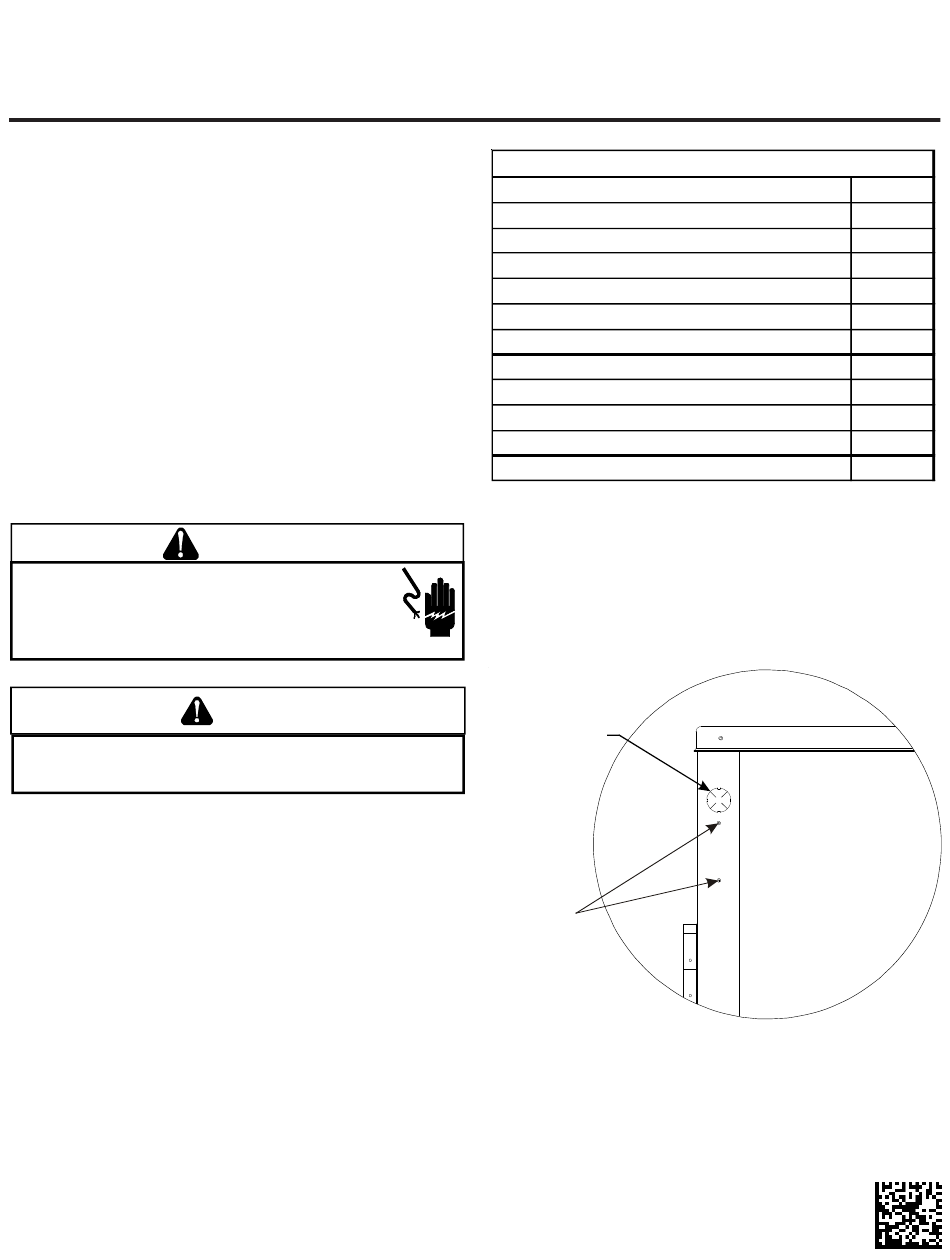

3. Remove the knockout from the duct panel located next to the
blower door (see Figure 1).
REMOVE KNOCKOUT
AND CUT "X" IN
INSULATION
AS SHOWN
T
HE
MOUNTING
DIMPLES
Kit Components
Part Descripton
Table 1
Figure 1
Qty.
1
2
1
1
1
1
1
1
1
6
1
