Summary of Contents for Chauvet DJ SlimPAR Q12 USB

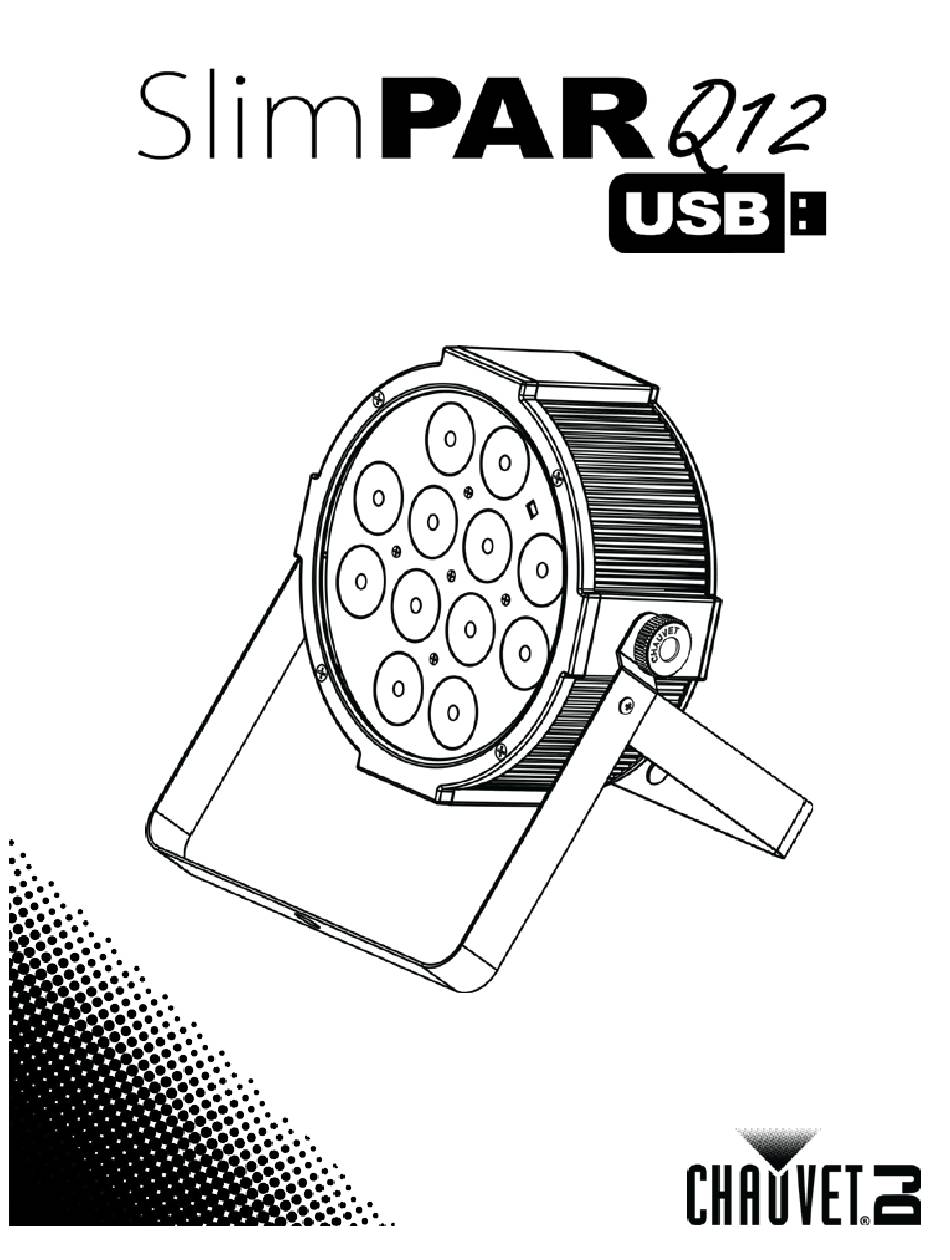

- Page 1 User Manual...
-
Page 2: Table Of Contents
IRC-6 Operation............................ 13 Master/Slave Mode (wired) ......................14 Master/Slave Mode (D-Fi USB) ....................14 5. Maintenance .........................15 Product Maintenance ........................15 6. Technical Specifications ....................16 Returns ..........................17 Contact Us .........................18 Page 2 of 18 SlimPAR Q12 USB User Manual Rev. 1... -
Page 3: Before You Begin
© Copyright 2015 Chauvet & Sons, Inc. All rights reserved. Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, “SlimPAR Q12 USB”, and “D-Fi USB” are registered trademarks or trademarks of Chauvet & Sons Inc. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 4 of 18 SlimPAR Q12 USB User Manual Rev. 1... -
Page 5: Introduction
Back Panel View IR Sensor Lenses Front View WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product. SlimPAR Q12 USB User Manual Rev. 1 Page 5 of 18... -
Page 6: Product Dimensions
Product Dimensions 11.5 in 293 mm 3.6 in 9.7 in 92 mm 247 mm Page 6 of 18 SlimPAR Q12 USB User Manual Rev. 1... -
Page 7: Setup
Product Additional Products You can power link up to 12 SlimPAR Q12 USB products on 120 VAC or up to 21 SlimPAR Q12 USB products on 230 VAC. The power linking diagram corresponds to the North American version of the... -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in Safety Notes. Orientation The SlimPAR Q12 USB may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Operation
Custom static colors Combines red, green, and blue (custom colors) b000–255 A000–255 dIM1 Dimmer speed mode, fast to slow, or off dIM2 dIM3 IR function on or off SlimPAR Q12 USB User Manual Rev. 1 Page 9 of 18... -
Page 10: Dmx Linking
The SlimPAR Q12 USB works with a DMX controller. Information about DMX is in the DMX Linking CHAUVET® Primer, which available from Chauvet website http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf. Set the product in DMX mode to control with a DMX controller. Configuration Connect the product to a suitable power outlet. -
Page 11: Dmx Personality And Starting Address
Address The SlimPAR Q12 USB uses up to 9 DMX channels in an 9-CH DMX mode, which defines the highest configurable address to 504. If you are not familiar with the DMX protocol, download the DMX Primer from www.chauvetlighting.com. -
Page 12: Configuration (Standalone)
Press <ENTER>. The product will only respond to low frequencies of music (bass and drums). To change the sound sensitivity on the SlimPAR Q12 USB, follow the instructions below: Sound Sensitivity Press <MENU> repeatedly until SenS shows on the display. -
Page 13: Irc-6 Infrared Remote Control
The SlimPAR Q12 USB is compatible with the IRC-6 infrared remote control from IRC-6 Infrared Chauvet. To activate IR mode, follow the instructions below: Remote Press <MENU> repeatedly until SEr shows on the display. Control Press <ENTER> to accept. Press <UP> or <DOWN> to select On or OFF. -
Page 14: Master/Slave Mode (Wired)
The D-Fi USB allows a single SlimPAR Q12 USB product (the “master”) to control the Master/Slave actions of one or more SlimPAR Q12 USB products (the “slaves”) without the need of a Mode DMX controller or DMX cables. The master (transmitter) product will be set to operate in... -
Page 15: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. SlimPAR Q12 USB User Manual Rev. 1 Page 15 of 18... -
Page 16: Technical Specifications
Cooling System Thermal 104 °F (40 °C) Convection I/O Connectors Channel Range 3-pin XLR 4 or 9 Product Name Item Code UPC Number Ordering SlimPAR Q12 USB 03031046 781462213947 Page 16 of 18 SlimPAR Q12 USB User Manual Rev. 1... -
Page 17: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). SlimPAR Q12 USB User Manual Rev. 1 Page 17 of 18... -
Page 18: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Page 18 of 18 SlimPAR Q12 USB User Manual Rev. 1...
