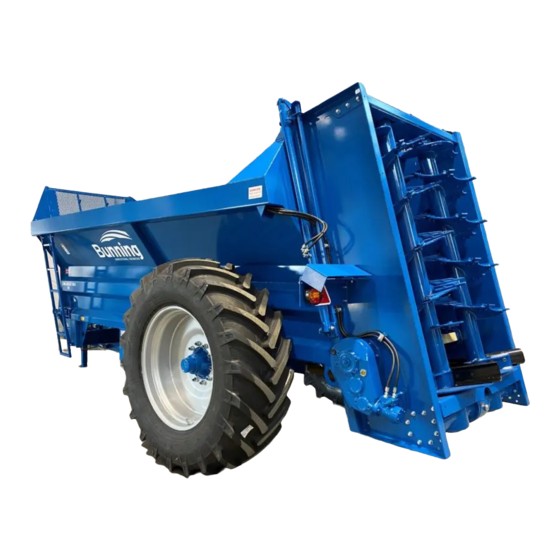

LOWLANDER MANURE SPREADER
INSTRUCTION AND SPARES MANUAL
75-85-90-105-105C-120-150
For spare parts please call:
Telephone:
+44 (0)1362 860352
Fax:
+44 (0)1362 860930
E-mail:
mail@gtbunning.co.uk
Website:
www.gtbunning.co.uk
LOWLANDER MK4 RANGE
Manual Version: 2020 V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LOWLANDER MK4 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BUNNING LOWLANDER MK4 Series

Summary of Contents for BUNNING LOWLANDER MK4 Series

  • Page 1 LOWLANDER MANURE SPREADER INSTRUCTION AND SPARES MANUAL LOWLANDER MK4 RANGE 75-85-90-105-105C-120-150 For spare parts please call: Telephone: +44 (0)1362 860352 Fax: +44 (0)1362 860930 E-mail: mail@gtbunning.co.uk Website: www.gtbunning.co.uk Manual Version: 2020 V1.0...
  • Page 3 DEALERS STAMP Information It is the duty of the operator to ensure that the machine is maintained and operated in accordance with all local and national regulations.
  • Page 5 By providing us with your telephone number or e-mail address you consent to being contacted by these methods. If you do not wish to receive marketing information by these methods from GT Bunning or our business partners, please tick this box.
  • Page 7 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL Bunning Lowlander MK4 Pre-Delivery Inspection sheet The purpose of this document is to ensure that the operator, hirer or owner is fully appraised of all safey guidelines and operating and maintenance methods before taking possession of the machine.

  • Page 8: Table Of Contents

    LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL CHASSIS SERIAL NUMBER ................SECTION & CONTENTS PAGE Preface How To Use This Manual Operating on Public Roads Introduction Disposal Important information EC Declaration of Conformity Machine Overview OPERATING INSTRUCTIONS Hitching to Tractor Coupling of Hydraulic Hoses Handbrake...
  • Page 9 5.14 PTO Shaft Stowage AXLES AND BRAKES Axles & Brakes Arrangements For all brake and axle parts please contact your local dealer or GT Bunning. Hydraulic Brake Systems Air (Pneumatic) Brake Systems Axles & Drawbar Springs Maintenance TYRES AND WHEELS...
  • Page 10 THIS MANUAL IS THE ORIGINAL INSTRUCTIONS All rights reserved. Reproduction of any part of this manual in any form whatsoever without GT Bunning’s express written permission is forbidden. The contents of this manual are subject to change without notice. All efforts have been made to assure the accuracy of the contents of this manual.

  • Page 11: Preface

    The use of spare parts, accessories and additional equipment which is not originally manufactured checked and release by GT Bunning Ltd can have a negative effect on specific design features of the machine and on its operability. This may impair its operating safety, as well as safety at work for the operator and could invalidate warranty.

  • Page 12: Introduction

    LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL INTRODUCTION This manual provides information on the use, adjustment and servicing of the GT Bunning range of Lowlander spreader. Following the advice on the correct maintenance and servicing procedures will ensure maximum performance and a long service life of your machine.

  • Page 13: Ec Declaration Of Conformity

    LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL G.T.BUNNING & SONS LIMITED MANURE SPREADERS Telephone: 01362 860352 Registered Office: Fax: 01362 860930 Smithy House, The Green E-mail: mail@gtbunning.co.uk Gressenhall, Dereham Norfolk, NR20 4DT www.gtbunning.co.uk EC MACHINERY DIRECTIVE 2006/42/EC DECLARATION OF CONFORMITY We hereby certify that the machinery stipulated below complies with all the relevant provisions of the EC Machinery Directive 2006/42/EC &...

  • Page 14: Machine Overview

    LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL MACHINE OVERVIEW DESCRIPTION BODY DRAWBAR STONE GUARD FRONT PILLAR PTO DRIVE LINE FINGER GUARD SUPPORT LEG LADDER WHEEL & TYRE ASSEMBLY AUGER GEARBOX FLOOR DRIVE GEARBOX, MOTOR AND VALVE AUGERS AUTO LAMP ASSEMBLY AXLE PTO STOWAGE Page 9...

  • Page 15: Operating Instructions

    LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL OPERATING INSTRUCTIONS The intended purpose of the vehicle is to tow and spread manure and other materials. HITCHING TO TRACTOR Attach spreader to pick-up hook or static hitch stub. Do not attach to swinging drawbar or pick-up hook in extended position.

  • Page 16: Coupling Of Hydraulic Hoses

    LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL COUPLING OF HYDRAULIC HOSES Fit the two hoses for the floor drive hydraulic motor (one to feed and one for return) to double spool valve on tractor. Choose position of spool lever for ease of control to obtain floor movement to rear.

  • Page 17: Handbrake

    LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL HANDBRAKE The handbrake is a multi-stroke ratchet type. To apply the handbrake give the handle short pumps (a clicking of the ratchet will be heard) until resistance occurs and subsequent tightening of the cable.

  • Page 18: Installation And General Use Of Detachable Spinner Deck

    LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL INSTALLATION AND GENERAL USE OF DETACHABLE SPINNER DECK GENERAL USE The detachable spinner deck is designed purely for wider spread patterns and low application rates of between 1 and 3 tonnes per acre (2 ½ to 7 ½ tonnes per hectare). It must NEVER be used to spread long straw based material or heavy applications beyond 5 tonnes per acre.
  • Page 19 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL REMOVING THE SPINNER DECK Clean all material from spinners and decks. Remove 4 bolts from the flexi coupling. Loosen hook bolts No. 14 and hinge back to clear anchors. Using approved lifting apparatus lift from lower lifting eye on the canopy firstly pulling the bottom of the deck assembly away from rear of spreader to the clear auger blades.
  • Page 20 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL OPERATING INSTRUCTIONS FOR HORIZONTAL BEATERS General use The horizontal beater with spinner discs is designed primarily for wider spread patterns and lower application rates for product such as chicken and turkey manure, however long straw based materials can be spread effectively.

  • Page 21: Weigh Cell Setup Guide - Isocan & Isobus

    1.10.1 BUNNING CUSTOM SETUP This part of the setup is done at the factory and MUST NOT be changed at any time. If required, it must only be performed by an authorised Bunning personnel. 1.10.2 VALVE SETUP It is very important to firstly turn the tractor oil down to 50% in forward and reverse.
  • Page 22 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 1.10.3 WEIGH CELL CALIBRATION MAIN MENU: From the main spread screen, scroll to the FACTORY 1234 (OK) Then icon and PIN: FACTORY MENU: LOADCELL INTERFACES: (OK) FUNCTION: CAN MODULE 1 Check that is set at ⬅➡...
  • Page 23 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 1.11 LOAD CELL DIAGNOSTICS There are several things that can be checked to diagnose load cell issues. 1.11.1 INSTRUMENT DIAGNOSTICS 1.11.1.1 In “Diagnostics – Loadcell Interfaces” is there a voltage and weight reading? ...
  • Page 24 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL  YES – Power supply is correct – 1.11.2.2  NO – No Power – 1.11.2.3 1.11.2.2 Check CAN communications in the weighing module  Mk5/Atlas Loadcell Interface – Check if the green CAN communication light is flashing o YES –...
  • Page 25 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 1.11.3 LOADCELL DIAGNOSTICS A multi-meter will be needed for these tests, capable of reading in V and mV. 1.11.3.1 Measure between the red (+v) and black (0v) wire on one of the loadcell inputs, it should be 5v.
  • Page 26 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 1.11.3.4 To double check any cells that are suspected of being faulty, the impedance (resistance) can be measured in two places, Input and Output. If they are functioning correctly the measured value (Ohms) should not fall outside of the specified ranges below, regardless of weight on the cells.
  • Page 27 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL You will be testing one cell at a time, so make sure the other loadcell wires are not connected/touching the input or this will affect the results. • Connect 1 loadcell in the weighing module •...
  • Page 28 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL • Observe the diagnostics for 60s and watch the voltage and weight readings. If they are unstable or drifting (increasing or decreasing) then this would indicate an issue with the loadcell. •...
  • Page 29 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL Type-C Junction Box Page 24...
  • Page 30 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 1.12 ENCODER FITTED TO REAR FLOOR SHAFT Gearbox Gearbox Brand Valve Type Adan Motor RDS Feedback Approx rpm of Type Ratio (Litres/min) (cc size) (ppr) floor shaft RT350/50 31.4:1 1024 43.6:1 1024 RT500/50 1024...
  • Page 31 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 1.13 RDS WEIGH CELL WIRING COLOUR CODE ORANGE GEARBOX SENSOR BLUE BEATER SHAFT SENSOR (HBD MACHINES) GREEN WEIGH CELL No. 1 WEIGH CELL No.2 WEIGH CELL No. 3 YELLOW WEIGH CELL No. 4 GREY FLASHING BEACON FOR MAX LOAD WEIGHT 1.14...
  • Page 32 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL MAINTENANCE LUBRICATION OF SPREADER DAILY GREASE Front and rear floor shaft Overrun clutch to front of main ‘T’ gearbox Hitch eye WEEKLY GREASE All sealed bearings – 1/2 pump of grease gun maximum. TAKE CARE NOT TO DAMAGE GREASE SEAL BY OVERGREASING Sliding tube of PTO shaft.
  • Page 33 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 3. Grease the Overrun Clutch to front of the auger gearbox. WEEKLY (40 HRS) 1. Check wheel nuts. Re-torque as needed. 2. Grease all sealed bearings Driveline hanger bearings (2 or 3 depending on model). b.
  • Page 34 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL MONTHLY Apply grease or heavy oil to apron chain. Grease telescoping section of PTO shaft. Grease the CV Joint of PTO shaft (15 pumps) Grease suspension system spring bushings on each side. Grease brake pivot bushings (Tandem Suspension machines).
  • Page 35 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL SERVICE RECORD See Lubrication and Mainteneance sections for details of service. Copy this page to continue record. ACTION CODE CK = CHECK CL = CLEAN G = GREASE FLOOR GEARBOX Page 30...
  • Page 36 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL DRIVELINE PROTECTION Our machines are fitted standard with a shear-bolt clutch protection for the PTO driveline. We also have the option of the torque limiter clutches for machines that require a lot of torque and also aloows machine operators to reset it without having to get out of the tractor.
  • Page 37 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL FLOOR DRIVE HYDRAULIC CIRCUIT FOR FLOOR DRIVE Page 32...
  • Page 38 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL FLOOR SPEED CONTROL UNIT 3.2.1 MANUAL FLOW CONTROL VALVES PART No. DESCRIPTION FLOW RATE (LPM) REFERENCE B3030 MANUAL VALVE MK4 STANDARD B3030/1 MANUAL VALVE MK4 OPTION B3031 MANUAL VALVE MK4 OPTION 3.2.2 ELECTRIC FLOW CONTROL VALVES PART No.
  • Page 39 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL FLOOR DRIVE RELIEF VALVES This valve is cross line type and is fitted to the hydraulic motor on the floor drive gearbox. The pressure can be varied to suit the material being spread. To adjust, engage the oil flow via the spool valve on the tractor, insert the Allen key to prevent the screw from rotating whilst slacking off the lock nut.
  • Page 40 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL FLOOR DRIVE GEARBOX 500/50/25 - B3105 75, 90, 105, 105C & 120 TVA STD KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION B3203 CASING BR375 BEARING B3228 SLEEVE Ø50 B4002 CIRCLIP B4099...
  • Page 41 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL FLOOR DRIVE GEARBOX 500/60/25 - B3106 75, 90, 105, 105C & 120 TVA OPTION Option for HYBRID machines (WIDEBODY TVA) or with 20mm floor chains. KEY QTY PART No. DESCRIPTION QTY PART No. DESCRIPTION B3203 CASING BR375...
  • Page 42 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL FLOOR DRIVE GEARBOX 500/50/25 - B3107 105, 105C & 120 HBD STD QTY PART No. DESCRIPTION QTY PART No. DESCRIPTION B3203/1 CASING BR375 BEARING B3231 GEAR B4002 CIRCLIP B4099 CIRCLIP B3233 PINION SHAFT B3228 SLEEVE Ø50...
  • Page 43 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL FLOOR DRIVE GEARBOX 800/60/32 - B3122 150 TVA STD KEY QTY PART No. DESCRIPTION QTY PART No. DESCRIPTION B3204 CASING BR390 BEARING B3230 SLEEVE Ø60 B4006 CIRCLIP B4030 CIRCLIP B3254 PINION SHAFT B3236 GEAR BR310...
  • Page 44 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL FLOOR DRIVE GEARBOX 800/60/32 - B3123 150 HBD STD QTY PART No. DESCRIPTION QTY PART No. DESCRIPTION B3204/1 CASING B4006 CIRCLIP B3236 GEAR B3254 PINION SHAFT B4030 CIRCLIP BR310 BEARING B3230 SLEEVE Ø60 B4019 CIRCLIP...
  • Page 45 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL FLOOR DRIVE GEARBOX 1000/70/32 - B3124 MK4 TVA OPTION QTY PART No. DESCRIPTION QTY PART No. DESCRIPTION B3257 CASING BR390 BEARING B3258 SLEEVE Ø70 B4006 CIRCLIP B3259 GEAR B3254 PINION SHAFT B3260 CIRCLIP BR310...
  • Page 46 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 3.10 FLOOR DRIVE GEARBOX 1000/70/32 - B3125 MK4 HBD OPTION QTY PART No. DESCRIPTION QTY PART No. DESCRIPTION B3257/1 CASING B4006 CIRCLIP B3260 CIRCLIP B3254 PINION SHAFT B3259 GEAR BR310 BEARING B3258 SLEEVE Ø70 B4019...
  • Page 47 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 3.11 REAR FLOOR SHAFT ASSEMBLY KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION B2250 REAR SHAFT Ø50 (75 - 120) B3106 GEARBOX 500/60 (75 - 120) B2254 REAR SHAFT Ø60 (150 ONLY) B3122 GEARBOX 800/60 (150 ONLY) B2256...
  • Page 48 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 3.12 FRONT FLOOR SHAFT AND CHAIN ASSEMBLY KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION 22 B2040 B2322 ACM BUSH Ø60 FLOOR SLAT 75/105C 25 B2040 BEARING BLOCK M50 C/W ACM FLOOR SLAT 85 B2290 BUSH &...
  • Page 49 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL AUGERS, BEATERS AND DRIVES TWIN VERTICAL SHREDDING AUGERS MK4 KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION BOLT & NUT M14x40 B1021 AUGER R.H (SHORT) 88 B1107 FINE (SHORT AUGER) BOLT &...
  • Page 50 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL TWIN VERTICAL SHREDDING AUGERS MK4 HYBRID (WIDEBODY REAR END) PART No. DESCRIPTION B1050 AUGER L.H B1051 AUGER R.H B1156 DRIVE FLANGE B1146 RUBBER DRIVE BLOCK W.B B1123/18 AUGER BLADE EACH AUGER INCL. BOLTS & NUTS B1101/1 BOLT &...
  • Page 51 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL TWIN VERTICAL SHREDDING AUGERS MK4 HYBRID SLUDGE CAKE (WIDEBODY REAR END) PART No. DESCRIPTION 73154 BOLT & LOCK NUT M16x50 B1192 BEARING M60 C/W CAP B2352 SPACER B1101 CUTTER POINT H.D BORON 20mm B1101/1 BOLT &...
  • Page 52 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL HORIZONTAL BEATERS (x 2) WITH SPINNING DISCS (HBD) MK4 STANDARD KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION DMS5029-1 CANOPY LID AMS4165 LHS CHAIN GUARD 73062, 73363 BOLT, NUT & WASHER BC445 TAPERLOCK BUSH 3020/60 + 74688...
  • Page 53 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL HORIZONTAL BEATERS (x 2) WITH SPINNING DISCS (HBD) PARTS LIST CONTINUED KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION BC248 SI NGLE SPROCKET 25T 2517 16 73095 BOLT & NUT M12x50 BC294 DUPLEX SPROCKET 25T 3020 B8370H...
  • Page 54 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL HORIZONTAL BEATER (x 2) WITH SPINNING DISCS (HBD) MK4 HYBRID OPTION KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION DMS5029-3 CANOPY LID B1180/1 BEARING UCFX13-60mm 73062, 73363 BOLT, NUT & WASHER 73155, 73375 BOLT, NUT &...
  • Page 55 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL HORIZONTAL BEATER (x 2) WITH SPINNING DISCS (HBD) MK4 HYBRID – CONTINUED KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION 73155/1 + BOLT & NUT M16x50 G12.9 BC290 DUPLEX SPROCKET 23T 3020 73375 (I NNER) DUPLEX SPROCKET 16T 2517...
  • Page 56 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL GEARBOX SRT12-540/360 – B3172 MK4 TVA 540 RPM OPTION KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION B3404 CASING SL195 SEAL B3410 EXTENSION B3490 GASKET B3494 GASKET B4007 CIRCLIP BR175 BEARING B3402...
  • Page 57 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL GEARBOX SRT12-1000/420 – B3170 MK4 TVA STD KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION B3404 CASING SL195 SEAL B3410 EXTENSION B3490 GASKET B3494 GASKET B4007 CIRCLIP BR175 BEARING B3402 CASING B3440...
  • Page 58 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL GEARBOX SRT18-1000/420 – B3182 MK4 HYBRID (WB) TVA STD QTY PART No. DESCRIPTION QTY PART No. DESCRIPTION B3401 HOUSING B3470 GEAR B3406 HOUSING BR180 BEARING B3510 LEFT THREADED RING B3490 GASKET B3520 WASHER B3412...
  • Page 59 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL GEARBOX SRT12-1000/420 THRU – B3175 MK4 TVA SPINNER DECK READY KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION CASING B3490 GASKET B3410 EXTENSION B4007 CIRCLIP B3494 GASKET B3402 CASING BR175 BEARING B3446...
  • Page 60 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 4.10 GEARBOX SRT18-1000/420 THRU – B3186 MK4 HYBRID (WB) TVA SPINNER DECK READY KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION B3510 NUT LH THREAD BR180 BEARING B3520 WASHER B3412 OUTER CASE SECTION B3458...
  • Page 61 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 4.11 GEARBOX SRT18-1000/520 – B3190 MK4 & MK4 HY TVA DETACHABLE SPINNER DECK KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION B3405 CASING B3418 AUGER GEAR CASE B3494 GASKET BR405 BEARING B3410...
  • Page 62 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 4.12 GEARBOX SRT18-1000/590/520 – B3183 ALL HORIZONTAL BEATERS & DISCS MACHINES QTY PART No.DESCRIPTION QTY PART No.DESCRIPTION B3511 BACK GEARBOX (SEE Pg 58) B3480 SPACER B3494 GASKET B3405 HOUSING 73125 BOLT M14x35 B3990 OIL PLUG Ø1/2"...
  • Page 63 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 4.13 GEARBOX SRT18-1000/590/520 BACK GEARBOX – B3511 ALL HBD MACHINES KEY QTY PART No. DESCRIPTION QTY PART No. DESCRIPTION B3401 CASING B3490 GASKET B3418 AUGER GEAR CASE SL195 SEAL B3510 NUT LH THREAD BR405 BEARING B3520 WASHER B3444 SHAFT...
  • Page 64 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 4.14 TRANSVERSE DRIVE ASSEMBLY HORIZONTAL BEATERS CAM CLUTCH PART No. DESCRIPTION 42506 TORQUE LIMITER ASSEMBLY 1-3/4" Z6 TO Ø40 DMS1328-16 DRIVE SHAFT STD FARMSTAR & MK4 SRT18 DMS2758-1 DRIVE SHAFT FOR 15T SPROCKET MK4 SRT18 DMS1328-17 DRIVE SHAFT MK4 HYBRID &...
  • Page 65 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL PTO AND TRANSMISSION TRANSMISSION MK4 75 & 105C TVA KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION 1 42260 PTO SHAFT F/M 1 B5364 GUARD 1 42301 PTO SHAFT M/M SHORT 1 B3170 GEARBOX 1 42300...
  • Page 66 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL TRANSMISSION MK4 120 & 120HY TVA PART No. DESCRIPTION 42260 PTO SHAFT F/M 42301 PTO SHAFT M/M 42250 PTO SHAFT F/M 42300 PTO SHAFT F/F B1170/1 BEARING M35 B5364 GUARD B3170 GEARBOX B1173 BRG MSF35 FRONT ONLY...
  • Page 67 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL TRANSMISSION MK4 150 & 150HY TVA PART No. DESCRIPTION 42260 PTO SHAFT F/M 42301 PTO SHAFT M/M 42255 PTO SHAFT F/M 42300 PTO SHAFT F/F B1170/1 BEARING M35 B5364 GUARD B3170 GEARBOX B1173 BRG MSF35 FRONT ONLY...
  • Page 68 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL TRANSMISSION DRIVELINE PARTS 5.6.1 T60 DRIVELINE PARTS KEY PART No. DESCRIPTION KEY PART No. DESCRIPTION SHAFT 1-3/8" 6 SPLINE + INNER 42041 42710 YOKE TO 1-3/8" 6 SPLINE T60 TUBE ASSY 42770 OUTER T60 TUBE 3m * 42750...
  • Page 69 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL PROBLEMS AND POSSIBLE SOLUTIONS PROBLEM PROBABLE CAUSE POSSIBLE SOLUTION Page 64...
  • Page 70 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL PROBLEMS AND POSSIBLE SOLUTIONS PROBLEM PROBABLE CAUSE POSSIBLE SOLUTION Page 65...
  • Page 71 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL WALTERSCHIED WIDE ANGLE PTO SHAFT – SHEAR BOLT PART No. TRACTOR END SPREADER END LENGTH 43005 1 3/8" 21 SPLINE 1 3/8" 6 SPLINE 1210mm 43006 1 3/8" 6 SPLINE 1 3/8" 6 SPLINE 1210mm 43005L 1 3/8"...
  • Page 72 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 5.11 COMER PTO SHAFT PARTS PART No. DESCRIPTION 42705 YOKE TO 1-3/8" 6 SPLINE 42701 JOURNAL 42835/1 YOKE TO OUTER V60 TUBE 42790 ROLL PIN 42780 V60 TUBE OUTER 42785 V60 TUBE INNER 42835 YOKE TO INNER V60 TUBE 42760...
  • Page 73 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 5.12 WALTERSCHEID WIDE ANGLE PTO SHAFT PARTS KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION W/A P.T.O SHAFT COMPLETE 43005 43302 OUTER TUBE S5 PROFI LE 21 SPLINE W/A P.T.O SHAFT COMPLETE 43006 43315 YOKE TO S5 OUTER TUBE...
  • Page 74 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 5.13 PTO GUARD SAFETY CHAIN FIXING Care should be taken when fixing the PTO safety chains, by following the guidelines below you can help avoid unnecessary and possibly expensive damage to the PTO guard and its component parts. The purpose of the safety chain is to stop the guarding from rotating during its normal operation thus preventing foreign objects becoming entangled in it including you!, the safety chains must be fixed in a position that limits the risk of damage to both operator and shaft guarding.
  • Page 75 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL Safety chain fixing positions 5.14 PTO SHAFT STOWAGE When the spreader is not in use stow PTO shaft as shown to prevent damage. Please check the condition of the PTO shaft guard regularly, if damaged replace as soon as possible.
  • Page 76 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL AXLES AND BRAKES AXLES & BRAKES ARRANGEMENTS For all brake and axle parts please contact your local dealer or GT Bunning. HYDRAULIC BRAKE SYSTEMS 6.2.1 HYDRAULIC BRAKE RAM ASSEMBLY – MK4 75 30mm BORE – 70830.2 KEY QTY PART No.
  • Page 77 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.2.3 HYDRAULIC BRAKE CIRCUIT SINGLE AXLE PART No. DESCRIPTION 51568 COUPLING 3/8 FEMALE SELF SEAL B4462 INTER-CONNECTING HOSE 51463 3/8"-3/8" NPT BULKHEAD B4458 LONG HOSE 51447 3/8"-3/8"-3/8" NPT MALE TEE B4454 AXLE HOSE 70830/2 30 (75)
  • Page 78 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.2.4 HYDRAULIC BRAKE CIRCUIT & CLEVIS DRAWBAR PART No. DESCRIPTION 51568 COUPLING 3/8 FEMALE SELF SEAL B4462 INTER-CONNECTING HOSE 51463 3/8"-3/8" NPT BULKHEAD B4458 LONG HOSE 51447 3/8"-3/8"-3/8" NPT MALE TEE B4454 AXLE HOSE 70830/2...
  • Page 79 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL AIR (PNEUMATIC) BRAKE SYSTEMS 6.3.1 INTRODUCTION & SAFETY Since 1986 trailers used for the sole purpose of Agriculture, Horticulture or Forestry, and travelling below 20mph have been allowed to have a braking performance of just 25%. This means that a tandem axled agricultural trailer with 16 tonnes of weight imposed on the road, by its tyres, would need to generate a minimum braking force of 1000 kg per wheel.
  • Page 80 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.3.3 TWO-LINE TRAILER AIR BRAKING SYSTEMS The two-line trailer braking system is based on HGV trailer braking systems which were designed to meet the European Council Directive 71/320/EEC. These systems use one red air line (known as a supply or emergency line) which is permanently pressurized by the tractor when coupled to the trailer, and one yellow line (known as the service or control line) which has a variable pressure.
  • Page 81 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.3.4 TWO-LINE SYSTEM – OPERATION The air enters the trailer via the red susie (2) and passes through a filter (6). The filter is designed to trap particles of dirt, to stop them entering other valves further down the line. It is not designed to stop water entering the trailer’s system, as this function is part of the tractor’s braking system when fitted with an air dryer.
  • Page 82 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL The RELSV has several functions, one of which is load sensing. The service pressure may be modified by the RELSV based upon the weight sensed by the valve, as the RELSV is connected to the suspension via a vertical linkage (rod) and its operating arm.
  • Page 83 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.3.5 BASIC PNEUMATIC CHECKS In order to perform some basic air checks, at least two good quality, calibrated air gauges are required, along with their connecting hoses, and often a few extra assorted test points. The trailer should have test points positioned around the system, so that tests can easily be carried out.
  • Page 84 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL Test 3 (Smooth Operation/No Residual Pressure) Swap the test coupling to the yellow line or attach the gauge and test hose to any test point in the yellow line leading up to port 4 of the RELSV. Attach the other gauge to a test point on any brake chamber.
  • Page 85 Find out the recommended unladen LSV setting pressure for your trailer. This may be on a data plate, or available from GT Bunning, or J H Milnes, the air kits supplier. This is not the pressure present in the trailer’s brakes during normal unladen braking, but is a pressure used for setting up the RELSV! Along with this unladen pressure you should also get its associated “test pressure”, as well as the laden brake...
  • Page 86 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL Step 6 Check the unladen setting by applying the test pressure down the yellow line (6.0 bar used in this example) and measure the RELSV output pressure. This can be measured directly at any unused port 2, or on a brake chamber. If the pressure is correct (2.5 bar in this example), then the valve is now set up.
  • Page 87 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.3.8.2 SPRING BRAKES FOR EMERGENCY BRAKING AND PARKING All vehicles and trailers with air brakes must have a way of stopping if the service brake system fails. Using spring brakes combines this emergency braking system with a parking-brake system. Spring brakes are not air applied like service brakes.
  • Page 88 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.3.8.3 DISABLING THE SPRING BRAKE CHAMBER Using a "caging bolt" or other mechanism, a technician can manually compress or "cage" the spring in a spring brake chamber. This may be necessary to move a trailer in an emergency. When a spring brake chamber fails, a technician may use the manual caging method to temporarily disable it.
  • Page 89 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.3.8.5 FITTING THE SPRING PARKING BRAKES With the spring parking brakes please do the following to help you remove the internal threaded rod; Fit the spring brakes to the Trailer/ tanker as normal connecting the service pipe to port 11 (normal brakes) and the spring brake pipe to port number 12.
  • Page 90 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.3.9 TROUBLESHOOTING - PNEUMATICS PROBLEM CAUSE SOLUTION DISCONNECT TRAILER TO ASCERTAIN AIR LEAK IN SYSTEM WHETHER LEAK IS IN THE TRACTOR, OR TRAILER COMPRESSOR OR UNLOADER/AIR CHECK IF COMPRESSOR IS BLOWING-OFF TRACTOR (TRAILER CIRCUIT) LOW DRYER PROBLEM AT UNLOADER, OR AIR DRYER.
  • Page 91 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL AXLES & DRAWBAR SPRINGS MAINTENANCE SAFETY NOTICE NB: Excerpt from the COLAERT ESSIEUX SYSTEM Manual. The authors and publisher are not liable for any physical damage or personal injury resulting from errors or omissions in this manual.
  • Page 92 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.4.2 GENERAL INFORMATION The specifications of our axles and suspensions can be found in the general COLAERT ESSIEUX catalogue. The catalogue provides the following information. Axles - The axle cross-section. - The axle type. - The axle loads and maximum admissible offset at speeds of 25, 40 and 60 km/h with zero offset wheels, with single, tandem or tridem axles.
  • Page 93 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.4.3 AXLE MAINTENANCE AND ADJUSTMENT 6.4.3.1 ASSEMBLY AND FIXING OF THE WHEELS Above all to check that the type of wheel used is compatible with the nut of the wheel stud, for all the cases of fixing of the wheel with centering on the wheel stud, i.e.
  • Page 94 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.4.3.2 TIGHTENING AND RETIGHTENING WHEEL NUTS (SUMMARY): Never use impact wrenches to tighten the wheel nuts as the impact torque may be excessive. Wheel nuts should be tightened diagonally using a torque wrench. If power tools are used (for example, pneumatic torque wrench) they must be carefully set to the required torque for tightening.
  • Page 95 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.4.3.5 ADJUSTING THE WHEEL BEARINGS Lift the axle until the wheel is no longer resting on the ground. Large wheels should be removed so that the play is easier to feel and to make it easier to adjust the bearings. - Remove the hubcap.
  • Page 96 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL DISASSEMBLY: (See figures 9.3.5 and 9.3.6.a) - Slacken the wheel nuts. - Lift the axle until the wheel is off the ground. - Remove the wheel. - Release the brakes (make sure that the vehicle cannot move). - Remove the hubcap.
  • Page 97 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.4.3.7 REPLACING THE WHEEL BEARING New grease retaining plates should be fitted to hubs with grease retaining plates (See figure 9.3.5), as the plates will be damaged while removing the bearing cups. Unpack the bearings at the last moment and never mix them up.
  • Page 98 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.4.4 BRAKE MAINTENANCE AND ADJUSTMENT 6.4.4.1 INITIAL CHECKS The brakes should be tested before using for the first time and after the first laden journey: - Check the actuator and return spring mountings, check the actuator stroke and return travel and check that the road and parking brakes operate and release correctly.
  • Page 99 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.4.4.3 ADJUSTING BRAKES WITH FIXED LEVERS Take up the slack when the actuator stroke reaches about two thirds of the maximum travel (See figure 9.4.3.a). To take up the slack, turn the lever by one or more splines, ensuring that the brakes are not touching when released (to prevent overheating the brakes).
  • Page 100 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL For braking systems with a tandem yoke, the yoke must remain parallel with the axle especially when the brakes are fully applied (See figure 9.4.3.b). This means that the stroke of the levers on the brakes at each side must be identical. Otherwise, the brake slack must be adjusted.
  • Page 101 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL See sections 6.4.3.5 ADJUSTING THE WHEEL BEARINGS and 6.4.3.6 LUBRICATING THE WHEEL BEARINGS for hub disassembly and reassembly and wheel bearing lubrication and adjustment. When replacing the brake linings, check all the brake components. - Condition of the drums.
  • Page 102 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.4.6 DRAWBAR SPRINGS After the first laden journey, before intensive use or every 6 months (See figure 9.7) - Retighten all the mounting U-bolt nuts to the recommended torque Item 2. - Lubricate the attachment shaft Item 3.
  • Page 103 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 6.4.7 MINIMUM PROGRAM OF MAINTENANCE This maintenance plan is intended for normal operating conditions. More frequent maintenance may be required for harsh operating conditions(construction sites, mountains, intensive use, etc)... See the following paragraphs for detailed maintenance instructions.
  • Page 104 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL TYRES AND WHEELS TYRE AND WHEEL MAINTENANCE Maintenance of correct inflation pressure is the basic essential factor in obtaining the best performance and life from a pneumatic tyre. The air inside the tyre enables it to carry a load. It is only when the inflation pressure is correctly matched that the tyre adopts its optimum cross-sectional shape and the tread rests correctly on the road surface with the correct pressure distribution across its whole width, thus allowing the sidewalls to provide the required degree of flexibility.
  • Page 105 20%. Field dual: 88% of field load, field triple: 82% of field load. Alliance allows for free rolling application: Load capacity to be increased by 20%, after increasing the inflation pressure by 20%. Check with Alliance tyre dealer or GT Bunning before increasing the pressure beyond those stated in the tables.
  • Page 106 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 520/70 R 34 155A8/B BKT AGRIMAX RT 855 Recommended DW16L Option DW18L DD16L Section Unloaded Width 20.3 Overall Dimension 1849 Dia. 72.8 Static Loaded Radius 32.0 5466 Rolling Circumference 215.2 in Recommended Load, kg (lbs) Load Index Inflation...
  • Page 107 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 23.1 – 26 14PR (156A8) ALLIANCE 347 Recommended DW20 Option Section Unloaded Width 23.1 Overall 1605 Dimension Dia. 63.2 Static Loaded Radius 27.7 4648 Rolling Circumference Recommended Load, kg (lbs) Load Index Inflation Speed Ply Rating...
  • Page 108 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 580/70 R 38 170A8 (STD) & 180A8 (HIGH LOAD) ALLIANCE AGRI-STAR 370 Recommended W18A Option W18L DW18L Section Unloaded Width 22.7 Overall Dimension 1817 Dia. 71.5 Static Loaded Radius 32.1 5443 Rolling Circumference 214.3 in Recommended Load, kg (lbs)
  • Page 109 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 710/70 R 38 172A8/172B ALLIANCE FARMPRO 70 Recommended DW23B Option Section Unloaded Width 28.2 Overall Dimension 1958 Dia. 77.1 Static Loaded Radius 34.6 5768 Rolling Circumference 227.1 in Recommended Load, kg (lbs) Load Index Inflation Speed...
  • Page 110 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 620/70 R 42 173D BKT AGRIMAX RT 765 Recommended DW20B Option DW18L Section Unloaded Width 24.6 Overall Dimension 1935 Dia. 76.2 Static Loaded Radius 34.5 5742 Rolling Circumference 226.1 in Recommended Load, kg (lbs) Load Index Inflation Speed...
  • Page 111 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL IF 800/70 R 38 CFO 187A8 TRELLEBORG TM3000 Recommended DW27B Option Section Unloaded Width 30.7 Overall Dimension 2050 Dia. 80.7 Static Loaded Radius 35.8 6190 Rolling Circumference 243.7 in Recommended Load, kg (lbs) Load Index Inflation Speed...
  • Page 112 70439/2 U-BOLT 30mm * NORTH AMERICAN STYLE CAT 3, 4 & 5 (Contact your local dealer or GT Bunning) 1. DRAWBAR ASSEMBLIES: The North American style mounting available upon request. 2. HITCHES: The North American style Swivel and Clevis hitches available upon request.
  • Page 113 HITCH, 3 x 26mm BOLT PATTERN, 2in PIN B5294/2 BULL-PULL NORTH-AMERICAN CAT-4 SWIVEL HITCH, 3 x 26mm BOLT PATTERN, 2in PIN 1. COMES WITH 1 ½in (CAT-3) & 2in (CAT-4) DRAW PIN INSERTS PLEASE CONTACT YOUR LOCAL DEALER OR GT BUNNING FOR DETAILS. Page 108...
  • Page 114 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL REAR DRAWBAR - OPTIONAL PART No. DESCRIPTION B5310 REAR CLEVIS DRAWBAR CROSS MEMBER 70107 7 PIN LIGHT SOCKET 51569 HYDRAULIC BRAKE CONNECTION AIR COUPLING MALE AIR COUPLING FEMALE NOTE: The rear clevis drawbar is designed for highway use only towing an unladen spreader.
  • Page 115 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL GUILLOTINE SLURRY DOOR TVA PART No. DESCRIPTION B4110 DOOR - 75/85/90 B4112 DOOR - 105/105C/120/150/150C (HIGH AUGERS) B4115 DOOR WITH WB AUGERS B4136 50/35 1321 STROKE RAM - 75/90 B4138 50/35 1626 STROKE RAM - 105/105C/120/150 65520 SEAL KIT D/A 50x35 B4130...
  • Page 116 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL GUILLOTINE SLURRY DOOR HBD PART No. DESCRIPTION B4113 DOOR - 105/105C/120/150 B4138 65520 SEAL KIT D/A 50x35 B4130 TOP RAM PIN DIA 5/8" B4132 BOTTOM RAM PIN DIA 3/4" B4159 RUBBER SEAL B4166 RUBBER SEAL WITH WB AUGERS B4184...
  • Page 117 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL GUILLOTINE SLURRY DOOR HYDRAULIC CIRCUIT PART No. DESCRIPTION 51576 1/2" PROBE MALE SELF SEALER 51591 DIA 1/2" DOWTY WASHER 51335 3/8"-3/8" BPT NIPPLE 10522 3/8"-3/8" BPT NIPPLE 1/8" REDUCED 51590 DIA 3/8" DOWTY WASHER 52316 HOSE END DIA 3/8-1/2"...
  • Page 118 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL SUPPORT LEG PART No. 70307 Use unladen only TOOLBOX PART No. 80136 Page 113...
  • Page 119 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL DETACHABLE SPINNER DECK – ADD ON OPTION MK4 HIGH AUGERS KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION B8810 BUCKET HOOK 73034 BOLT M8x35 GR8.8 AMS3632 REAR CANOPY ASSEMBLY 73359 LOCK NUT M8 50759/3...
  • Page 120 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 8.10 DETACHABLE SPINNER DECK – ADD ON OPTION MK4 HYBRID (WB BACK-END) KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION B8810 BUCKET HOOK 16 73095 BOLT & NUT M12x50 AMS3700 REAR CANOPY ASSEMBLY B3190...
  • Page 121 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 8.11 HANDBRAKE CONTROL IMAGE PART NO. & DESCRIPTION 70321 MULTI-STROKE HANDBRAKE 70321/1 POWERBRAKE-RT HANDBRAKE 8.12 BODY SEAL RUBBERS PART No. DESCRIPTION B4159 SLURRY DOOR & FRONTWALL MK4 B4176 AUGER DECK MK4 B4177 DOUBLE WIPE MK4 B4166/1...
  • Page 122 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 8.13 SIMPLE CANOPY AMS1141 B4178 – RUBBER SKIRT 8.14 HYDRAULIC BORDER CONTROL PART No. DESCRIPTION 65078 RAM DA30 20 255 B4191 MOUNT BRACKET LH B4191/1 MOUNT BRACKET RH B4190 DEFLECTOR PLATE LH B4190/1 DEFLECTOR PLATE RH 65505...
  • Page 123 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 8.15 SLUDGE CAKE BUILD MK4 HYBRID (WB BACK-END) KEY QTY PART No. DESCRIPTION B1180/1 BEARING Ø60 C/W CAP B2352 SPACER 73154 BOLT & NUT M16x50 B1048 AUGER ASSEMBLY LH (SEE SECTION 4.3 FOR PARTS) B1049 AUGER ASSEMBLY RH (SEE SECTION 4.3 FOR PARTS) B5321/2...
  • Page 124 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 8.16 WEIGH CELL SPARES IMAGE PART No. DESCRIPTION B9097 LOAD CELL 6.4m LEAD B9098 LOAD CELL 12.2m LEAD B9073 PRINTER UNIT B9025 REAR SHAFT ROTARY SENSOR KIT B9021 REAR SHAFT ROTARY SENSOR ONLY (ITEM NO. B9096 REAR SHAFT ROTARY SENSOR LEAD B9069...
  • Page 125 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL ELECTRICS WIRING FOR 12v 7 PIN PLUG YELLOW –Y– L.H. INDICATOR BLUE –B– FOG WHITE -W– EARTH GREEN – G- R.H. INDICATOR BROWN –BR- TAIL RED –R- STOP BLACK –BL- SIDE MARKERS Pins 5 &...
  • Page 126 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL LIGHTING COMPONENTS PART QUANTITY IMAGE DESCRIPTION EXTRA 70009/3 REAR LAMPS 2 / 4 70081 TRIANGLE REFLECTOR – RED 70154 MARKER LAMPS – WHITE – FRONT 2 / 4  2 AT FRONT OF MACHINE ...
  • Page 127 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL HEALTH AND SAFETY 10.1 HAZARDOUS MACHINERY WARNING This machine is hazardous if improperly used and may cause serious injury or death if not used in accordance with these operating instructions and safety warnings. Employers are required to train and supervise all operators and assistants to observe safety precautions described by this handbook, the installation process and by warning decals.
  • Page 128 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 10.7 COUPLING / DECOUPLING Care must be taken to avoid crushing an assistant when coupling or decoupling the machine to a tractor. 10.8 MACHINERY START UP Sound the horn before starting this machine. 10.9 MACHINERY SHUT DOWN This machine must be operated from a tractor driver’s seat.
  • Page 129 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 10.13 SAFETY DECAL LOCATION WARNING – When spreading , lower slurry door to cover exposed augers as the load reduces. DANGER – Keep hands clear of taildoor and mechanism during operation. iii) WARNING –...
  • Page 130 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 10.14 OPERATING HAZARD AREA  Objects can be thrown out from the rotors with enough force to severely injure people. Stay away from machine when it is running. Keep others away. ...
  • Page 131 During the 3 year warranty period any failures which occur due to faulty components or workmanship must be reported to G.T. Bunning & Sons Ltd before any repairs or replacements of components is carried out. The warranty period commences on the despatch date from the dealer to the customer.
  • Page 132 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL NOTES Page 127...
  • Page 133 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL IDENTIFICATION PLATE The machine serial number (VIN) is required with all orders for spare parts and technical enquires. This is necessary in order to ensure correct delivery of spare parts. The identification plate with the machine number is attached to the middle right side of the machine drawbar.
  • Page 134 15400 15250 16950 20200 Bunning tolerance +/-2% NB – Machines with extension sides or build in flares are designed for use with light materials. DO NOT EXCEED THE PLATED WEIGHTS. USE ON HIGHWAYS (UK) Maximum gross combination weight is 31000 Kg.
  • Page 135 1290 2420 8350 2920 3080 Bunning tolerance +/- 2% Dimensions D, F and G vary depending on the size of tyres. FOR PROMPT SUPPLY OF SPARES, ALWAYS QUOTE THE CHASSIS SERIAL NUMBER, (FOUND ON THE CHASSIS IDENTIFICATION PLATE) Page 130...
  • Page 136 LOWLANDER MK4 MANURE SPREADER – INSTRUCTION & SPARES MANUAL 14.3 BOLT TORQUE CHECKING BOLT TORQUE The table(s) shown below give correct torque values for various bolts and cap-screws. Tighten all bolts to the torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide.
  • Page 138 Registered Office: The Green, Gressenhall, Dereham Norfolk NR20 4DT ENGLAND Telephone: +44 (0)1362 860352 Fax: +44 (0)1362 860930 E-mail: mail@gtbunning.co.uk Website: www.gtbunning.co.uk G.T. Bunning & Sons Ltd...
