UEi DTK2-N Instruction Manual

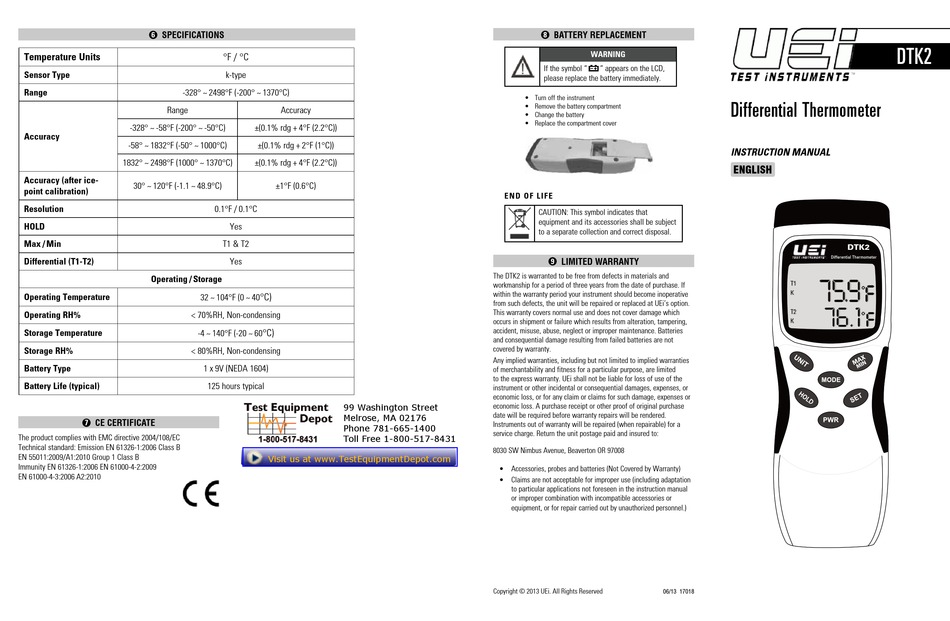

6 SPECIFICATIONS
Temperature Units
Sensor Type
Range
-328° ~ 2498°F (-200° ~ 1370°C)
Range
-328° ~ -58°F (-200° ~ -50°C)
Accuracy
-58° ~ 1832°F (-50° ~ 1000°C)
1832° ~ 2498°F (1000° ~ 1370°C)
Accuracy (after ice-
30° ~ 120°F (-1.1 ~ 48.9°C)
point calibration)
Resolution
HOLD
Max / Min
Differential (T1-T2)
Operating / Storage
Operating Temperature
Operating RH% < 70%RH, Non-condensing
Storage Temperature -4 ~ 140°F (-20 ~ 60
Storage RH% < 80%RH, Non-condensing
Battery Type
Battery Life (typical)
7 CE CERTIFICATE
The product complies with EMC directive 2004/108/EC
Technical standard: Emission EN 61326-1:2006 Class B
EN 55011:2009/A1:2010 Group 1 Class B
Immunity EN 61326-1:2006 EN 61000-4-2:2009
EN 61000-4-3:2006 A2:2010
°F / °C
k-type
Accuracy
±(0.1% rdg + 4°F (2.2°C))
±(0.1% rdg + 2°F (1°C))
±(0.1% rdg + 4°F (2.2°C))
±1°F (0.6°C)
0.1°F / 0.1°C
Yes
T1 & T2
Yes
°C)
32 ~ 104°F (0 ~ 40
°C)
1 x 9V (NEDA 1604)
125 hours typical
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
8 BATTERY REPLACEMENT
WARNING
If the symbol " " appears on the LCD,
please replace the battery immediately.
• Turn off the instrument
• Remove the battery compartment
• Change the battery
• Replace the compartment cover
E N D O F L I F E
CAUTION: This symbol indicates that
equipment and its accessories shall be subject
to a separate collection and correct disposal.
9 LIMITEd WARRANTY
The DTK2 is warranted to be free from defects in materials and
workmanship for a period of three years from the date of purchase. If
within the warranty period your instrument should become inoperative
from such defects, the unit will be repaired or replaced at UEi's option.
This warranty covers normal use and does not cover damage which
occurs in shipment or failure which results from alteration, tampering,
accident, misuse, abuse, neglect or improper maintenance. Batteries
and consequential damage resulting from failed batteries are not
covered by warranty.
Any implied warranties, including but not limited to implied warranties
of merchantability and fitness for a particular purpose, are limited
to the express warranty. UEi shall not be liable for loss of use of the
instrument or other incidental or consequential damages, expenses, or
economic loss, or for any claim or claims for such damage, expenses or
economic loss. A purchase receipt or other proof of original purchase
date will be required before warranty repairs will be rendered.
Instruments out of warranty will be repaired (when repairable) for a
service charge. Return the unit postage paid and insured to:
8030 SW Nimbus Avenue, Beaverton OR 97008
• Accessories, probes and batteries (Not Covered by Warranty)
• Claims are not acceptable for improper use (including adaptation
to particular applications not foreseen in the instruction manual
or improper combination with incompatible accessories or
equipment, or for repair carried out by unauthorized personnel.)
Copyright © 2013 UEi. All Rights Reserved 06/13 17018

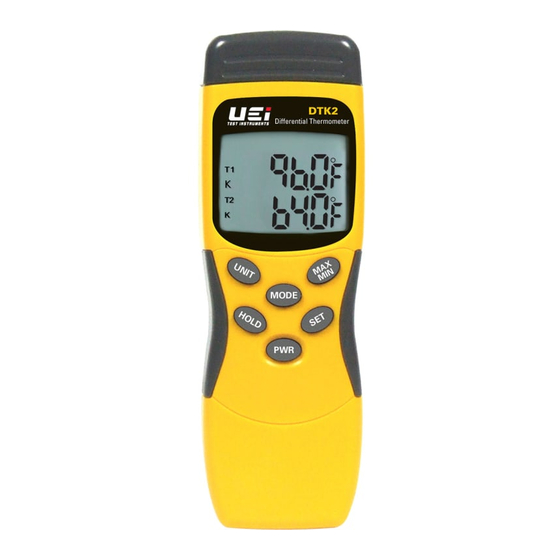

DTK2
Differential Thermometer
INSTRUCTION MANUAL
ENGLISH
DTK2
Differential Thermometer
7 75.9 7 5. 5 . 5 . 9 . . . 9 9 9 f f f f
T1 T1 T1
° ° °
K K K
7 76.1 7 6.1 6.1 f f f f
T2 T2 T2
° ° °
K K K
