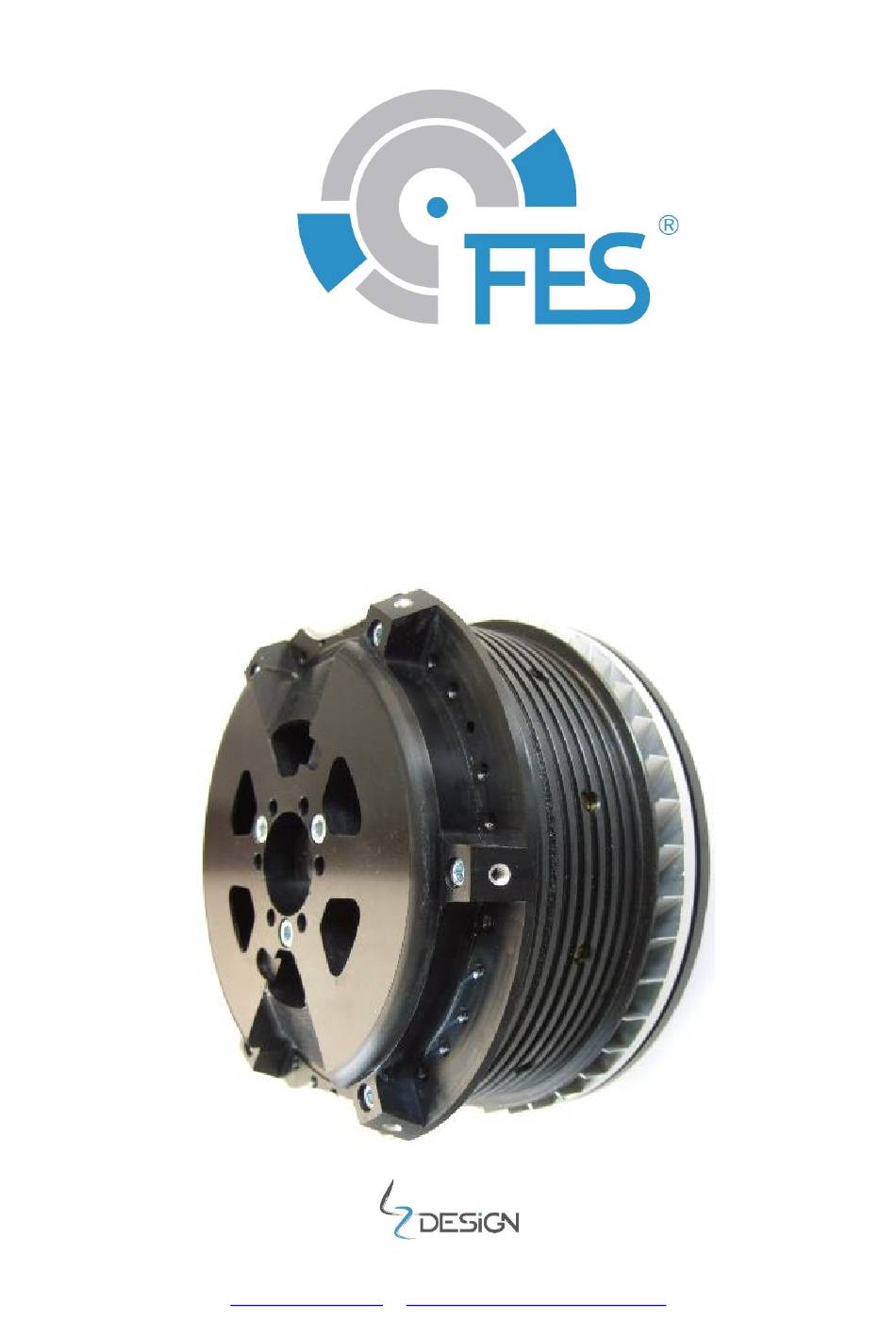

- Page 1 FES MOTOR MANUAL Version 1.21 FES-LS8-M100 Type: LZ design d.o.o., • Brod 3D, 1370 Logatec, Slovenia • tel +386 59 948 898 info@lzdesign.si • front-electric-sustainer.com...
-
Page 2: Table Of Contents
FES-LS8-M100 MOTOR manual Version 1.21 April 2020 Table of Content 1. Important notices ..................... 3 1.1 Limited Warranty ....................3 2. General ........................4 3. Model designation ....................4 4. Technical data and limitations of motor ..............5 5. Drawing of motor ..................... 7 6. -
Page 3: Important Notices
This motor is warranted to be free from defects in materials or workmanship for two years from the date of purchase. Within this period, LZ design will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour, the customer shall be responsible for any transportation cost. -
Page 4: General
FES-LS8-M100 MOTOR manual Version 1.21 April 2020 2. General Congratulations on your purchase. This is a high-end product of brushless synchronous permanent magnet motor with electronically controlled commutation system 3 phase, which will keep its capability for a long time if treated the right way. -
Page 5: Technical Data And Limitations Of Motor
DC current from Battery packs to 3 phase current which supply motor. We use controller type which needs hall position sensors in motor, but this motor can work also with some sensorless controllers. Electrical motor type FES-LS8-M100 power ratings at 116V on motor controller and loaded with FES-LS8-P1-102 propeller: 75 Nm... - Page 6 FES-LS8-M100 MOTOR manual Version 1.21 April 2020 Power Consumption Max climb Power consumption curve Horizontal flight 0; 0 1000 2000 3000 4000 5000 n (RPM) Rpm versus Power Page 6 of 12...
-
Page 7: Drawing Of Motor
FES-LS8-M100 MOTOR manual Version 1.21 April 2020 5. Drawing of motor Page 7 of 12... -
Page 8: Maintenance
FES-LS8-M100 MOTOR manual Version 1.21 April 2020 6. Maintenance The motor does not need any maintenance. Opening or disassembling of the motor would cause a forfeit of warranty claims! It could be also very dangerous, due to very strong magnets on rotor! Though, it has to be considered that no foreign objects at all can enter the interior of the drive. -
Page 9: Removal Of Motor
FES-LS8-M100 MOTOR manual Version 1.21 April 2020 7. Removal of motor Removal of motor from sailplane is only allowed in case of written permission from manufacturer otherwise warranty is not valid anymore! Warning! It is not allowed to fly with removed motor from the sailplane, as C.G. position... - Page 10 FES-LS8-M100 MOTOR manual Version 1.21 April 2020 2. Remove pitot tube assembly which is fixed on the back side of motor mounting plate. To do that is necessary to unscrew two M5 bolts on top. Then carefully pull out pitot tube assembly.
-
Page 11: Installation Of Motor
FES-LS8-M100 MOTOR manual Version 1.21 April 2020 8. Installation of motor To install motor back on glider, follow the reverse order of previous chapter. Take care about additional steps: 1. Below M8 motor fixation bolts, it is recommended to use new brass safely spacers 2. -
Page 12: Repair And Service
FES-LS8-M100 MOTOR manual Version 1.21 April 2020 9. Repair and service In case of a fault or damage, please contact manufacturer. 10. Revision history April 2019 Initial release of manual, v1.2 April 2020 Minor updates, v1.21 Page 12 of 12...
