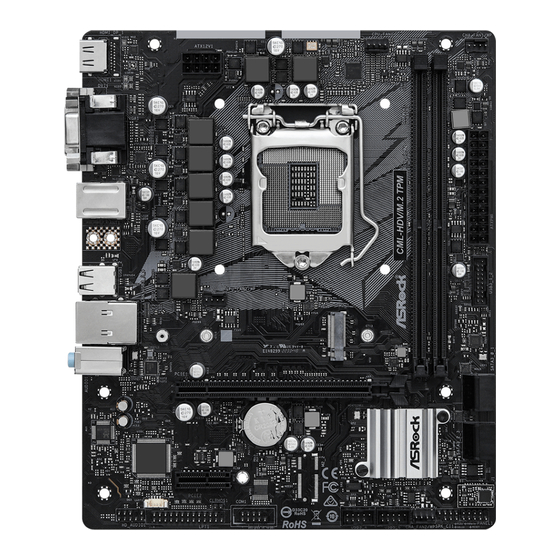

ASROCK CML-HDV/M.2 TPM Manual

Hide thumbs Also See for CML-HDV/M.2 TPM:
Table of Contents

  • Chapter 1 Introduction
    • Package Contents
    • Specifications
    • Motherboard Layout

  • Chapter 2 Installation
    • Pre-Installation Precautions
    • Installing the CPU
    • Installing the Cpu Fan and Heatsink
    • Installing Memory Modules (DIMM)
    • Expansion Slots (PCI Express Slots)
    • Jumpers Setup
    • Onboard Headers and Connectors
    • Technische Daten
    • Spécifications
    • Especificaciones
    • Технические Характеристики
    • Copyright Notice
