User Manual

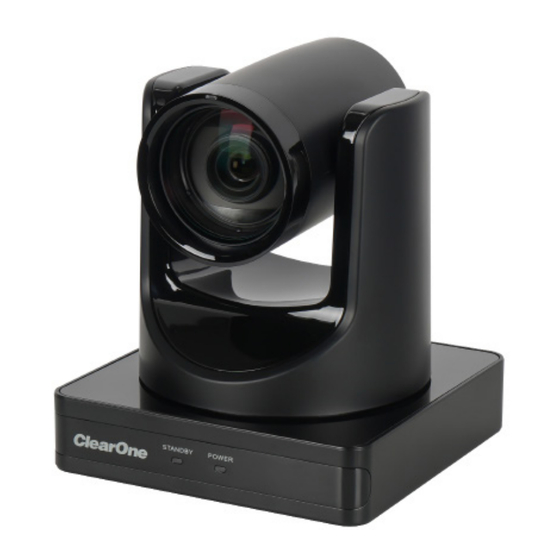

UNITE® 160 4K Camera
DOC-0501-001v1.0
November 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the UNITE 160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearOne UNITE 160

Summary of Contents for ClearOne UNITE 160

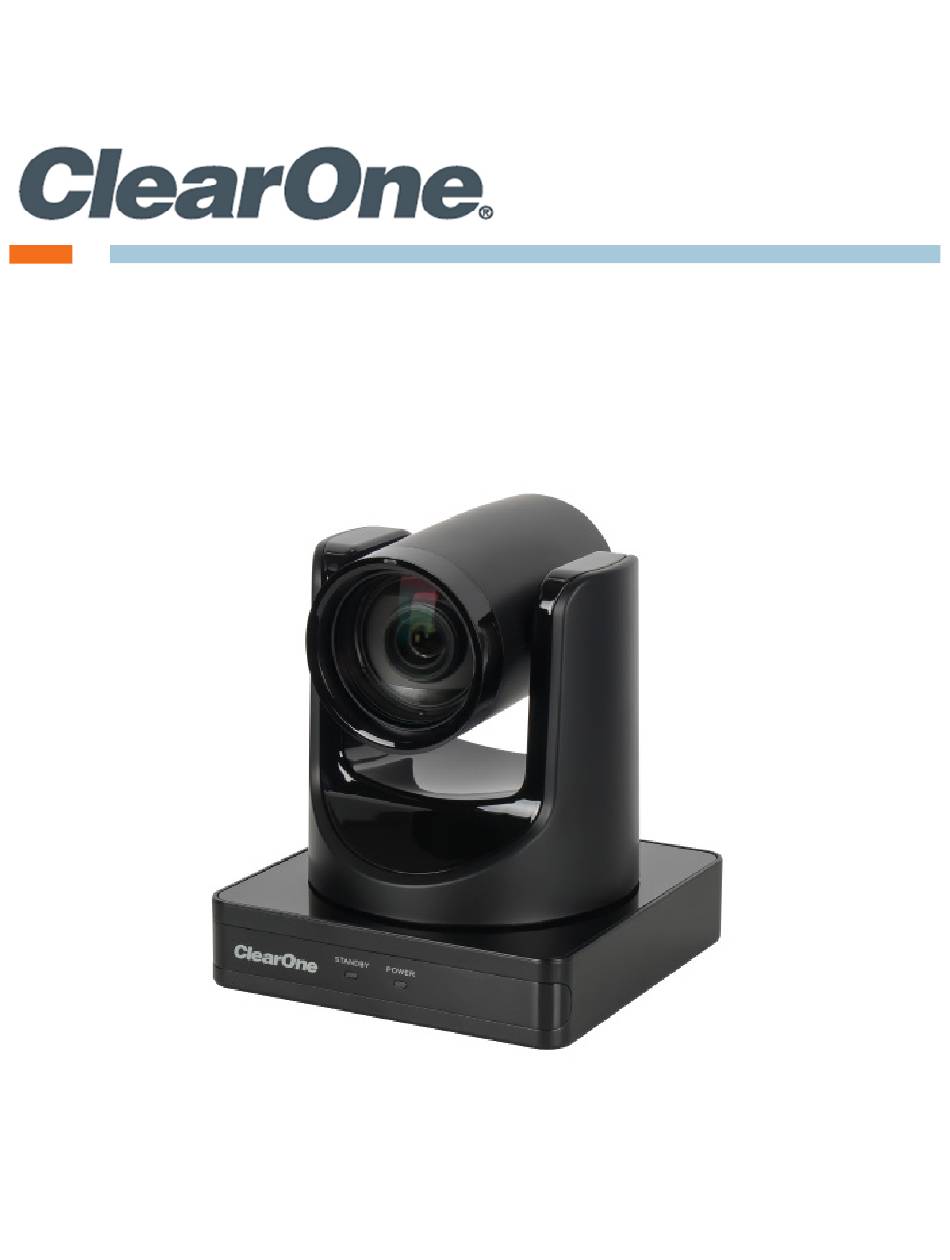

  • Page 1 User Manual UNITE® 160 4K Camera DOC-0501-001v1.0 November 2022...
  • Page 2 Tel: +1.801.975-7200 Salt Lake City, UT 84116 Sales Technical Support Tel: +1.801.975.7200 Tel: +1.801.974.3760 sales@clearone.com videotechsupport@clearone.com Notices © 2022 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. Document: DOC-0501-001v1.0 November 2022 November 2022 DOC-0501-001v1.0...

  • Page 3: Table Of Contents

    UNITE 160 4K Camera User Manual Contents FCC Notices..................iii 1. Safety Precautions ................. 1 2. Packing List ..................1 3. Product Information ................ 2 4. GUI Settings ................. 10 5. Troubleshooting ................14 November 2022 DOC-0501-001v1.0...

  • Page 4: Fcc Notices

    UNITE 160 4K Camera User Manual FCC Notices (Class A) This device complies with Part 15 of the FCC Rules. The operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this...

  • Page 5: Safety Precautions

    UNITE 160 4K Camera User Manual 1. Safety Precautions • During the installation and operation, all electrical safety regulations of the country and region of use must be strictly observed. • Please use the power adapter that comes standard with this product.

  • Page 6: Product Information

    UNITE 160 4K Camera User Manual 3. Product Information 3.1 Features • Full Function USB Interface Full function USB interface, compatible with USB3.0 and USB2.0, supports UVC v1.1 and UAC 1.0 protocol, supports raw video image and encoded output. • 4K UHD Includes a high-quality 1/2.5-inch UHD CMOS sensor with 8.51 million effective pixels for ultra-...
  • Page 7 UNITE 160 4K Camera User Manual 3.2 Product Specifications Camera Description 1/2.5-inch, CMOS, Effective Pixels: 8.51M Sensor Scanning Mode Progressive 12x, f=4.4mm ~ 52.8mm, F1.8 ~ F2.6 Lens 0.5 Lux @ (F1.8, AGC ON) Minimum Illumination 1/30s ~ 1/10000s Shutter...
  • Page 8 UNITE 160 4K Camera User Manual Interfaces 1 x USB3.0: Type-C USB Interface 1 x LINE IN: 3.5mm audio interface Audio Interface 1 x RS232: 8pin Min DIN; Max. Distance: 30m; Protocol: VISCA/Pelco-D/Pelco-P Communication Interface 1 x RS485: 2pin phoenix port; Max. Distance: 1200m;...
  • Page 9 UNITE 160 4K Camera User Manual 3.3 Interfaces and Buttons Interface RS232 Interface USB3.0 Interface LINE IN Interface RS485 Interface DC 12V Interface Back to Table of Contents November 2022 DOC-0501-001v1.0...
  • Page 10 UNITE 160 4K Camera User Manual 3.4 Dimensions Back to Table of Contents November 2022 DOC-0501-001v1.0...
  • Page 11 UNITE 160 4K Camera User Manual 3.5 Installation Note: The installation diagram is for reference only. The brackets and screws are not standard. For packing accessories, please refer to the actual product. Back to Table of Contents November 2022 DOC-0501-001v1.0...
  • Page 12 UNITE 160 4K Camera User Manual 3.6 Remote Control Shortcut Set F1: Short press to open One Push Framing mode / Long press 2s to open Auto Framing mode F3: Short press to open Auto Tracking mode F4: Long press 2s to close Auto Framing or Auto •...
  • Page 13 UNITE 160 4K Camera User Manual Name Function Description Standby Key Press to enter standby mode Number Key To set preset or call preset *Key Use with other keys Preset Key Preset: Setting Preset + Number key(0-9) HOME Key Confirm selection or press to turn PTZ back to the middle...

  • Page 14: Gui Settings

    UNITE 160 4K Camera User Manual 4. GUI Settings 4.1 Menu Press the [MENU] key to display the main menu on the screen. Use the arrow key to move the cursor to a desired item and press the [HOME] key to confirm and enter the corresponding sub-menu.
  • Page 15 UNITE 160 4K Camera User Manual 4.3 Color When in the main menu page, move the cursor to [Color] and press the [HOME] key to confirm and enter the Color page as shown here. WB-Mode: (White Balance Mode): Auto, Indoor, Outdoor, One Push, Manual, VAR.
  • Page 16 UNITE 160 4K Camera User Manual 4.5 P/T/Z When in the main menu page, move the cursor to [P/T/Z] and press the [HOME] key to confirm and enter the P/T/Z page as shown here. Speed By Zoom (The Depth of Field Ratio): On, Off.
  • Page 17 UNITE 160 4K Camera User Manual 4.8 Communication Setup When in the main menu page, move the cursor to [Communication Setup] and press the [HOME] key to confirm and enter the Communication Setup page as shown here. Protocol: Auto, VISCA, PELCO-D, PELCO-P .

  • Page 18: Troubleshooting

    UNITE 160 4K Camera User Manual 5. Troubleshooting Image • The monitor shows no image 1. Verify that the camera’s power supply is connected, the voltage is normal, and the power indicator is always on. 2. Turn off the power switch to check whether the camera is self-testing.
  • Page 19 UNITE 160 4K Camera User Manual Problem Cause Resolution There is no power to the Test another USB port USB Port is not supplying proper camera power Ensure cable connections are USB Cable is Disconnected secure Camera will not connect...
