- Page 1 COLLABORATE Pro 900 ® Quick-Start Guide...
-
Page 2: Components Included

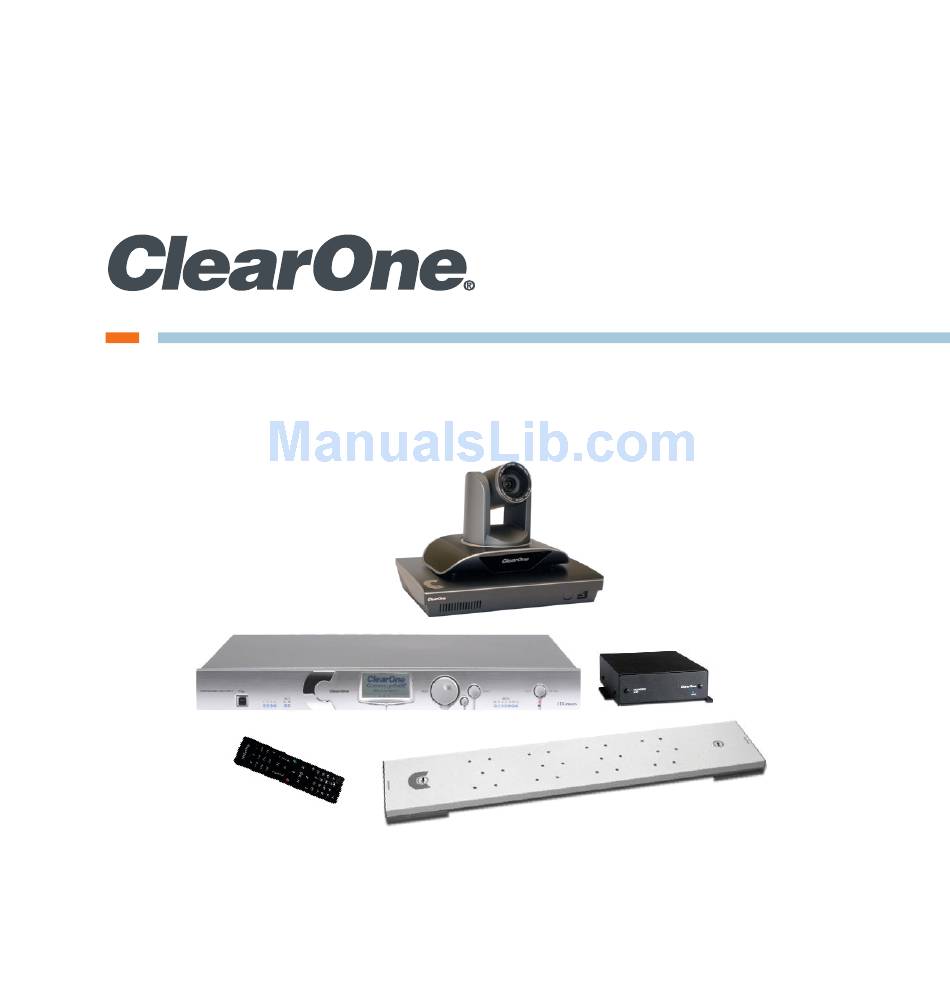

COLLABORATE PRO 900 COMPONENTS INCLUDED COLLABORATE Pro 900 COLLABORATE Pro codec with power supply, COLLABORATE Remote control with dongle, and HDMI cable. 910-2100-001 UNITE 100 PTZ camera, power supply, DVI-I to HDMI cable and RS232 Serial Control cable. CONVERGE Pro 840T... -
Page 3: Making The Connections
QUICK-START GUIDE MAKING THE CONNECTIONS Connect the Beamforming Microphone Array to the CONVERGE Pro 840T, then connect the CONVERGE Pro 840T to the CONVERGE USB. Connect the CONVERGE USB, UNITE 100 camera, Ethernet, and monitor(s) to the COLLABORATE Pro codec as shown. UNITE Camera 1080p HDMI Camera Video... - Page 4 COLLABORATE PRO 900 CONNECTING THE REMOTE CONTROL DONGLE The Remote Control includes a dongle that plugs into the FRONT USB port on the codec.
-
Page 5: Configuring Audio Input And Output
QUICK-START GUIDE CONFIGURING AUDIO INPUT AND OUTPUT Loud Speakers Amplifier CONVERGE Pro Unit E-bus CONVERGE PRO 840T LINK 1 2 3 4 E-bus LINK COLLABORATE Pro Codec CONVERGE USB E-bus LINK Audio Transmit and Receive PoE (Power over Ethernet) E-bus LINK Out Beamforming Microphone Array NOTE: Power connections not shown. -
Page 6: Configuring Display Settings
COLLABORATE PRO 900 CONFIGURING DISPLAY SETTINGS After all peripherals are connected to the unit, turn the unit on. Once COLLABORATE Pro is loaded – you will see your local camera video on your screen. Using the remote control, navigate to the display settings: Settings >... -
Page 7: Configuring Audio Settings
QUICK-START GUIDE CONFIGURING AUDIO SETTINGS The COLLABORATE Pro audio input and output is Converge Pro. Verify this in COLLABORATE Settings > System > Audio... -
Page 8: Configuring Network Settings
COLLABORATE PRO 900 CONFIGURING NETWORK SETTINGS Using your remote control, navigate into the network settings: Settings > Advanced > IP Clearone.com The COLLABORATE Pro obtains its IP automatically by default from the DHCP server. Uncheck the DHCP checkbox in order to manually configure network... -
Page 9: Clearone Contacts
Tel: +852.3590.4526 e-mail: global@clearone.com e-mail: global@clearone.com Latin America Middle East Tel: +801.974.3621 Tel: +852.3590.4526 e-mail: global@clearone.com e-mail: global@clearone.com © 2015 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. QSG-0025-001 Revision 1.1, September, 2015...
