AP-Xtreme
Sim-Racing Chassis
Master Assembly Guide
This guide covers all options available for the AP-Xtreme chassis.
Some sections of this guide will be skipped based on the options chosen.
APX1000
APX2000
APX3000
APX3000UW
SlipSense
gSense
VR Option
Pedal Options
Floor Mount
Hanging Mount
Dead Pedal
4
th
Monitor
Shaker Option
Shifter Mount
Mount
Option
Speakers
Button Box
Hand Brake
Pro Shifter
Pro Seat Rails
WindSense
Page I-1
Revised: 9/1/2021
Last Edited by: FR
APX 1000+ Assembly Manual
Advertisement
Related Manuals for Ricmotech AP-Xtreme
Summary of Contents for Ricmotech AP-Xtreme

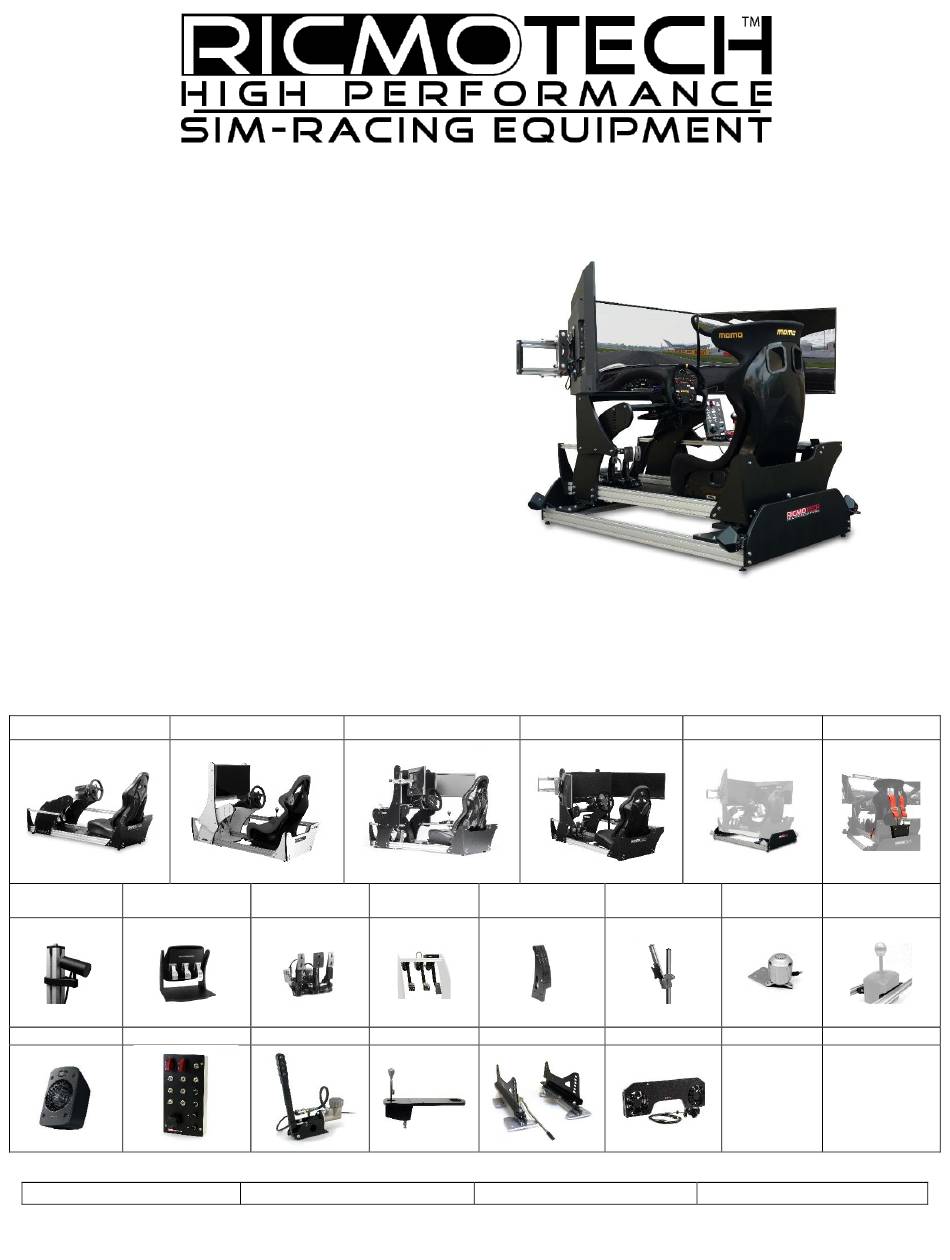

- Page 1 AP-Xtreme Sim-Racing Chassis Master Assembly Guide This guide covers all options available for the AP-Xtreme chassis. Some sections of this guide will be skipped based on the options chosen. APX1000 APX2000 APX3000 APX3000UW SlipSense gSense VR Option Pedal Options Floor Mount...
- Page 2 Page I-2 Revised: 9/1/2021 Last Edited by: FR APX 1000+ Assembly Manual...
-
Page 3: Tools Needed
Tools needed: #2 Phillips Screwdriver #3 Phillips Screwdriver ½” Wrench 7/16” Wrench 10mm Wrench Tape Measure Drill with ¼” (7mm) drill bit* Blanket or another soft surface to work on *May only be required if mounting GTpro3 Pedals Required Assembly Time Plan your time wisely. - Page 4 these projects are usually undertaken outside of normal business hours and we will try to help you as best we can during that time. (305)417-9241 Page I-4 Revised: 9/1/2021 Last Edited by: FR APX 1000+ Assembly Manual...
-
Page 5: Section A: Ap-Xtreme Slip Sense Assembly Contents
Section A: AP-Xtreme Slip Sense Assembly Contents Panels Included Item Code Image Page I-5 Revised: 9/1/2021 Last Edited by: FR APX 1000+ Assembly Manual... - Page 6 Item Code Image Extrusion Profile Item Code Size Image 3” x 1.5” x 66” 1.5” x 1.5” x 30.5” Hardware Included Item Code Description Image Hex Nut ¼-20 Hex Nut 5/16-18 Page I-6 Revised: 9/1/2021 Last Edited by: FR APX 1000+ Assembly Manual...
- Page 7 Item Code Description Image Flat Washer ¼ Flat Washer 5/16 C2-1 Carriage Bolt 5/16-18 x 0.75 C2-2 Carriage Bolt 5/16-18 x 1.25 C1-3 Carriage Bolt ¼-20 x 3.25 H2-2 Hex Bolt 5/16-18 x 1.50 Button Head 5/16 x 1.25 Screw 8-32 x 0.50 Angle Bracket 5/16-18 T-Slot Nut and Bolt Page I-7...
- Page 8 Item Code Description Image R1-F Front Roller and Guard Assembly R1-R Rear Roller and Guard Assembly Threaded Insert Plate with 1 set screw N4-A (may be pre-installed) Threaded Insert Plate with 2 set screws N4-B (may be pre-installed) Guide Bolt Bronze Bearing Vibration Mount (+4 more included with main chassis)
- Page 9 Item Code Description Image Actuator Control Power Supply SX4000 (Only 1 for SlipSense and G-Sense) Pinch Hazard Warning Decals Page I-9 Revised: 9/1/2021 Last Edited by: FR APX 1000+ Assembly Manual...
- Page 10 Section 2: G-Sense Components Item Code Description Image G-Sense Actuator Top Actuator Cover Panel Flat Washer ¼ G-Sense Actuator Power Supply SX4000 (Only 1 for SlipSense and G-Sense) Page I-10 Revised: 9/1/2021 Last Edited by: FR APX 1000+ Assembly Manual...
- Page 11 Item Code Description Image Specially Modified Belts GBELT for G-Sense System Spacer Sleeve Hex Nut ¼-20 Hex Nut 5/16-18 Dowel Nut ¼-20 Flat Washer ¼ Flat Washer 5/16 C2-4 Carriage Bolt 5/16-18 x 1.25 H1-3 Hex Bolt ¼-20 x 2.25 H1-4 Carriage Bolt ¼-20 x 3.25 Allen Head #10 x 1.00...
- Page 12 Item Code Description Image #10 Flanged Nut Page I-12 Revised: 9/1/2021 Last Edited by: FR APX 1000+ Assembly Manual...
-
Page 13: Section B & C: Ap-Xtreme Core Assembly Components
Section B & C: AP-Xtreme Core Assembly Components Panels Included (Box 1) Item Qty for Qty for Qty for Qty for Image Code APX1000 APX2000 APX3000 APX3000UW May have holes/slots based on pedal selection May be omitted based on pedal selection... - Page 14 Item Qty for Qty for Qty for Qty for Image Code APX1000 APX2000 APX3000 APX3000UW May have additional holes based on wheel selection May be omitted based on pedal selection May be omitted based on pedal selection Page I-14 Revised: 9/1/2021 Last Edited by: FR APX 1000+ Assembly Manual...
- Page 15 Item Qty for Qty for Qty for Qty for Image Code APX1000 APX2000 APX3000 APX3000UW (2 Tall & (2 Tall & (2 Tall & (2 Tall & 2 2 Short) 2 Short) 2 Short) Short) May be omitted based on seat selection Page I-15 Revised: 9/1/2021 Last Edited by: FR...
- Page 16 Extrusion Profile (Box 2) Item Qty for Qty for Qty for Qty for Qty for Size Image Code APX1000 APX2000 APX2000VR APX3000 APX3000 3” x 1.5” x 60” 1” x 1” x 60” 1” x 1” x 18” May be ommitted based on seat selection 1”...
- Page 17 Brackets Included (Box 3) Item Qty for Qty for Qty for Qty for Image Code APX1000 APX2000 APX3000 APX3000UW Page I-17 Revised: 9/1/2021 Last Edited by: FR APX 1000+ Assembly Manual...
- Page 18 Item Qty for Qty for Qty for Qty for Image Code APX1000 APX2000 APX3000 APX3000UW Page I-18 Revised: 9/1/2021 Last Edited by: FR APX 1000+ Assembly Manual...
- Page 19 Item Qty for Qty for Qty for Qty for Image Code APX1000 APX2000 APX3000 APX3000UW Page I-19 Revised: 9/1/2021 Last Edited by: FR APX 1000+ Assembly Manual...
- Page 20 Hardware Included (Box 3) Item Code Qty for Qty for Qty for Qty for Description Image APX1000 APX2000 APX3000 APX3000UW Hex Nut ¼-20 Hex Nut 5/16-18 Dowel Nut ¼-20 Flat Washer ¼ Flat Washer 5/16 C1-1 Carriage Bolt ¼-20 x 0.50 C1-2 Carriage Bolt ¼-20 x 1.25 Carriage Bolt 5/16-18 x...
- Page 21 Item Code Qty for Qty for Qty for Qty for Description Image APX1000 APX2000 APX3000 APX3000UW H1-3 Hex Bolt ¼-20 x 2.25 H2-1 Hex Bolt 5/16-18 x 0.625 H2-2 Hex Bolt 5/16-18 x 1.75 Screw 6-32 x 0.75 Flat Head Bolt ¼-20 x 1.50 Page I-21 Revised: 9/1/2021...
- Page 22 Typical example of how to fasten parts to aluminum profile slots. Step 1. Slide Bolt into profile slot Step 2. Place part to be secured over bolt then place washer followed by nut. TIP: Remove plastic film from panels before attaching hardware. Page I-22 Revised: 9/1/2021 Last Edited by: FR...
