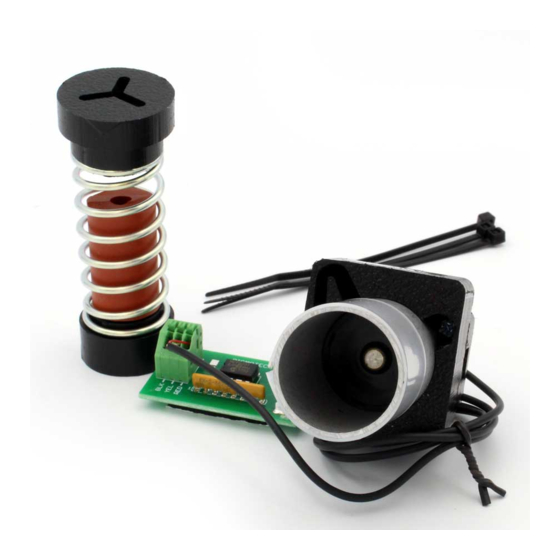

Ricmotech LC27 v3 Load Cell Kit Installation Guide
This product fits the Logitech G25, G27, G29, G920, and G923
brake pedal
Items Needed:
1. #1 Phillips Screwdriver
2. #2 Phillips Screwdriver
3. 2.5mm Allen Wrench (Hex Key)
4. 5mm Allen Wrench (Hex Key)
5. 10mm Wrench
6. Small Flat Screwdriver
7. Needle Nose Pliers
8. Small Diagonal Cutters
9. Cardboard Box approximately 10" x 10" x 4" (25cm x 25cm x 10cm)
Installation:

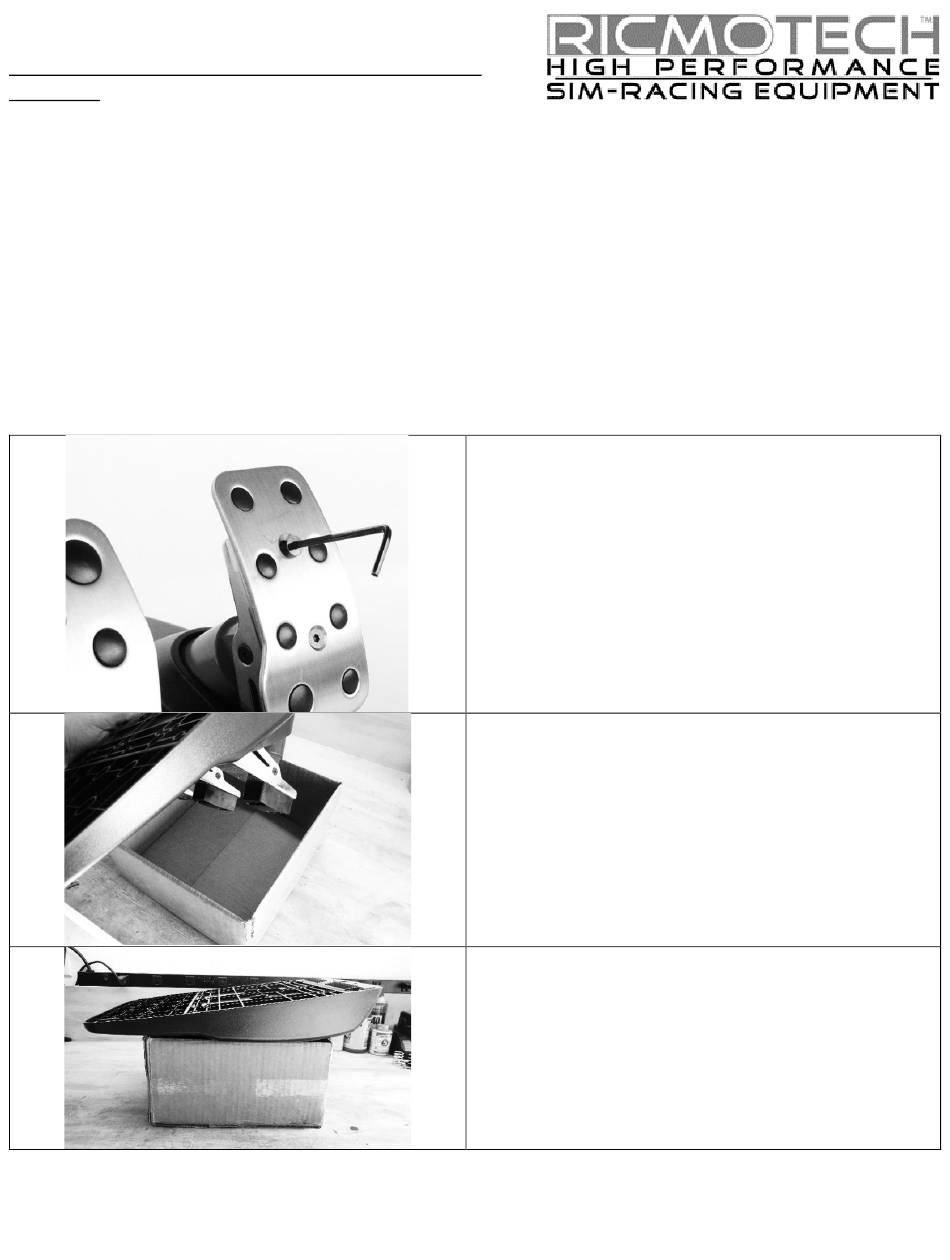

1. Begin by removing the pedal faces on the pedals you
will be working on using the 2.5mm Allen wrench (hex
key). Keep the screws together with each pedal since
they may be of different lengths.
2. Flip the pedals upside down into the cardboard box
so the pedals are hanging free and the plastic base
does not fall in.
3. If you do not have an appropriate cardboard box,
use some blocks of wood or rolled up towels to
accomplish the same support.
Advertisement
Related Manuals for Ricmotech LC27 v3 Load Cell Ki
Summary of Contents for Ricmotech LC27 v3 Load Cell Ki
- Page 1 Ricmotech LC27 v3 Load Cell Kit Installation Guide This product fits the Logitech G25, G27, G29, G920, and G923 brake pedal Items Needed: 1. #1 Phillips Screwdriver 2. #2 Phillips Screwdriver 3. 2.5mm Allen Wrench (Hex Key) 4. 5mm Allen Wrench (Hex Key) 5.
- Page 2 4. Remove the 12 black screws that secure each pedal to the bottom cover. 5. Remove the 14 silver screws that support that secure the cover in place. Do not forget the two screws behind the carpet gripper. 6. Lift off the bottom cover to expose the internals. Take pictures to assist in reassembly later.
- Page 3 9. The upper spring housing has a 3-spoke blade inside. This is obstructed by a white cap on the G28 and G920 pedals. Remove the white cap to expose the 3 spokes. The spring assembly has the mating slot to fit around them.
- Page 4 13. Gently tug on the wires to insure they are fully seated and will not come out. Be sure the metal jaw on the terminal block is contacting the metal strands of the wire. 14. Lay the pedal on the pedal housing and screw the ground terminal to the pedal base as shown.
- Page 5 Ricmotech strongly recommends hard mounting the pedals to your sim-rig. A rigid mounting without any flex will help you get the most out of the LC27 and give you the best improvement in your racing performance. To hard mount the Logitech®...
- Page 6 Copyright 2021, Ricmotech LLC. Logitech® and G25, G27, G29, G920, and G923 are trademarks of the Logitech® corporation and the terms are used for reference purposes only. Ricmotech and the LC27 v3 load cell kit is not affiliated with Logitech® Corporation.
