SPIDER UpPro Series Quick Reference

Hoist Operation Quick Reference

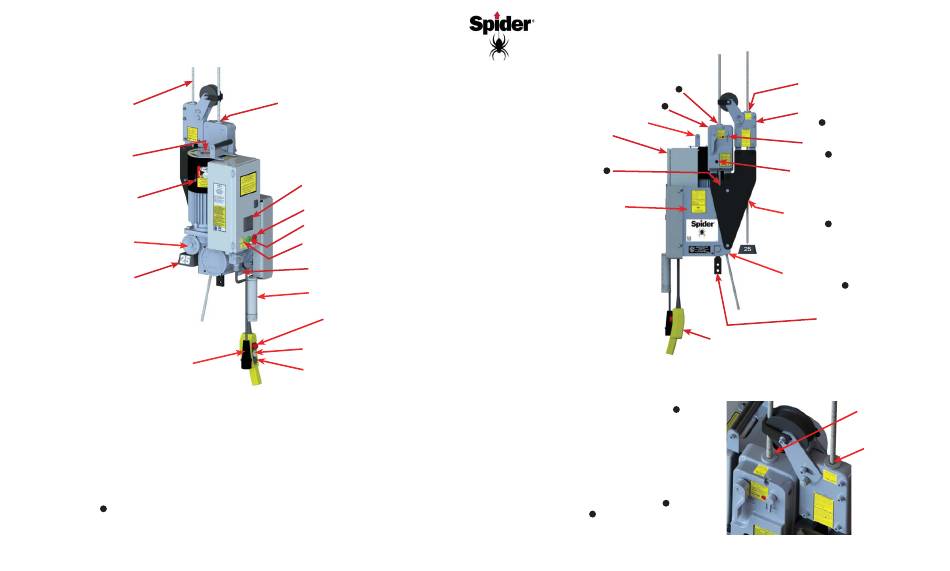

UpPro Series Hoists
READ THE OPERATOR'S MANUAL BEFORE USING THIS QUICK REFERENCE
Optional Secondary Wire Rope
Hand Wheel
(Operating Position)
Motor Brake Release Lever
(Operating Position)
Hand Wheel 
(Storage Position)
25-lb Weight for Optional
Secondary Wire Rope
Power Supply Cable 
Normal Operation
• Switch the control unit on by turing the red emergency stop button on the pendant in the clockwise direction until it pops out.
• For routine travel in the UP direction, push in the UP operation button. For routine travel in the DOWN direction,
push in the DOWN operation button.
• The UP/DOWN buttons have two pressure points. The fi rst pressure point is for the slower speed. Push the UP or
DOWN button again for the faster speed. On 4-speed models, press the yellow
• The UP/DOWN buttons are spring-loaded and will return to the OFF position AND apply the brake when released.
• If the hoist does not immediately stop the platform, press the emergency stop AND turn the overspeed brake
in the LOCK direction . Unplug the power supply cable  .
ACTIVATION lever
12
• Perform daily testing and inspection (see over) to ensure safe and correct operation. Do NOT use the hoist for
lifting until it has successfully completed the daily tests.
• WARNING! Do NOT operate the hoist if, at any time, you cannot see the fl ywheel turning.
Primary Wire Rope Inlet
Hour Meter
RED Overload Trip Indicator Light
GREEN Power Indicator Light
YELLOW YELLOW 2-Speed Button/ Low Voltage
Indicator (3-Phase Models only)
Brake Release Lever 
(Storage Position)
Operating Instructions
Manual and Schematic
Emergency Stop (Power
Supply Cut-off)
UP Operation Button
DOWN Operation Button
yellow button for the next highest speed.
Overspeed Brake RESET Lever
Overspeed Safety Lock (OSL)
Carrying Handle
Electrical Box
Primary Wire Rope Inlet in
Traction Compartment
15
Traction Compartment
Reeving
• Push the primary suspension wire rope through the the wire
rope inlet of the overspeed safety lock and guide it into the
wire rope inlet of the hoist's traction compartment
• When you cannot push the wire rope into the hoist's traction
compartment any further (because the traction roller has
gripped it), operate the hoist in the UP direction until the
wire rope passes through the hoist's traction compartment
exit.
• If the hoist is equipped with an optional secondary suspension
wire rope, push the secondary suspension wire rope through
the wire rope inlet in the inclination safety lock
passes through the ISL exit and the brackets.
13
• Attach a 25-lb (11.5-kg) weight to the end of the secondary
wire rope to assist secondary wire rope travel.
Inlet for Optional
17
Secondary Wire Rope 
16
Optional Inclination Safety Lock
(ISL)
11
Overspeed Brake ACTIVATION
Lever
12
Flywheel Observation Window
Exit for Optional Secondary
Wire Rope
13
Primary Suspension
Wire Rope Exit
Platform Mounting
Stirrup Bar
Pendant
.
15
until it
11
14
Primary Suspension
Wire Rope Inlet
Inlet for Optional
Secondary
Suspension Wire
Rope
721022-1/A
