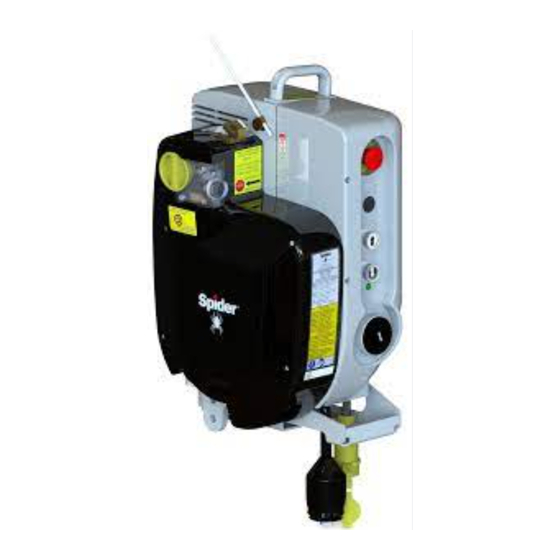

SPIDER SC1500 Quick Reference

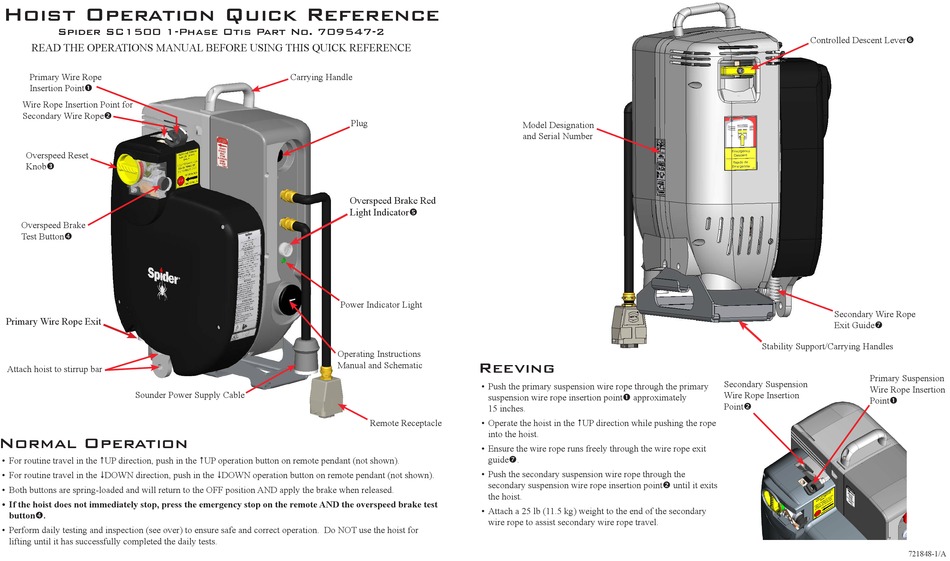

Hoist Operation Quick Reference

Spider SC1500 1-Phase Otis Part No. 709547-2
READ THE OPERATIONS MANUAL BEFORE USING THIS QUICK REFERENCE
Primary Wire Rope
Insertion Point
Wire Rope Insertion Point for
Secondary Wire Rope
Overspeed Reset
Knob
Overspeed Brake
Test Button
Primary Wire Rope Exit
Attach hoist to stirrup bar
Sounder Power Supply Cable

Normal Operation

• For routine travel in the UP direction, push in the UP operation button on remote pendant (not shown).
• For routine travel in the DOWN direction, push in the DOWN operation button on remote pendant (not shown).
• Both buttons are spring-loaded and will return to the OFF position AND apply the brake when released.
• If the hoist does not immediately stop, press the emergency stop on the remote AND the overspeed brake test
button.
• Perform daily testing and inspection (see over) to ensure safe and correct operation. Do NOT use the hoist for
lifting until it has successfully completed the daily tests.
Carrying Handle
Plug
Overspeed Brake Red
Light Indicator
Power Indicator Light
Operating Instructions
Manual and Schematic
Remote Receptacle
Model Designation
and Serial Number

Reeving

• Push the primary suspension wire rope through the primary
suspension wire rope insertion point approximately
15 inches.
• Operate the hoist in the UP direction while pushing the rope
into the hoist.
• Ensure the wire rope runs freely through the wire rope exit
guide.
• Push the secondary suspension wire rope through the
secondary suspension wire rope insertion point until it exits
the hoist.
• Attach a 25 lb (11.5 kg) weight to the end of the secondary
wire rope to assist secondary wire rope travel.
Controlled Descent Lever
Secondary Wire Rope
Exit Guide
Stability Support/Carrying Handles
Primary Suspension
Secondary Suspension
Wire Rope Insertion
Wire Rope Insertion
Point
Point
721848-1/A
