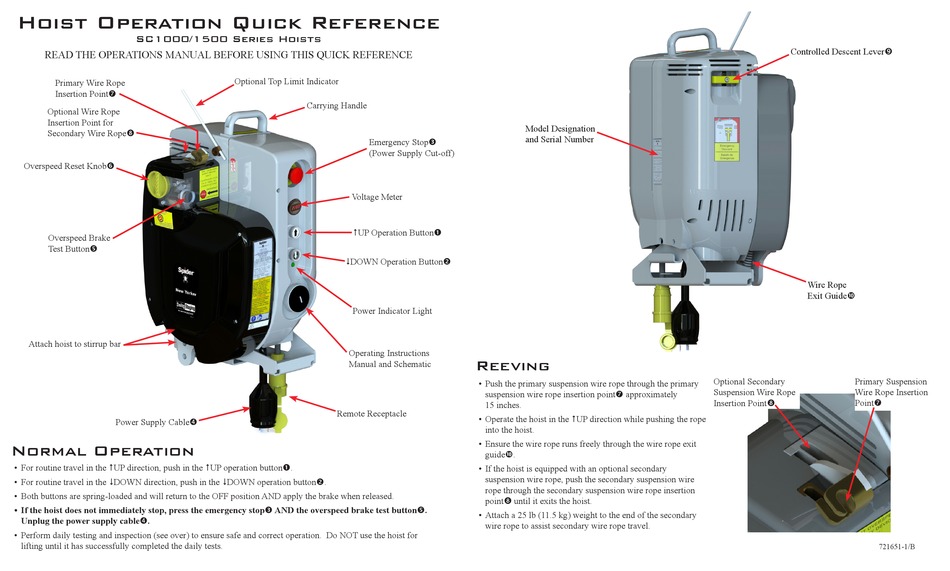

SPIDER SC1000 Series Quick Reference

Hoist Operation Quick Reference
SC1000/1500 Series Hoists
READ THE OPERATIONS MANUAL BEFORE USING THIS QUICK REFERENCE
Primary Wire Rope
Insertion Point
Optional Wire Rope
Insertion Point for
Secondary Wire Rope 
Overspeed Reset Knob
Overspeed Brake
Test Button
Attach hoist to stirrup bar
Power Supply Cable
Normal Operation
• For routine travel in the UP direction, push in the UP operation button.
• For routine travel in the DOWN direction, push in the DOWN operation button.
• Both buttons are spring-loaded and will return to the OFF position AND apply the brake when released.
• If the hoist does not immediately stop, press the emergency stop AND the overspeed brake test button.
Unplug the power supply cable.
• Perform daily testing and inspection (see over) to ensure safe and correct operation. Do NOT use the hoist for
lifting until it has successfully completed the daily tests.
Optional Top Limit Indicator
Carrying Handle
Emergency Stop
(Power Supply Cut-off)
Voltage Meter
UP Operation Button
DOWN Operation Button
Power Indicator Light
Operating Instructions
Manual and Schematic
Remote Receptacle
Model Designation
and Serial Number
Reeving
• Push the primary suspension wire rope through the primary
suspension wire rope insertion point  approximately
15 inches.
• Operate the hoist in the UP direction while pushing the rope
into the hoist.
• Ensure the wire rope runs freely through the wire rope exit
guide.
• If the hoist is equipped with an optional secondary
suspension wire rope, push the secondary suspension wire
rope through the secondary suspension wire rope insertion
point  until it exits the hoist.
• Attach a 25 lb (11.5 kg) weight to the end of the secondary
wire rope to assist secondary wire rope travel.
Controlled Descent Lever
Wire Rope
Exit Guide
Optional Secondary Primary Suspension
Suspension Wire Rope Wire Rope Insertion
Insertion Point  Point
721651-1/B
