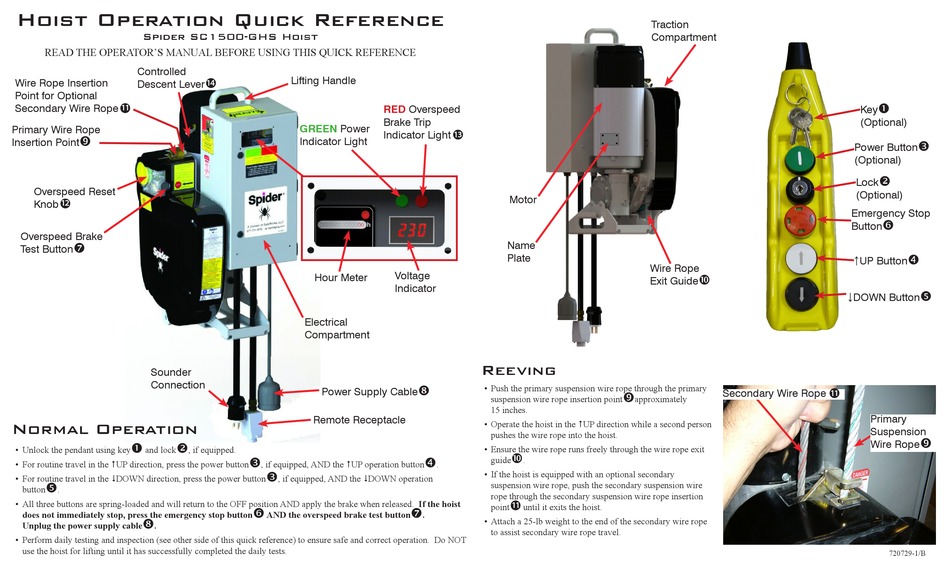

Hoist Operation Quick Reference
Spider SC1500-GHS Hoist
READ THE OPERATOR'S MANUAL BEFORE USING THIS QUICK REFERENCE
Controlled
Wire Rope Insertion
Descent Lever
Point for Optional
Secondary Wire Rope
11
Primary Wire Rope
Insertion Point
Overspeed Reset
Knob
12
Overspeed Brake
Test Button
Sounder
Connection
Normal Operation
• Unlock the pendant using key
and lock
, if equipped.
• For routine travel in the UP direction, press the power button
• For routine travel in the DOWN direction, press the power button
button
.
• All three buttons are spring-loaded and will return to the OFF position AND apply the brake when released. If the hoist
does not immediately stop, press the emergency stop button
Unplug the power supply cable
.
• Perform daily testing and inspection (see other side of this quick reference) to ensure safe and correct operation. Do NOT
use the hoist for lifting until it has successfully completed the daily tests.
Lifting Handle
14
RED
Brake Trip
GREEN
Power
Indicator Light
Indicator Light
Hour Meter
Electrical
Compartment
Power Supply Cable
Remote Receptacle
, if equipped, AND the UP operation button
, if equipped, AND the DOWN operation
AND the overspeed brake test button
Overspeed
13
Motor
Name
Plate
Voltage
Indicator
Reeving
• Push the primary suspension wire rope through the primary
suspension wire rope insertion point
15 inches.
• Operate the hoist in the UP direction while a second person
pushes the wire rope into the hoist.
• Ensure the wire rope runs freely through the wire rope exit
guide
.
.
• If the hoist is equipped with an optional secondary
suspension wire rope, push the secondary suspension wire
rope through the secondary suspension wire rope insertion
11
point until it exits the hoist.
.
• Attach a 25-lb weight to the end of the secondary wire rope
to assist secondary wire rope travel.
Traction
Compartment
Wire Rope
Exit Guide
Secondary Wire Rope
approximately
Key
(Optional)
Power Button
(Optional)
Lock
(Optional)
Emergency Stop
Button
↑ UP Button
↓ DOWN Button
11
Primary
Suspension
Wire Rope
720729-1/B
Advertisement
Related Manuals for SPIDER SC1500-GHS
Summary of Contents for SPIDER SC1500-GHS
- Page 1 Hoist Operation Quick Reference Traction Spider SC1500-GHS Hoist Compartment READ THE OPERATOR’S MANUAL BEFORE USING THIS QUICK REFERENCE Controlled Lifting Handle Wire Rope Insertion Descent Lever Point for Optional Secondary Wire Rope Overspeed Brake Trip (Optional) GREEN Power Primary Wire Rope Indicator Light Indicator Light Insertion Point ...
- Page 2 De-reeving Secondary Suspension Wire Rope Test the Overspeed Brake • The secondary suspension wire rope MUST be de-reeved before the primary suspension wire rope. • While powering the hoist UP and DOWN • In order to remove the optional secondary suspension wire rope, there must be no slack on the primary suspension wire approximately 3 feet, look through the window rope and the platform must be supported on a stable surface. into the overspeed compartment to see whether the flywheel is turning. • Remove the counterweight from the end of the secondary suspension wire rope. NOTE: Do NOT use the hoist if you cannot •...
