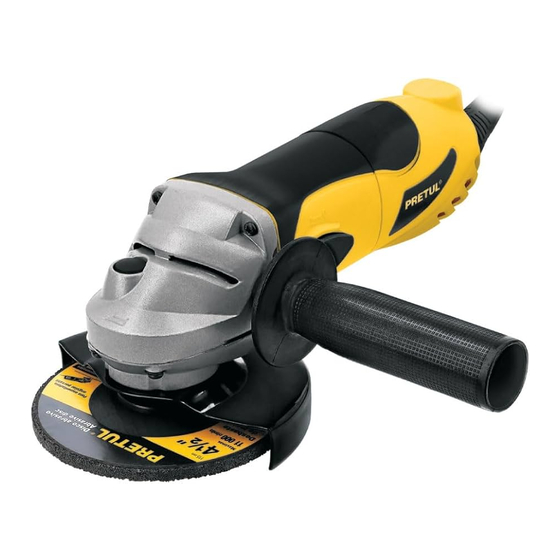

- Page 1 Manual Angle grinder ESMA-4-1/2P2 Applies for: Code Model 24035 ESMA-4-1/2P2 0.93 HP 4 ” Power Disc Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Contents CAUTION Technical Data Power Requirements To gain the best performance of the tool, prolong the duty life, General power tool safety warnings make the Warranty valid if necessary, and to avoid hazards Safety warnings for angle grinders of fatal injuries please read and understand this Manual before Parts using the tool. -
Page 3: Technical Data
Technical Data ESMA-4-1/2P2 Code 24035 Description Angle grinder Discs ” Voltage 127 V Frequency 60 Hz Current 5.3 A Power 0.93 Hp Speed Screwed thread size 11 000 RPM 5/8-11-UNC-1A Duty cycle 20 minutes work per 10 minutes idle. Maximum 1 and a half hour per day. Conductors 18 AWG x 2C with insulating temperature of 221 °F Insulating... -
Page 4: General Power Tool Safety Warnings
General power tool safety warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Angle Grinders
Safety warnings for angle grinders This power tool is intended to function as a cutting tool. Read all safety warnings, instructions and specifications provided.Failure to follow the instructions outlined below may result in electric shock, fire and/or serious injury: While operating the grinder Select the right disc CAUTION •... - Page 6 Safety warnings for angle grinders DANGER KICKBACK (Sharp Recoil) Do not use accessories that are not specifically designed and recommended by the manufacturer. The fact that the Kickback (sharp recoil) is a sudden reaction when a rotating wheel, backrest, brush, or other accessory gets accessory may be installed on the power tool does not ensure safe operation.
-
Page 7: Parts
Parts Protective Lock nut guard wrench (included) Handle Power cord protector Spindle lock Spindle lock Abrasive Disc ” included Auxiliary handle Protective Outer guard Disc flange Switch Inner flange Auxiliary handle assembling orifice Power cord Protective Ventilation guard slots Assembly Lock nut wrench Protective guard assembly... -
Page 8: Start Up
Assembly Auxiliary handle assembly • For a safe operation use the auxiliary handle. Fit the auxiliary handle onto one of the two mounting orifices to make the job easier. Start Up The angle grinder is a manual power tool. It is used to grind and cut steel, pipes, angled iron, bricks, tiles stone and/or ceramic pieces. -
Page 9: Maintenance
Maintenance • Disconnect the plug from the power outlet before cleaning. • Never use water or other type of liquids. Use only a brush. • Clean after each use with compressed air or a brush. Pay special attention to the ventilation slots. •... -
Page 10: Notes
Notes ENGLISH... -
Page 11: Authorized Service Centers
In the event of any problem contacting a Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center. DE TODO PARA LA CONSTRUCCIÓN FIX FERRETERÍAS... -
Page 12: Warranty Policy
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Jilotepec, Edo. de Méx. C.P. 54240 Stamp of the business.
