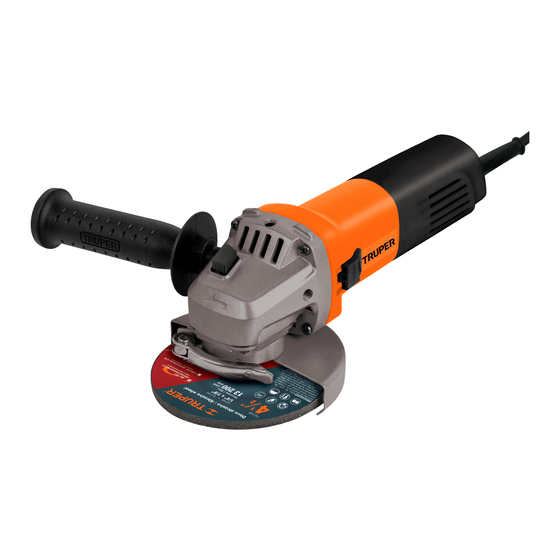

- Page 1 Manual Angle 1 Hp ” grinder Power Disc Applies for: Code Model 16683 ESMA-4-1/2A9 ESMA-4-1/2A9 Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Manual before Parts using the tool. Assembly Keep this manual for future references. Start Up The illustrations in this manual are for reference Maintenance only. They might be different from the real tool. Notes Authorized Service Centers Warranty Policy ESMA-4-1/2A9 ENGLISH... -
Page 3: Technical Data
Technical Data ESMA-4-1/2A9 Code 16683 Description Angle grinder Discs ” Voltage 127 V Frequency 60 Hz Current 5.9 A Power 1 Hp Speed 11 000 RPM Duty cycle 30 minutes work per 15 minutes idle. Maximum 3 hours per day. -
Page 4: General Power Tool Safety Warnings
General power tool safety warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Angle Grinders
Safety warnings for angle grinders This power tool is intended to function as a cutting tool. Read all safety warnings, instructions and specifications provided. WARNING Select the right disc • Wear safety glasses, gloves and an apron when using the tool. CAUTION •... - Page 6 Safety warnings for angle grinders DANGER KICKBACK (Sharp Recoil) Abrasive discs are used for perfect grinding. If lateral forces are applied, they can break; Kickback (sharp recoil) is a sudden reaction when a e) Always use flanges in perfect condition, of the correct rotating wheel, backrest, brush, or other accessory gets size according to the shape of the selected disk.
-
Page 7: Parts
Parts Lock nut wrench (Included) Protective Fixing screw guard Handle Axis lock Switch ” abrasive disc included model ABT-386 Axis Auxiliary lock handle Protective Outer guard ” abrasive flange disc included Switch Inner Vent flange slots Auxiliary handle assembling orifice Power cord protector Protective... -
Page 8: Start Up
Assembly Auxiliary handle assembly • For a safer operation use the auxiliary handle. Fit it into any of the three mounting orifices. Use the one that makes your job easier. Start Up The angle grinder is a manual power tool used to grind and cut steel, pipes, iron angles, brick, tile, stone and / or ceramic pieces;... -
Page 9: Maintenance
Maintenance • Always disconnect the tool before cleaning. • Never use water or other liquids. Use only a brush. • To prevent the motor to overheat clean the ventilation slots regularly. • Check all the tool components are perfectly fixed. •... -
Page 10: Notes
Notes ENGLISH... -
Page 11: Authorized Service Centers
In the event of any problem contacting a Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center. DE TODO PARA LA CONSTRUCCIÓN FIX FERRETERÍAS... -
Page 12: Warranty Policy
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Jilotepec, Edo. de Méx. C.P. 54240 Stamp of the business.
