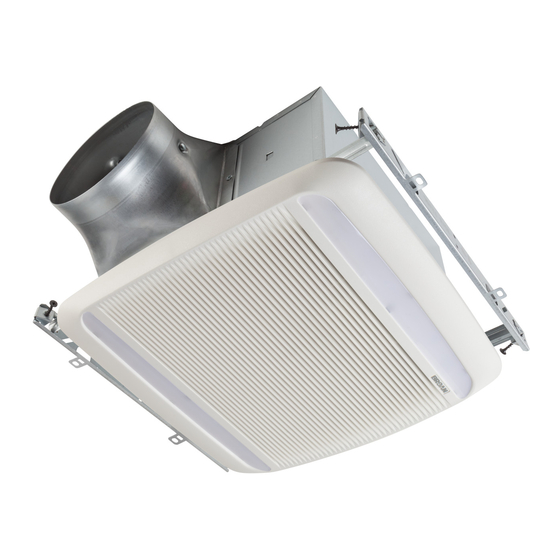

X2 multi-speed ventilation fan with dimmable light
Hide thumbs
Also See for Ultra Green ZB110L1:
- Installation manual (20 pages) ,
- Installation manual (28 pages)
Table of Contents
Advertisement
Quick Links
READ AND SAVE THESE INSTRUCTIONS
Installer: leave this guide with homeowner.
Register your product online at www.broan.com/register.
Easy installation in both
new construction and retrofit
© 2017 Broan
ZB80L1
ZB110L1
n
X2 | Multi-Speed Ventilation
Fan with Dimmable Light
INSTALLATION GUIDE
Table of Contents
2
2
3
7
12
12
12
13
13
