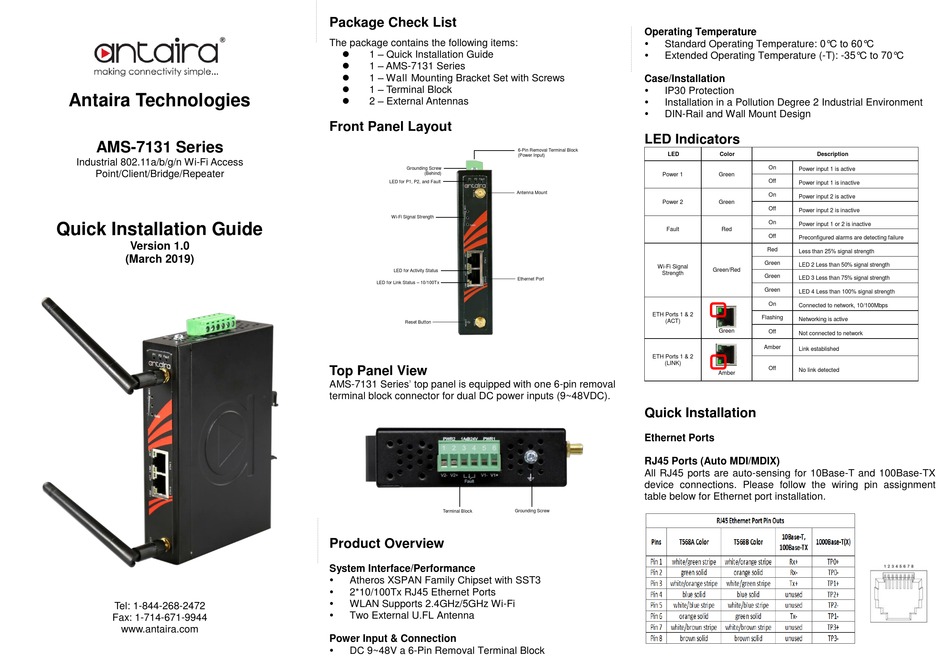

ANTAIRA AMS-7131 Series Quick Installation Manual

Antaira Technologies
AMS-7131 Series
Industrial 802.11a/b/g/n Wi-Fi Access
Point/Client/Bridge/Repeater
Quick Installation Guide
Version 1.0
(March 2019)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick Installation Guide
⚫ 1 – AMS-7131 Series
⚫ 1 – Wall Mounting Bracket Set with Screws
⚫ 1 – Terminal Block
⚫ 2 – External Antennas
Front Panel Layout
Grounding Screw
(Behind)
LED for P1, P2, and Fault
Wi-Fi Signal Strength
LED for Activity Status
LED for Link Status – 10/100Tx
Reset Button
Top Panel View
AMS-7131 Series' top panel is equipped with one 6-pin removal
terminal block connector for dual DC power inputs (9~48VDC).
Terminal Block
Product Overview
System Interface/Performance

Atheros XSPAN Family Chipset with SST3

2*10/100Tx RJ45 Ethernet Ports

WLAN Supports 2.4GHz/5GHz Wi-Fi

Two External U.FL Antenna
Power Input & Connection

DC 9~48V a 6-Pin Removal Terminal Block
Operating Temperature

Standard Operating Temperature: 0°C to 60°C

Extended Operating Temperature (-T): -35°C to 70°C
Case/Installation

IP30 Protection

Installation in a Pollution Degree 2 Industrial Environment

DIN-Rail and Wall Mount Design
LED Indicators
6-Pin Removal Terminal Block
LED
(Power Input)
Power 1
Antenna Mount
Power 2
Fault
Wi-Fi Signal
Strength
Ethernet Port
ETH Ports 1 & 2
(ACT)
ETH Ports 1 & 2
(LINK)
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI/MDIX)
All RJ45 ports are auto-sensing for 10Base-T and 100Base-TX
device connections. Please follow the wiring pin assignment
table below for Ethernet port installation.
Grounding Screw
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Preconfigured alarms are detecting failure
Red
Less than 25% signal strength
Green
LED 2 Less than 50% signal strength
Green/Red
Green
LED 3 Less than 75% signal strength
Green
LED 4 Less than 100% signal strength
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
Amber
Link established
Off
No link detected
Amber
