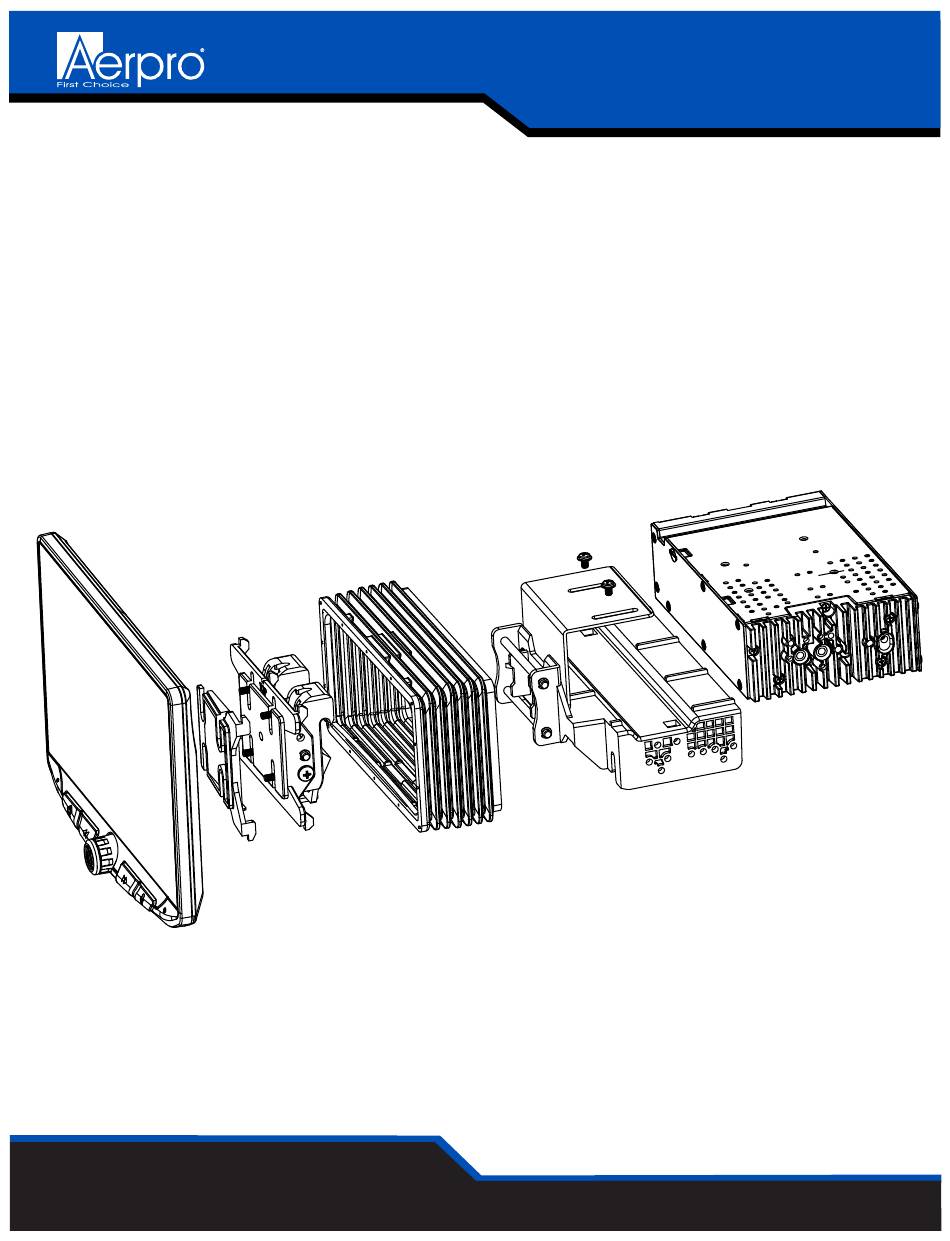

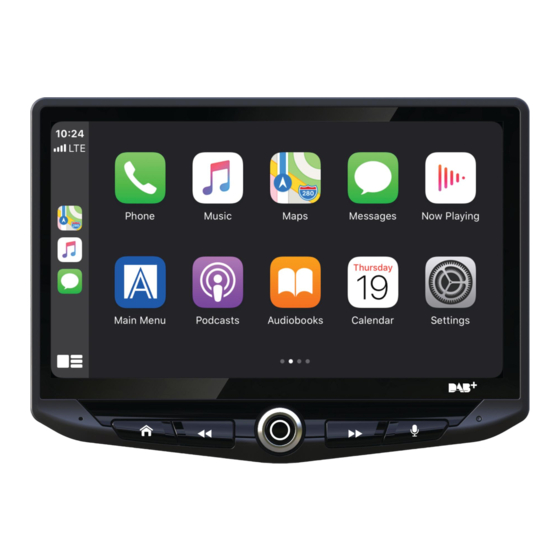

- Page 1 AERA10D INSTALLATION GUIDE 10" MULTIMEDIA RECEIVER MODEL NUMBER: AERA10D Copyright © 2022 aerpro.com...
- Page 2 User Guide | Install Guides | Updates | Tech Tips TECHNICAL ASSISTANCE: If you need assistance setting up or using your Aerpro product now or in the future, call Aerpro Support. Australia. Mon-Fri 9am – 5pm AEST TEL: 03 – 8587 8898 FAX: 03 –...
-
Page 3: Table Of Contents
INSTALLATION GUIDE CONTENTS Contents............3 Parts List............4 Hardware Guide..........5 Pre-Assembly...........6 Display Assembly..........7 Mounting Options..........7 Double DIN Dash Kit Mounting.......8 Double DIN Sub-Dash Kit Mounting....10 Double DIN Factory Bracket Mounting....12 Single DIN Dash Kit Mounting......14 Final Assembly..........16 Wiring & Connections........17 Dimensions............21 Troubleshooting..........22 Upgrades/Options.........23... -
Page 4: Parts List
Parts List DESCRIPTION Touch Panel Display Radio Module Mounting Brackets / Hardware Plastic Dash Mounting Bracket Display Mounting Clamp Metal Mounting Bracket Horizontal Display Angle Plate Rubber Boot M4 X 6 Screw M4 X 10 Screw M4 X 12 Screw M4 X 14 Screw M4 x 18 Screw M5 x 10 Screw... -
Page 5: Hardware Guide
Hardware Guide M4 X 6 M4 X 10 M4 X 12 M4 X 14 M4 X 18 #10 X 3/8 M5 X 10 NOTE: Depending on the installation, not all screws will be used. Note: The 2 Backstrap (SE-1003) can be used in some applications to add additional support or used in custom installations. The backstrap may mount to the sides of the radio chassis using the provided screws in the existing mounting locations or can be mounted directly to the Plastic Dash Mounting Bracket. -
Page 6: Pre-Assembly
Pre-Assembly M4 X 6 Optional Cable Channel Radio Module Double DIN Applications: Attach the Metal Bracket to the Plastic Dash Mounting Bracket using M4 X 6 screws. Attach metal bracket and plastic dash mounting bracket assembly to the Metal Radio Module using M4 X 6 screws. Bracket M4 X 6 Plastic Dash... -
Page 7: Display Assembly
Using a Double DIN Sub-Dash Kit (PAGE 10) Using a Double DIN Factory Radio Mounting Brackets (PAGE 12) Using a Single DIN ISO Mountable Dash Kit, relocating Radio Module (PAGE 14) Custom Mounting Applications. See Aerpro website for TECH TIPS on vehicle specific installations. -
Page 8: Double Din Dash Kit Mounting
Using a Double DIN Dash Kit: Radio chassis mounts to the brackets attached to the kit main frame Display Adjustment & Mounting: 1. Install the dash kit side brackets to the main frame. 2. Making sure to use all 8 screws, loosely attach the radio module & mounting bracket assembly to the side kit brackets (FIG. - Page 9 FIG. E 4. Determine the desired position of the display: a. Display can be vertical or tilted up (FIG. E) b. Display can slide up or down (Page 7) c. Display can be tilted horizontally (Page 7 – FIG. B) M5 X 10 Note: There are multiple mounting holes on the mounting bracket to allow adjusting the...
-
Page 10: Double Din Sub-Dash Kit Mounting
Using a Double DIN Dash Kit: Radio chassis mounts to the kit brackets in the sub-dash, not to the kit main frame Display Adjustment & Mounting: 1. Use all 8 kit mounting screws to attach the radio module & plastic mounting bracket assembly to the kit brackets at the front most location (not to exceed the front of the kit bracket). - Page 11 FIG. J 4. Attach the display to the mounting bracket assembly by hooking bottom spring hook and then pushing up and hooking top hooks. (FIG. J) 5. Determine the desired position of the display: a. Display can be vertical or tilted up (FIG. K) HOOK BOTTOM b.
-
Page 12: Double Din Factory Bracket Mounting
Using Factory Radio Brackets: Radio chassis mounts to the factory brackets in the sub-dash Display Adjustment & Mounting: 1. Use all 8 kit mounting screws to attach the radio module & plastic mounting bracket assembly to the factory brackets. (FIG. M) a. - Page 13 FIG. O 4. Attach the display to the mounting bracket assembly by hooking bottom spring hook and then pushing up and hooking top hooks. (FIG. O) 5. Determine the desired position of the display: HOOK BOTTOM a. Display can be vertical or tilted up (FIG. P) FIRST, THEN TOP b.
-
Page 14: Single Din Dash Kit Mounting
Using a Single DIN ISO Mountable Dash Kit: Radio chassis mounts separately into the sub-dash Display Adjustment & Mounting: 1. Install the dash kit brackets to the main frame. 2. Making sure to use 4 screws, loosely attach the plastic mounting bracket assembly to the side kit brackets. - Page 15 FIG. T 4. Determine the desired position of the display: a. Display can be vertical or tilted up (FIG. T) b. Display can slide up or down (Page 7) C. Display can be tilted horizontally (Page 7 – FIG. B) M5 X 10 Note: There are multiple mounting holes on the mounting bracket to allow adjusting the mounting depth.
-
Page 16: Final Assembly
Final Assembly BOOT ASSEMBLY PLASTIC "TAB" HAS TO GO INTO A NOTCH (DISPLAY UNIT NOT SHOWN) If needed, attach the rubber boot to the display clamp assembly by aligning the notch on the top edge as shown, and hook the boot to the clamp at 5 locations. -
Page 17: Wiring & Connections
Wiring and Connections Display Cable Multi Camera Power / Speaker GPS Antenna HDMI Input LVDS Cable USB1 CP/AA DAB Antenna 15 Amp Fuse USB2 Radio Antenna TOSLINK AV In/Out - Rear Camera Microphone The top USB1 must be used for Apple CarPlay and Android Auto. - Page 18 Wiring and Connections 16 Pin Power / Speaker Harness Connect radio power and speaker connections to a vehicle specific harness (sold separately) referencing diagram below. REAR L - FRONT L - REAR L + FRONT L + REAR R - FRONT R - REAR R + FRONT R +...
- Page 19 Wiring and Connections 24 Pin AV / Rear Camera Harness Audio/Video Inputs & Outputs / Rear Camera Video Input / Resistive Steering Wheel Control Inputs To program SWC, go to SETTINGS > Systems Settings > Installer Settings > Passcode:0052 > Advanced Vehicle Settings >...
- Page 20 Wiring and Connections 6 Pin SWI / IR Harness 3.5mm Input for optional Steering Wheel Control Interface (PAC Audio SWI-CP2 is recommended for full compatibility and advanced features. Visit PAC-Audio.com) ORANGE Steering Wheel Control Input External IR input EXTERNAL IR BLACK 4 Pin Microphone / Camera Audio Harness Input for External Microphone (included) used for hands-free calling, Apple CarPlay and Android...
-
Page 21: Dimensions
Dimensions (in) 9.73 0.80 1.44 0.47 DIMENSIONS ARE IN INCHES 7.01 4.33 4.57 DIMENSIONS ARE IN INCHES... -
Page 22: Troubleshooting
Troubleshooting General Video/Cameras Rear Camera not displaying in reverse Black Screen with Audio - Make sure rear camera trigger is ON - Touch the screen anywhere as it may have (MENU > CAMERAS > CAMERA SETTINGS) been turned off. - If display is showing NO SIGNAL in reverse, Ensure the display cables on the back of ..ensure camera RCA is plugged into the display are fully locked into place and... -
Page 23: Upgrades/Options
® AERA10D ® NOTES: aerpro.com Copyright © 2022...
