Summary of Contents for Aerpro AERA10D

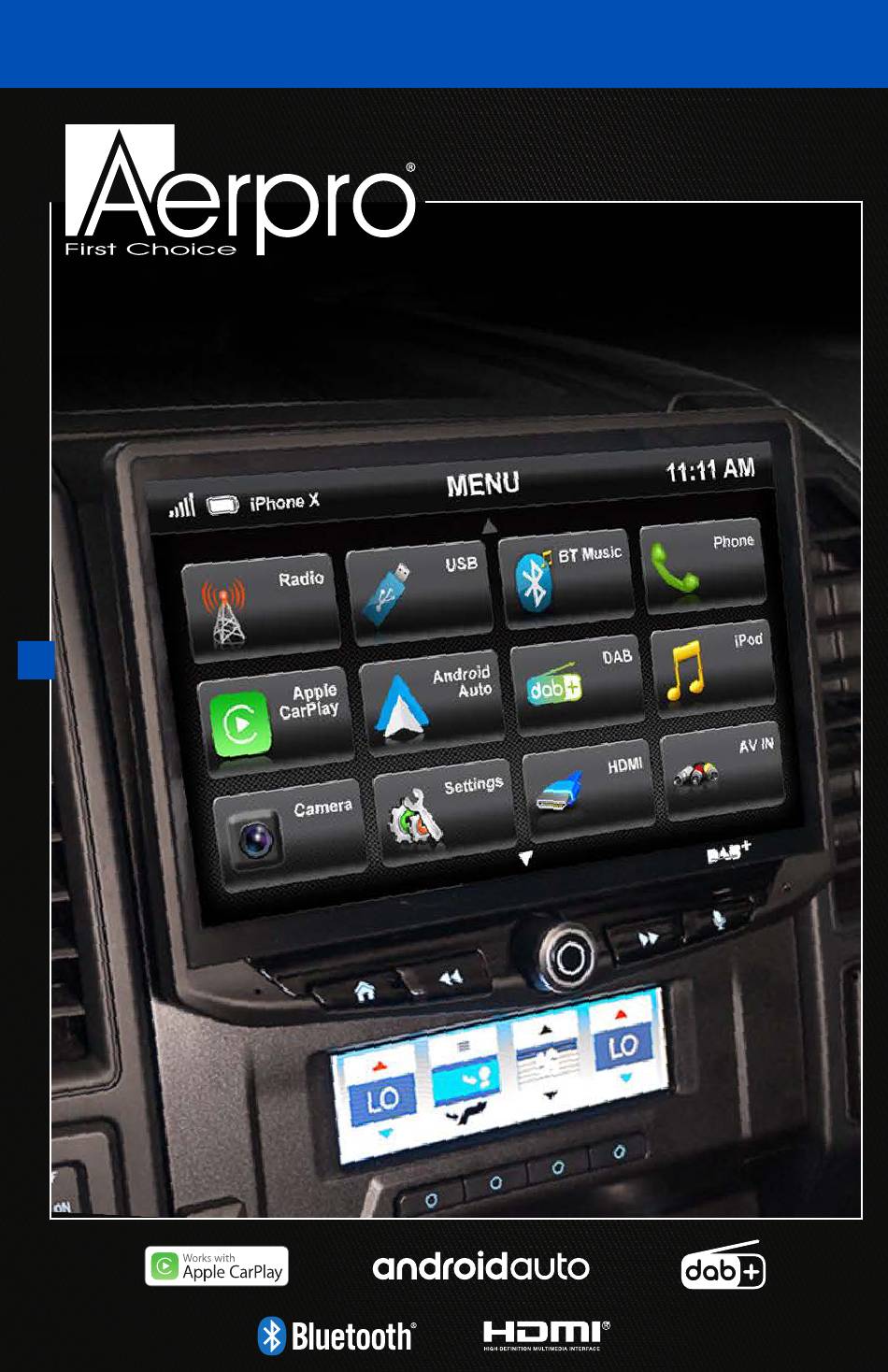

- Page 1 AERA10D 10” MULTIMEDIA RECEIVER USER GUIDE aerpro.com...
- Page 2 If you need assistance setting up or using your If you would like to download a digital copy of Aerpro product now or in the future, call Aerpro this manual, or other Aerpro manuals/software, Support. Australia. Mon-Fri 9am – 5pm AEST please visit the Aerpro.com website and search...
-
Page 3: Table Of Contents
AERA10D CONTENTS The Basics.........4 Settings........24 Getting Started......6 Clock........24 AM/FM Radio......8 System Settings.....24 Bluetooth Phone......9 Illumination......25 Pairing a Device....10 Backgrounds......26 BT Device Settings....11 Display........26 Contacts/Call Log....12 Tabs........26 Bluetooth Music.....13 Camera.........27 DAB+ Digital Radio....14 Reset Button......27 DAB+ Channels/Settings..16 Sound Settings......28 USB Media......17 Equalizer.........29... -
Page 4: The Basics
THE BASICS Internal Microphone Home Button Jump to the Home Menu Tune/Track Down Button Media control Previous, Back, Seek Press & hold function in select sources Multifunc Press & Hold to Turn to adjust Vo Press to Mu aerpro.com... - Page 5 AERA10D Reset Button Voice Button Launches voice control Tune/Track Up Button Media control Next, Forward, Seek Press & hold function in select sources ction Knob o Power On/Off olume Up/Down ute/Unmute aerpro.com...
-
Page 6: Getting Started
Also, dimmed out. Once the Tabs are opened, displays time, phone info and may the will auto-close after 5 seconds or press contain BACK ARROW and EXIT the down arrow to close the tabs. buttons. aerpro.com... - Page 7 AERA10D SELECTING A SOURCE To select a source, press the HOME button. The HOME MENU displays all Sources, along with Settings, Audio, Display and Camera options. SOURCES that are not currently available are grayed out. QUICK TIP There are multiple ways to scroll...
-
Page 8: Am/Fm Radio
Touch to toggle between Tune Down. Press and hold to Seek the Distant (DX) and Local (LOC). next available radio station. Auto Preset - Touch to automatically Station Display - Displays current set the 6 presets with current location frequency. radio stations. aerpro.com... -
Page 9: Bluetooth Phone
AERA10D Bluetooth PHONE Press the HOME BUTTON > Phone to select the Phone Number Pad - Touch to launch Device Info - Displays the name of the number pad for dialing phone the currently paired device, signal numbers. strength and battery status. -
Page 10: Pairing A Device
Place your device in Discoverable Mode. Select ADD on the Devices page Select your device from the list. NOTE! If your device does not appear in the device list, confirm it is discoverable and select Retry Select Connect to initiate pairing aerpro.com... -
Page 11: Bt Device Settings
AERA10D Bluetooth PHONE Select Pair when prompted. Confirm Key Code on device and select Pair on device. If prompted, select Allow to share contacts NOTE! Once a device is paired, it will automatically connect whenever the system is turned on and the device is within range. -
Page 12: Contacts/Call Log
Phone main menu. To Search your contact list, select the keyboard icon on the Information Bar. Call Log The Call Log lists recently Dialed, Received and Missed calls. Touch the contact or phone number to dial a number. aerpro.com... -
Page 13: Bluetooth Music
AERA10D Bluetooth MUSIC Press the HOME BUTTON > BT Music to select the BT Music source Next Track/Program - Touch to advance to the Next track/Program. Play/Pause - Touch to play or pause the audio. Previous Track/Program - Touch once to restart current track, touch again for Previous track. -
Page 14: Dab+ Digital Radio
DAB radio gives you access to a range of popular stations not available on FM frequencies including Talksport, Absolute Radio, Virgin Radio and Radio X. For more information about DAB radio, visit www.worlddab.org/dab. aerpro.com... - Page 15 AERA10D DAB+ Digital Radio Press the HOME BUTTON > DAB+ to select the DAB+ radio source. Settings - Select to edit features and Channel Presets - To assign a preset, go to desired channel, press and functions of the DAB operation.
-
Page 16: Dab+ Channels/Settings
Entering the settings tab enables you to switch options involving FM to DAB and DAB to DAB Linking to ensure a seamless DAB connection whilst travelling. It also provides an option for 'Antenna Power' if the vehicle features a powered DAB antenna. aerpro.com... -
Page 17: Usb Media
AERA10D USB Media With a USB drive plugged in - press the HOME BUTTON > USB to select USB. From the USB Root Menu you can browse Audio, Video and Image files. USB Root Menu See page 37 for a list of supported file types. -
Page 18: Apple Carplay
3. Select Customize 4. Use the add or delete icons to add or remove apps. Tap and drag an app to change the icon order. To exit Apple CarPlay, press the Aerpro Main Menu icon. For details about Apple CarPlay, visit https://support.apple.com/en-us/HT205634... -
Page 19: Android Auto
AERA10D Android Auto Set up Android Auto Make sure your phone is running Android 5.0 (Lollipop) or later. Download the Android Auto app from Google Play on your device. Once the app is installed, open the app and follow the setup steps. -
Page 20: Ipod
Browse - browse artist, album or songs. Keyboard - direct input song search Repeat - Press once to repeat the current track (1), press again to repeat album/folder (F). Shuffle - Plays tracks in random order. Browse and Select by Artists, Albums, Playlists, Songs... aerpro.com... -
Page 21: Hdmi
AERA10D HDMI INPUT Press the HOME BUTTON > HDMI to switch to the HDMI input. The HDMI input can be used for an external DVD player, streaming sticks, media players, smartphone mirroring. You can only view HDMI content with the vehicle in Park and the parking brake ON. -
Page 22: Cameras
Reverse gear and remain On until the speed reaches above 5MPH or the display is touched. Reverse Camera Audio [ON-OFF] When set to ON and a microphone is connected, back up camera audio will be heard through the vehicle's speakers. aerpro.com... -
Page 23: Hema Maps Navigation
Hema Maps The Aerpro AMHXD3 Hema Maps Navigation Module seamlessly integrates On-Road and Off-Road Navigation onto the head unit display in your vehicle. Optimised for Aerpro Multimedia Receivers and compatible with various aftermarket head units*, the AMHXD3 simply connects via the Apple CarPlay USB port. Experience turn by turn street navigation provided by HERE Technologies and Hema Maps’... -
Page 24: Display Off
Load Defaults [RESET] Selecting Reset will reset all settings to factory defaults. This process takes 5-7 minutes and system must NOT be shut down during the reset. Installer Settings [ENTER] See Installation Guide or Firmware Update Instructions for more information. aerpro.com... -
Page 25: Illumination
AERA10D SETTINGS Settings > System Settings > Apple CarPlay Device Mode [OFF-CarPlay-iPod] Determines how iPhone will be used when plugged into USB port. OFF is charging only. Mic Gain [LOW-MED-HIGH] Sets microphone gain (sensitivity) when using Apple CarPlay. Settings > System Settings > Android Auto Android Auto [ON-OFF] Set to OFF for charging only with Android devices. -
Page 26: Display
The Tabs are customizable and can be configured to include favorite sources or settings. To Program a Tab: 1) Select a Tab position (1-7) on the bottom row 2) Select the desired source or setting from the options on the top rows. aerpro.com... -
Page 27: Camera
AERA10D SETTINGS Settings > Camera Settings Cam1-4 Label [REAR-OUTSIDE-AUX-INSIDE-BED-TRAILER] Allows custom labeling for multiple cameras Cam 1-3 Trigger [ON-OFF] Set individual camera triggers ON/OFF Cam 4 Trigger [ON-OFF-VSS] Set Camera 4 trigger ON, OFF or Vehicle Speed Sense. Use VSS Mode when parallel parking aid is desired (front camera and VSS wire need to be connected). -
Page 28: Sound Settings
Turns subwoofer output ON/OFF Press to set balance and fade to zero (0) Phase [0°-180°] Audio Menu Bar Changes phase of subwoofer signal. Access to Equalizers, Crossovers and Time Correction Sub Level [0-15] Adjusts volume level of subwoofer output. aerpro.com... -
Page 29: Equalizer
AERA10D SOUND SETTINGS Sound Settings > Equalizer Selecting Equalizer from the Audio Menu Bar will bring up the 15 band graphic equalizer and presets. Frequency adjustments can be made by touching and sliding the frequency sliders up/down. Once the desired sound is achieved, it can be saved as a Preset. -
Page 30: Crossover
Saving Crossover Settings There are 6 user Presets that can be used to save Crossover settings. When you are done adjusting the Crossover, touch and hold a Preset location to save the settings. The Preset will highlight. aerpro.com... -
Page 31: Time Correction
AERA10D SOUND SETTINGS Sound Settings > Time Correction Select milliseconds or inches Selecting Time Correction from the Audio Menu Bar will access the Time Correction settings. Time Correction settings can be saved and recalled via Presets. Time Correction compensates for the uneven distances between the speakers and a listeners ears. -
Page 32: Toslink
LAST will be same level as when unit was shut off. CUSTOM will be a preset level adjusted below. Volume Slider [0-40] Adjusts CUSTOM volume level to specific level. The Volume Mode is adjustable for Bluetooth(BT), Navigation(NAV) and Voice using the same procedure. aerpro.com... -
Page 33: Reset Button
AERA10D TROUBLE SHOOTING General Apple CarPlay Black Screen with Audio Apple CarPlay will not start/launch Touch the screen anywhere as it may have - Ensure you are using a Apple certified been turned off, see page 24. ..cable Ensure the cables on the back of the screen... -
Page 34: Specifications
Audio output level (max): 4.0V preout AM TUNER EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 530KHz to 1710KHz 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ Usable sensitive 0dB (mono S/N:20dB) 10KHz/16KHz SNR 58dB Gain: ±12dB (2dB/step) HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz CAMERA(S) VIDEO INPUTS Slope: 6dB, 12dB, 18dB NTSC OR PAL video formats aerpro.com... - Page 35 AERA10D SPECIFICATIONS AUDIO/VIDEO FORMATS HDMI INPUT Supported HDMI Resolutions: AUDIO 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p MPEG-1 Audio Layer-3 (.mp3) FLAC (.flac) MPEG-2 Advanced Audio (.aac) TOSLINK (OPTICAL) MPEG-4 Audio (.m4a) Output: 48khz Variable Windows Audio (.wav) OGG Audio (.ogg) BACKGROUND IMAGE (USER)
