OPTIONAL LINE MONITORING RESISTOR, CUSTOMER SUPPLIED,
REQUIRED MINIMUM VALUES:
24VDC : 1KΩ MIN, 2W MIN OR 3K9Ω MIN, 0.5W MIN
48VDC : 3.9KΩ MIN, 2W MIN OR 15KΩ MIN, 0.5W MIN

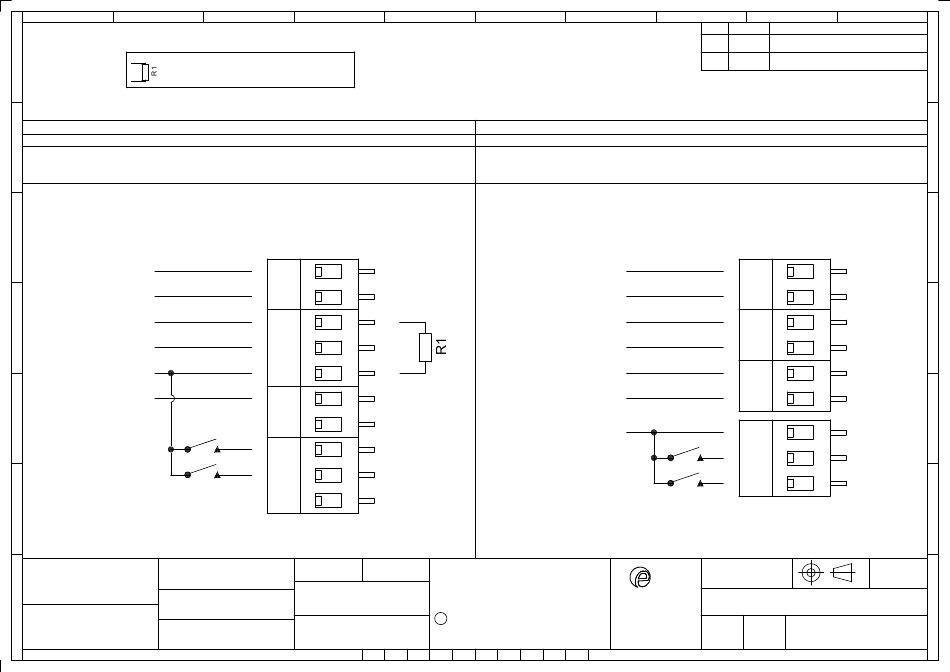

DC E2XS1/ S2 UNITS
Line Monitoring
B
Stage 1: Apply power to Sounder +ve & -ve
Stage 2: Apply power to Sounder +ve & -ve. Connect Stage 2 to -ve
Stage 3: Apply power to Sounder +ve & -ve. Connect Stage 3 to -ve
C
EARTH IN
EARTH OUT
+ve IN
D
+ve OUT
-ve IN
-ve OUT
E
STAGE 2
STAGE 3
F
DRAWING TO BS8888:2000
DRAWN
GEOMETRIC TOLERANCES TO ISO1101:1983
LINEAR DIMENSIONAL TOLS R.S.RAIT
ANGULAR DIMENSIONAL TOLS
CHECKED
G
R.N.POTTS
STANDARDS
Ex N
APPROVED
R.N.POTTS
3 4
E
E
+
+
-
-
S2
S2
S3
S3
SURFACE FINISH WEIGHT (Kg)
DATE
05/08/2020
MATERIAL
DATE
05/08/2020
ALTERNATIVE MATERIAL
DATE
05/08/2020
5 6
AC E2XS1/ S2 UNITS
Power: Live & Neutral
Stage 1: Apply power to Sounder L & N
Stage 2: Apply power to Sounder L & N. Connect Stage 2 to Common
Stage 3: Apply power to Sounder L & N. Connect Stage 3 to Common
LIVE IN
LIVE OUT
NEUTRAL IN
NEUTRAL OUT
EARTH IN
EARTH OUT
COMMON
STAGE 2
STAGE 3
