Aruba AP25 Installation Manual

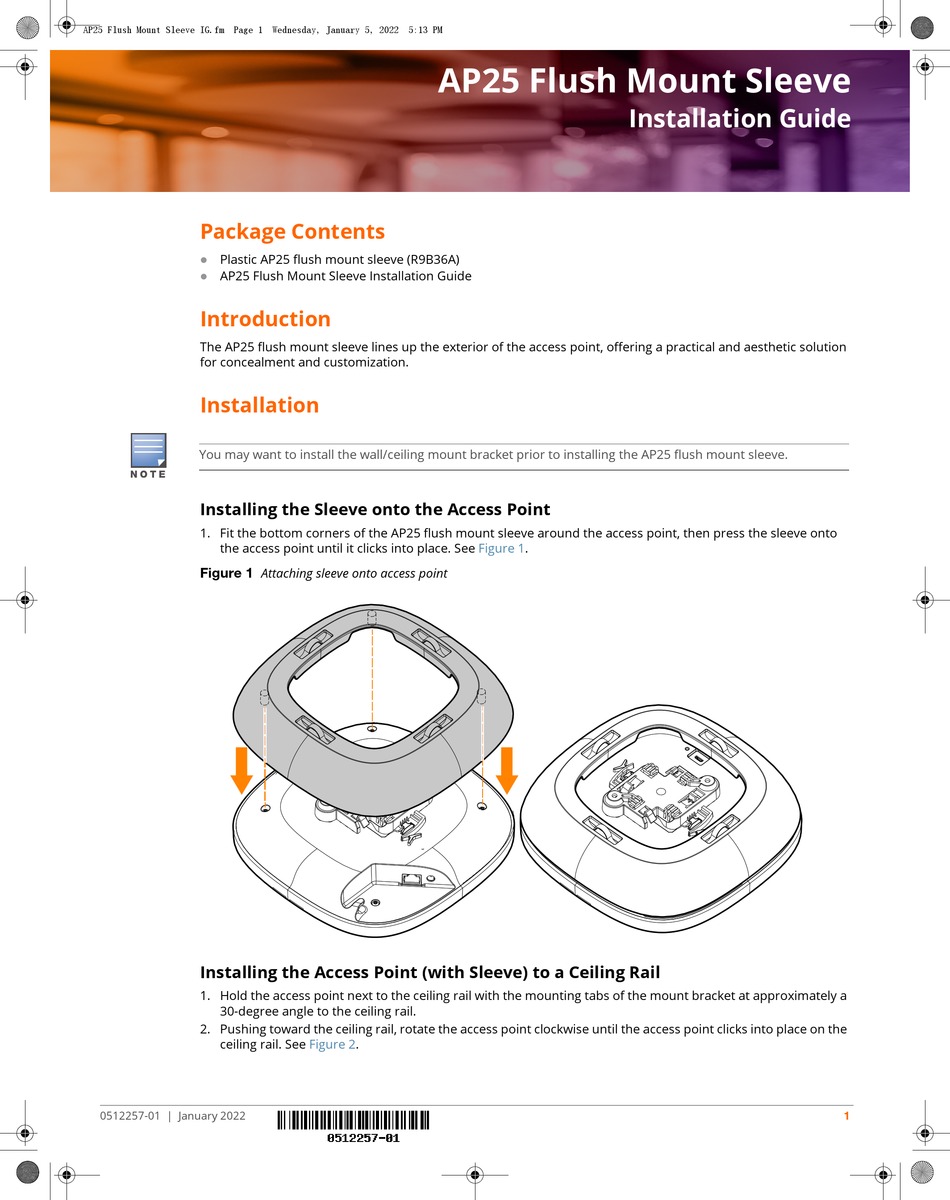

AP25 Flush Mount Sleeve IG.fm Page 1 Wednesday, January 5, 2022 5:13 PM

Package Contents

Plastic AP25 flush mount sleeve (R9B36A)

AP25 Flush Mount Sleeve Installation Guide


Introduction

The AP25 flush mount sleeve lines up the exterior of the access point, offering a practical and aesthetic solution
for concealment and customization.

Installation

You may want to install the wall/ceiling mount bracket prior to installing the AP25 flush mount sleeve.

Installing the Sleeve onto the Access Point

1. Fit the bottom corners of the AP25 flush mount sleeve around the access point, then press the sleeve onto
the access point until it clicks into place. See
Attaching sleeve onto access point
Figure 1
Installing The Access Point (With Sleeve) To A Ceiling Rail
1. Hold the access point next to the ceiling rail with the mounting tabs of the mount bracket at approximately a
30-degree angle to the ceiling rail.
2. Pushing toward the ceiling rail, rotate the access point clockwise until the access point clicks into place on the
ceiling rail. See
0512257-01 | January 2022
AP25 Flush Mount Sleeve
Figure
Figure 2.
Installation Guide
1.
1
