Aruba EdgeConnect EC-US Quick Start Manual

Quick Start Guide
IMPORTANT - READ THIS FIRST:
with the Silver Peak Cloud Portal BEFORE setting up an EdgeConnect appliance. After
Orchestrator is registered with your account name and key, you can proceed with
EdgeConnect
EdgeConnect installation.
If you don't know or are unsure what role the Orchestrator plays, please contact your
network architect or deployment lead.
EC-US
1

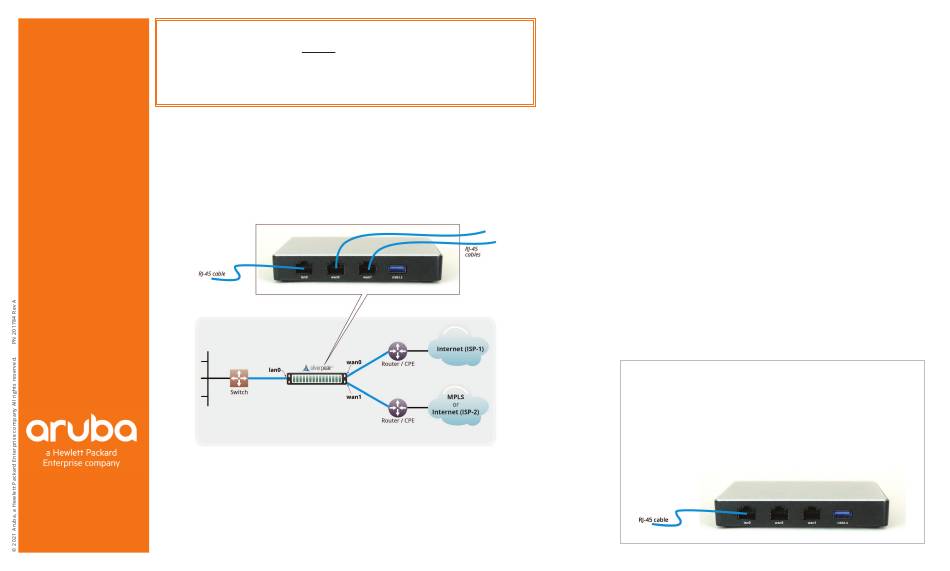

Install the Appliance into the Network
a. Identify the relevant ports on the rear of the appliance.
Part 1 - Physical Installation
b. Connect the supplied network cables from the appliance to the identified network equipment
ports.
c. DO NOT connect the power cable yet.
Before You Begin
Check your packing slip to verify
‰
that you have all the necessary
items.
On the network equipment, iden-
‰
tify the 10/100/1000 Ethernet
ports.
All copper RJ-45 Gigabit Ethernet interfaces in the Silver Peak appliance support MDI/MDI-X and
auto-negotiation.
Aruba
6280 America Center Drive
San Jose, CA 95002
1.877.210.7325 (toll-free in USA)
+1.408.935.1850
www.silver-peak.com/support
You must install and register your Orchestrator
2
Connect Power Cord
Connect the power cable to the Silver Peak appliance and to your local power source.
3
Turn the Power On
a. The appliance powers up as soon as it's plugged in.
b. On the front panel, verify that the Power LED illuminates green.
You've now completed the physical installation and are ready to register the product with Unity
Orchestrator.
Static Assignment of IP Address
If an IP address is not dynamically assigned to wan0 or wan1, then you
must configure it manually. To do this, access the appliance configuration
wizard through lan0.
Silver Peak assigns the lan0 ethernet interface a default IP address of
169.254.0.1 and a subnet mask of /16 (the same as 255.255.0.0).
