VaporFlame 6b Instruction Manual

VaporFlame 6b Instruction Manual

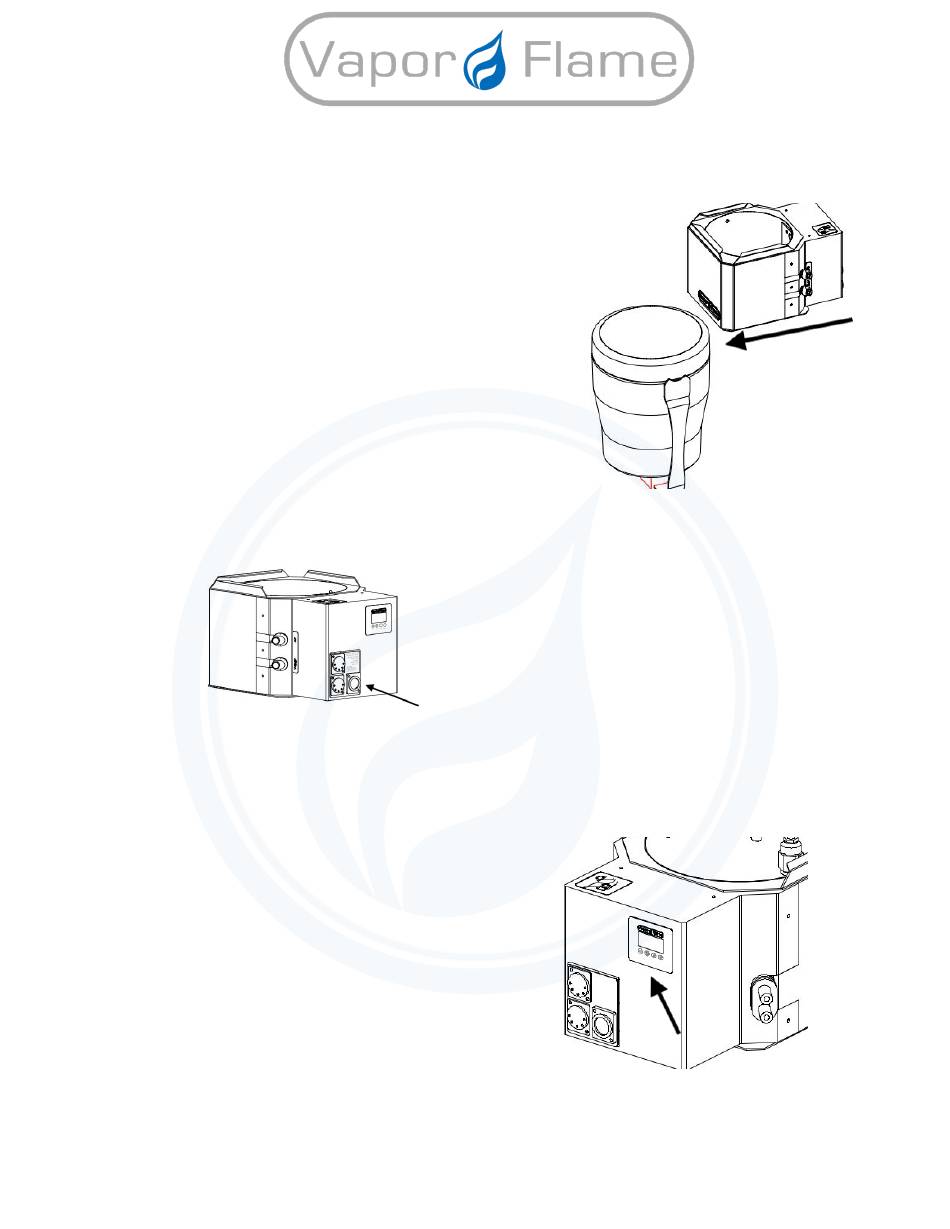

1. Attach 6b unit to the light source.
1.1.The 6b requires a 7.5"gel frame slot.
1.2.The bottom edge of the 6b unit slides into the
standard gel frame slot such as on a standard 6"
Leko or many LED Par fixtures. (outside
dimensions of a standard 6 inch frame are 7.5" x
7.5").
1.3. Slide the edges of the 6b chassis all the way into
the gel frame slot.
3. Set the DMX address.
3.1.Choose MENU.
3.2.Use UP/DOWN buttons until D001 is
displayed.
3.3. Choose ENTER
3.4.Use UP/DOWN to select the desired start
address.
3.5. Choose ENTER.
3.6.DMX start address is now set.
2.Connect Power and Data to the 6b.
2.1.The 6b is powered by the included PowerCON
True1 connector.
2.2."Data In" and "Data Through" are via the 5 pin
DMX connectors.
2.3.Align the notches on the connector with the
notches on the unit's power port, push in and turn
clockwise until the connector clicks into place.
2.4.The 6b requires an input voltage of 100-240 VAC.
2.5.The 6b draws 2.5 amps @110 VAC.
Page 1 of 4 Rev 1.3 -7/19
