VaporFlame VFE-L Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VFE-L Manual
Page
1
of
11
Rev. 1.0 4/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFE-L and is the answer not in the manual?

Questions and answers

Related Manuals for VaporFlame VFE-L

Summary of Contents for VaporFlame VFE-L

  • Page 1 VFE-L Manual Page Rev. 1.0 4/21...

  • Page 2: Table Of Contents

    3. Meet The VFE-L! VFE-L Main Features Product Description 4. Setup Set the VFE-L in a “Lid-up” Orientation. (FIG. 1) Fill The Water Tank with Clean Potable Water. (FIG. 2) Power the Engine (FIG. 3) Switch On The Air Compressor. (FIG 4)

  • Page 3: Getting Started

    1 x VaporFlame Blow Off Valve “Let’s Unpack That…” Hey! Look at that! You are the proud owner of a shiny new VaporFlame Engine. You now have the power to make “fire” from water- Pretty cool huh? As you unpack your VaporFlame engine from its shipping material make sure all the parts are present.

  • Page 4: Safety Instructions

    •The Engine MUST be in a ‘lid up” orientation for running. •Use The Engine for only one type of VaporFlame fixture at a time. (Each fixture requires a different air pressure and The Engine can only be set on a one air pressure at a time.
  • Page 5 • DO NOT run The Engine with additional padding. Doing so may cause The Engine to overheat. • PROTECT THE UNIT FROM FREEZING. DO NOT operate at ambient temperatures lower than 20°F (-6°C) or higher than 104°F (40°C). DO NOT allow water to remain in the unit with the unit OFF at ambient temperatures lower than 40°F (4°C).

  • Page 6: Meet The Vfe-L

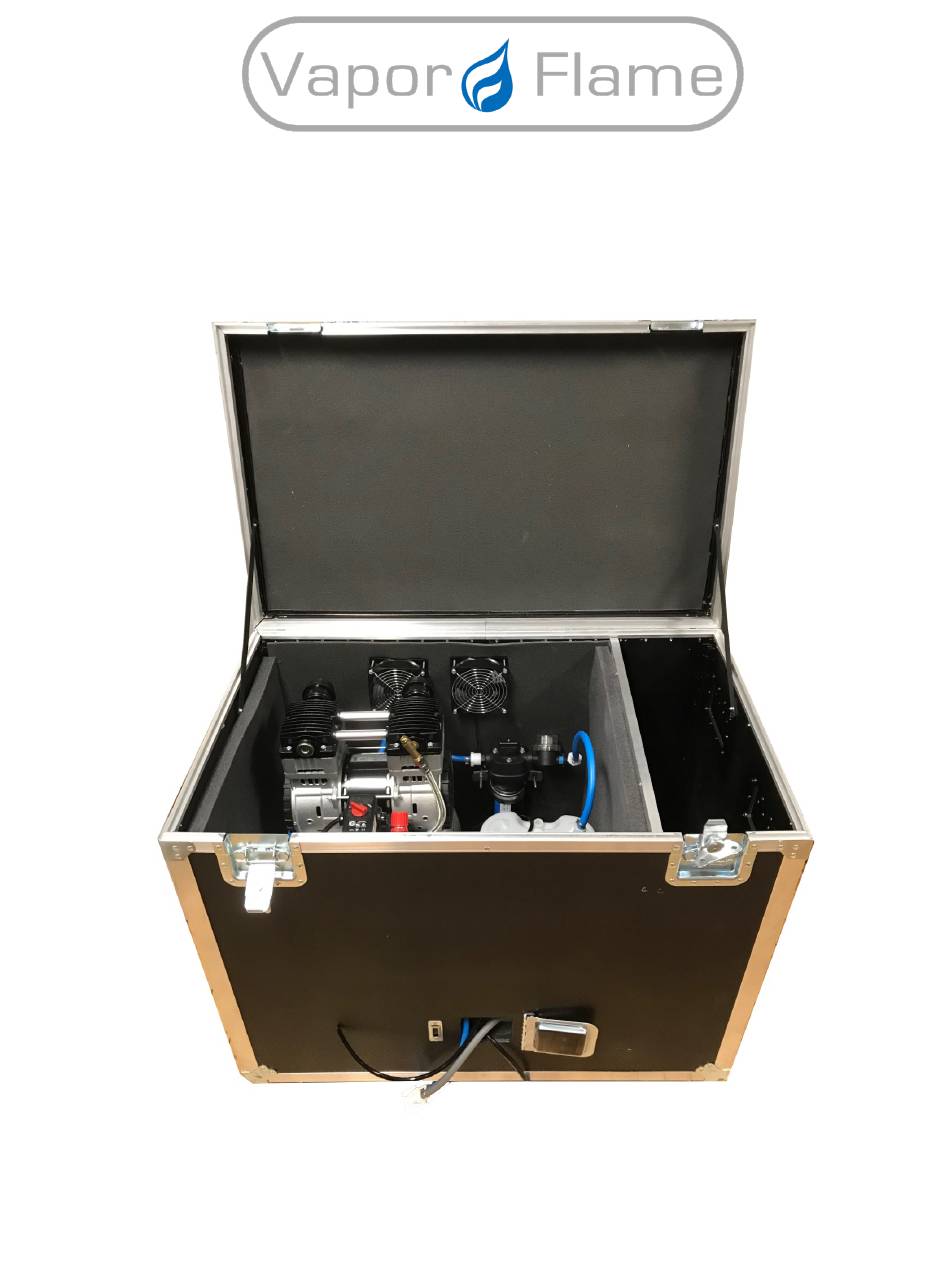

    • Air/Water Blow Off Valve Product Description The VFE-L is an air compressor and water pump set built into a mobile road case that serves as an "Engine" to the VaporFlame System.   This case houses an air compressor, water pump, water tank and hoses to deliver enough air and water for several VaporFlame units.

  • Page 7: Setup

    The VFE-L Engine features a “tilt-and-roll” handle for ease of transport, but must be set in a “lid-up” orientation when run. 1. The VFE-L should not tip or flip and MUST ride on wheels FIG.1 Fill The Water Tank with Clean Potable Water.

  • Page 8: Switch On The Air Compressor. (Fig 4)

    Quick Release units. Connector Set up your VaporFlame Effect unit FIG. 6 1. Power up the VaporFlame effect and lighting fixture per their manuals. Drain remaining water from the unit before storage. 1. Disconnect the VaporFlame effects units from the Air/Water hoses.

  • Page 9: A Few More Things

    Any clean potable water can be used in The Engine. In short, if you can drink it, so can the VFE-L. Debris in the water line can clog and damage the VaporFlame units. We have installed a filter for debris on the water supply line.

  • Page 10: Warranty

    If VaporFlame determines the fixture is under warranty, then VaporFlame will correct the issue and ship back to owner at VaporFlame’s expense. If VaporFlame determines the fixture is not under warranty, VaporFlame will ship the fixture back to the owner at the owners expense.

  • Page 11: Tips And Tricks

    I crossed the streams and now 1. Don’t cross the streams!! the VaporFlame effect won’t 2. Sending water into the air hose of a VaporFlame effect will work damage the internal air valve. You can try letting the unit dry out for a few hours.
