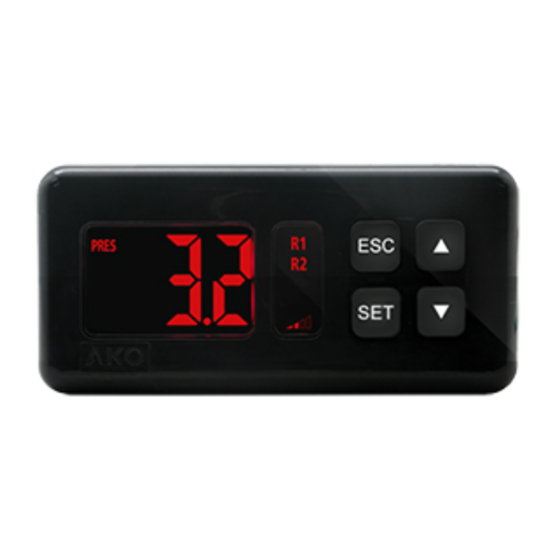

AKO -14545 User Manual

5-stage compressor racks + 2 converter outputs
Hide thumbs Also See for AKO-14545:
Table of Contents

Advertisement

Quick Links

Download this manual
GB
1454H502 Ed.03
AKO-14545
AKO-14545-C
5-stage compressor racks +
2 converter outputs
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKO-14545 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AKO AKO-14545

Summary of Contents for AKO AKO-14545

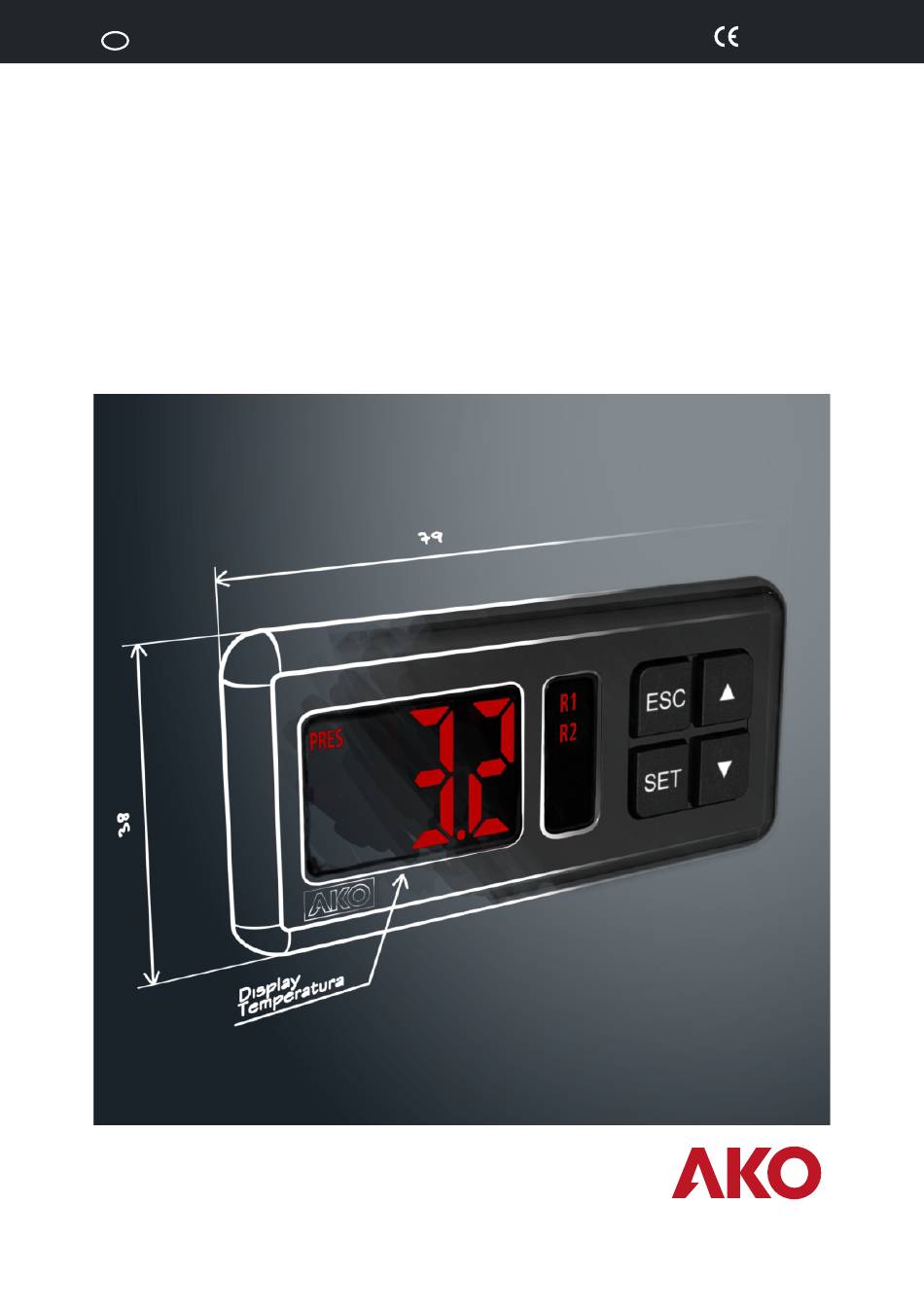

  • Page 1 1454H502 Ed.03 AKO-14545 AKO-14545-C 5-stage compressor racks + 2 converter outputs User Manual...

  • Page 2: Table Of Contents

    Only qualified personnel should install or perform technical assistance on this product. This product is designed to be used in the applications described in the product manual. AKO Electromecánica gives no guarantee of its operation in any use not foreseen in the manual, and is not responsible for any damage resulting from improper use, configu- ration, installation or commissioning.

  • Page 3: Precautions

    ANALOGUE OUTPUTS RELAYS COMMUNICATION INPUTS 2 x 0-5 V / 4-20 mA / NTC 2 x 0-10 V / 4-20 mA AKO-14545 90-240 V Up to 6 + 1 x NTC (inverter controls) 2 x 0-5 V / 4-20 mA / NTC...

  • Page 4: Display Messages

    1454H502 Ed.03 3.2.- Display messages Flashing 0: Access code (Password) request PRES TEMP You must enter the access code configured on L5 to execute the requested function (P. 23). Probe 1, 2 or 3 faulty PRES PRES PRES TEMP TEMP TEMP (open circuit, crossover or temperature outside the probe limits;...

  • Page 5: Inicio Rápido

    1454H502 Ed.03 4- Inicio rápido The unit has a wizard that configures the unit's parameters and assigns the input and output functions according to the installation type chosen. When connecting the power supply for the first time, the Configuration Wizard will start, displaying the message INI on screen.

  • Page 6: Legend

    1454H502 Ed.03 The second group specifies the function assigned to each relay depending on the INI option selected. Relays Relays R1 to R5 OUTPUTS Function assigned to each relay depending on the INI option selected* The third group specifies the function assigned to each digital input depending on the INI option selected. Inputs Inputs I1 to I6 OUTPUTS...

  • Page 7: Wizard" Table

    1454H502 Ed.03 4.3.- “WIZARD” table OUTPUTS INPUTS R1 R2 R3 R4 R5 T-C1 L.P. H.P. C1 C1a T-C1 L.P. H.P. C1 C1a C1b T-C1 L.P. H.P. C1 C1a C1b C1c T-C1 L.P. H.P. T-C1 T-C2 L.P. H.P. C1 C1a C2 C2a AL T-C1 T-C2 L.P.
  • Page 8 1454H502 Ed.03 OUTPUTS INPUTS R1 R2 R3 R4 R5 T-V1 L.P. H.P. T-V1 T-V2 L.P. H.P. T-V1 T-V2 T-V3 L.P. H.P. T-V1 T-V2 T-V3 T-V4 L.P. H.P. T-V1 T-V2 T-V3 T-V4 T-V5 H.P. T-C1 T-V1 L.P. H.P. T-C1 T-V1 T-V2 L.P.

  • Page 9: Wiring

    19 20 21 22 23 24 25 26 27 28 90-240 V~ 15 16 17 19 20 15 16 17 19 20 50/60 Hz AKO-14545 AKO-14545-C 9 10 0-5 V R1 R3 15 16 17 19 20 15 16 17...

  • Page 10: Location Of The Probes

    1454H502 Ed.03 6.- Location of the probes 6.1.- Proportional mode WITHOUT FREQUENCY CONVERTER The controller activates (red line) or deactivates (green line) the different stages/compressors available in a linear manner depending on the reading obtained in probe 1 until the Set Point (E01) is reached again, as shown in the following figure.

  • Page 11: Neutral Zone Mode

    1454H502 Ed.03 6.2.- Neutral zone mode WITHOUT FREQUENCY CONVERTER In this mode, a neutral zone is defined, whose lower limit is the Set Point minus the bandwidth, and whose upper limit is the Set Point plus the bandwidth. While the reading of probe 1 remains in that zone, no stages or compressors are connected or disconnected.

  • Page 12: Pump Down

    1454H502 Ed.03 WITH FREQUENCY CONVERTER Operation is the same as in the previous point, but modulating the power of compressor 1 with the converter while it remains in the neutral zone using a PID control. Near the upper limit, the compressor operates at its maximum capacity, and if said limit is exceeded, more stages/compressors are added, in accordance with the interval defined in t02, until returning to the neutral zone.

  • Page 13: Fan Control

    1454H502 Ed.03 7.- Fan control 7.1.- Proportional mode WITHOUT FREQUENCY CONVERTER The controller activates (red line) or deactivates (green line) the different fans available in a linear manner depending on the reading obtained in probe 2 until the Set Point (E01) is reached again, as shown in the following figure.

  • Page 14: Neutral Zone Mode

    1454H502 Ed.03 7.2.- Neutral zone mode WITHOUT FREQUENCY CONVERTER In this mode, a neutral zone is defined, whose lower limit is the Set Point minus the bandwidth, and whose upper limit is the Set Point plus the bandwidth. While the reading of probe 2 remains in that zone, no fans are connected or disconnected.

  • Page 15: Floating Condensation

    1454H502 Ed.03 WITH FREQUENCY CONVERTER Operation is the same as in the previous point, but modulating the power of the fans with the converter while it remains in the neutral zone using a PID control. Near the upper limit, the fans operate at their maximum capacity, and if said limit is exceeded, the capacity is kept at its maximum until returning to the neutral zone.
  • Page 16 1454H502 Ed.03 LOW AND HIGH PRESSURE ALARM DUE TO PROBES 1 AND 2 PRES TEMP If the reading in probe 1 reaches the value set for parameter A03, the message ALL (Low pressure) is displayed on screen, the alarm relay (if available) is activated and the compressors and fans stop.

  • Page 17: Remote Disconnection

    8.- Connectivity 8.- Connectivity The AKO-14545-C model has a port for connection of RS485 (MODBUS) data, that allows remotely managing them The AKO-14545-C model has a port for connection of RS485 (MODBUS) data, that allows remotely managing them using a PC with the AKONet software or an AKO-5011 server.

  • Page 18: Parameter Setup

    1454H502 Ed.03 9.- Parameter setup Through the programming menu users can set different parameters to adjust the operation of the controller to the needs of their installation. 9.1.- Programming Menu It allows changing the unit's operating parameters. To access the programming menu, press the SET button for 10 seconds, or until the "PRG" appears on the screen. IMPORTANT: If the password function has been configured, the system will demand entering the password programmed in L5.

  • Page 19: Parameters

    1454H502 Ed.03 9.2.- Parameters The unit's operation parameters are organized into groups or families according to their function. The Def. column shows factory-set default parameters. The pressure values featured on the table are expressed in bar and those for temperature in ºC. If the wizard meanwhile selects another set of units (parameter C09), the unit will make the conversion automatically.
  • Page 20 1454H502 Ed.03 Level 1.- CONDENSATION CONFIGURATION Description Units Max. F01 Condensation pressure / temperature set point F02 Condensation set point upper limit (It cannot be set above this limit) F03 Condensation set point lower limit (It cannot be set below this limit) -0.7 -0.7 Fan rotation type: 0=Balancing, depending on the operation time...
  • Page 21 1454H502 Ed.03 Level 1.- DIGITAL INPUT CONFIGURATION Description Units Max. Polarity digital input 1 (thermal stage 1): 0=Activates on closing contact; 1=Activates on opening contact Polarity digital input 2 (thermal stage 2): 0=Activates on closing contact; 1=Activates on opening contact Polarity digital input 3 (thermal stage 3): 0=Activates on closing contact;...
  • Page 22 1454H502 Ed.03 Level 1.- TIMING CONFIGURATION Description Units Max. t01 Minimum operation time for a compressor sec. x10 t02 Minimum disconnection time for a compressor sec. x10 t03 Delay time between the compressor start-up/stage and the next one sec. t04 Delay time between the compressor stop/stage and the next one sec.
  • Page 23 1454H502 Ed.03 Level 1.- ACCESS AND INFORMATION CONTROL Description Units Max. P5 Address for units with communication L5 Access code (Password) PU Programme version Pr Programme revision EP Output to level 1 Level 1.- OPERATION TIMES Description Units Max. c1 This shows the operation time for the compressor or fan 1 horas x10 c2 This shows the operation time for the compressor or fan 2 horas x10...

  • Page 24: Limits And Default Values Of The Pressure And Temperature Parameters According To Units

    1454H502 Ed.03 9.3.- Limits and default values of the pressure and temperature parameters according to units. The following table shows the default values and the limits of the pressure and temperature parameters according to the display units defined by parameter C09 during quick start (see page 5). MINIMUM DEFAULT value MAXIMUM...

  • Page 25: Technical Specifications

    Types of probes........

  • Page 26: Dimensions

    1454H502 Ed.03 10.1- Dimensions PRES TEMP 7,1 mm 60,4 mm 79 mm 10.2- Mounting 7 1 m m...
  • Page 27 1454H502 Ed.03...
  • Page 28 AKO ELECTROMECÁNICA , S.A.L. Avda. Roquetes, 30-38 08812 • Sant Pere de Ribes. Barcelona • Spain. Tel.: +34 902 333 145 Fax: +34 938 934 054 www.ako.com We reserve the right to supply materials that might vary slightly to those described in our Technical Sheets. Updated information is available on our website.
