TimeTec FingerTec Face ID 6 Installation Manual

Installation Guide
Hybrid Face Recognition Access Device
TimeTec © 2022, All Rights Reserved • 122022

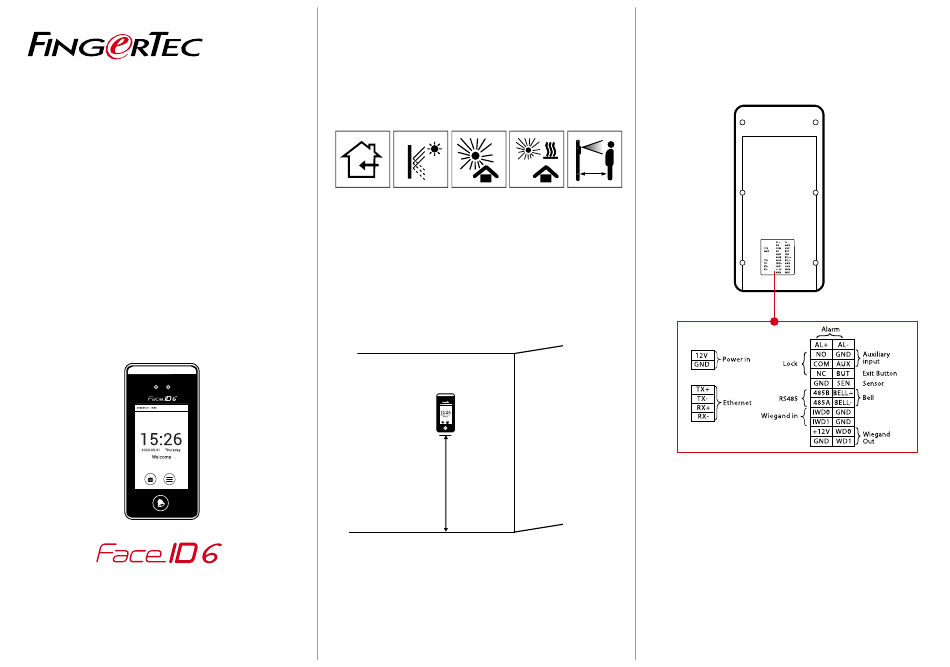

Step 1
Determine the Installation Location
•
Avoid installing the terminals in locations that have contact with
strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
Indoor Use Avoid Glass Avoid Direct
Refraction Sunlight
And Exposure
•
Avoid installing the terminals in locations with high moisture or
condensation levels in the air
•
The recommended installation height of the terminal from the
ground to the camera is 1.5 meter.
Step 2
Mount Terminal on a Wall
4 feet / 1.5 meter
(recommended)
1. Avoid strong sunlight
2. Install the terminal 1.5m from the ground level (measure the
height from the ground to the face camera)"
After measuring the height accordingly and make relevant markings on
the wall, drill the screws into the wall to secure the back plate.
Attach the terminal to the back plate and tighten the screws.
Refer to Appendix II for dimensions and measurements of installation.
Step 3
Wiring for Power Supply
Use power cables (black and red) to connect to a linear power sup-
ply with specifications of 12VDC 3A to Power Port.
Far Away Keep Effective
Heat Source Distance
0.3-2.5m
Step 4
Setting Up Data Communications
(Skip this step if you are using USB flash disk to transfer data)
The data communication ports are positioned at the rear of the ter-
minal, please refer to the diagram shown on Step 3 to determine the
wiring. Plug the communication jacks (TCP/IP) to the corresponding
ports.
TCP/IP – LAN Connection
For TCP/IP connection, plug the special RJ45 jack into the TCP/IP
(LAN) Port of the terminal. Connect the other end (normal RJ45 jack)
to the local area network hub or a PC. Configure the device ID, IP ad-
dress, subnet mask and Gateway in the terminal (refer to the hard-
ware user manual for details).
