ProFace X/TD
Face Recognition Access Control Device with Fever Detection
Installation Guide

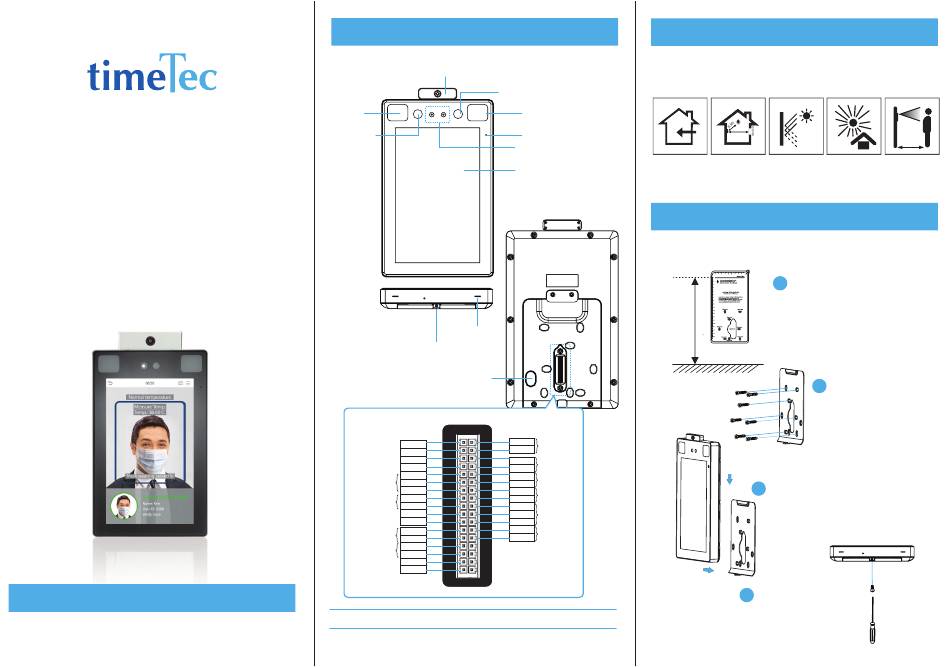

OVERVIEW
Thermal infrared temperature
measurement module
Near-infrared flash
Flash
Near-infrared
flash
Speaker
Reset button
Tamper switch
12V
12V
GND
GND
GND
RS232
RXD1
TXD1
485B
RS485
485A
GND
12V
Wiegand WD1
WD0
Out
INWD1
Wiegand
INWD0
In
GND
12V
Note:
Not all products have the function with * , the real product shall prevail.
Please refer to the following recommendations for
installation.
Flash
Microphone*
Camera & Palm collector
INDOOR USE
8" touchscreen
1.5m
+12V
Power
GND
Auxiliary
GND
input
AUX
GND
Sensor
SEN
Exit
GND
BUT
button
NO
COM Lock
NC
AL-
Alarm
AL+
INSTALLATION ENVIRONMENT
10ft
KEEP DISTANCE AVOID GLASS AVOID DIRECT KEEP EFFECTIVE
REFRACTION SUNLIGHT
AND EXPOSURE
DEVICE INSTALLATION
INSTALL ON THE WALL
1
Attach the mounting
template sticker to the wall,
and drill holes according to
the mounting paper.
2
Fix the back plate
on the wall using
wall mounting
screws.
3 Attach the device to the
back plate.
4
Fasten the device
to the back plate
with a security
screw.
DISTANCE
0.3-2.5m
