Smart AC1/TD
Face Recognition Access Device With Fever Detection
Installation Guide

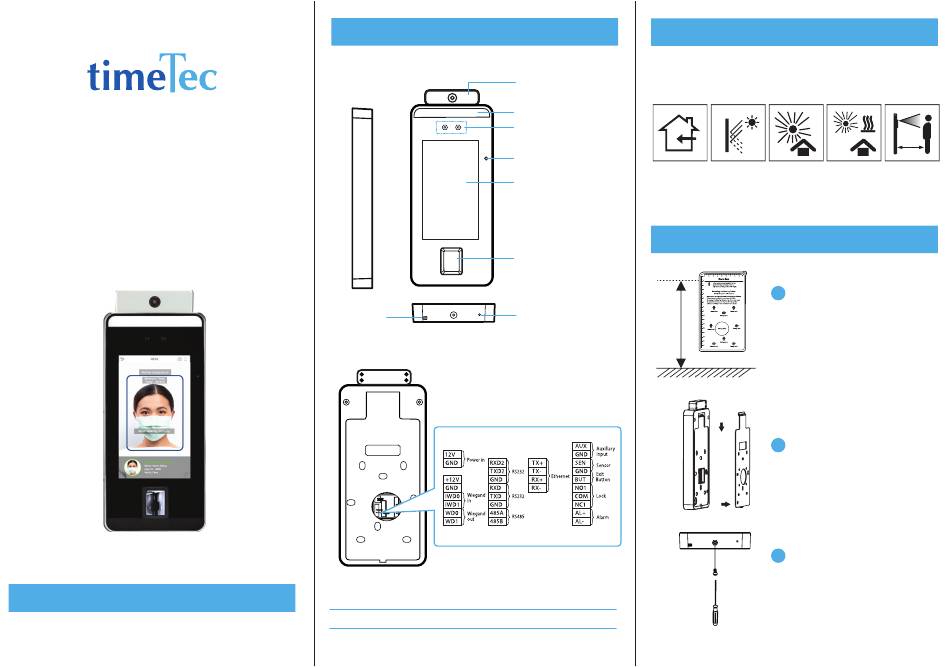

OVERVIEW
Thermal infrared temperature
measurement module
Flash
Camera & Palm collector
Microphone*
5" touchscreen
Fingerprint sensor
Reset
Speaker
Note:
Not all products have the function with
*
, the real product shall prevail.
INSTALLATION ENVIRONMENT
Please refer to the following recommendations for
nstallation.
Indoor Use
Avoid Glass
Avoid Direct
Refraction
Sunlight
And Exposure
DEVICE INSTALLATION
1
Attach the mounting tem-
plate sticker to the wall,
and drill holes according
1.5m
to the mounting paper.
Fix the back plate on the
wall using wall mounting-
screws.
2
Attach the device to the
back plate.
3
Fasten the device to the
back plate with a security
screw.
Far Away
Far Away
Heat Source
Heat Source
Advertisement
Related Manuals for TimeTec Smart AC1/TD
Summary of Contents for TimeTec Smart AC1/TD
- Page 1 Attach the device to the back plate. Fasten the device to the Smart AC1/TD back plate with a security screw. Face Recognition Access Device With Fever Detection Note: Not all products have the function with , the real product shall prevail.
- Page 2 RS485 AND RS232 CONNECTION STANDALONE INSTALLATION LOCK RELAY CONNECTION The system supports Normally Opened Lock and Normally Closed Lock. The NO LOCK (normally opened at power on) is connected with ‘NO1’ and ‘COM’ terminals, and the NC LOCK (normally closed at power on) is connected with ‘NC1’ and ‘COM’...
- Page 3 , input the IP address and click [OK]. Note: In LAN, IP addresses of the server (PC) and the device must be in the same network segment when connecting to software. © 2020 Timetec Cloud Sdn Bhd. All rights reserved.
