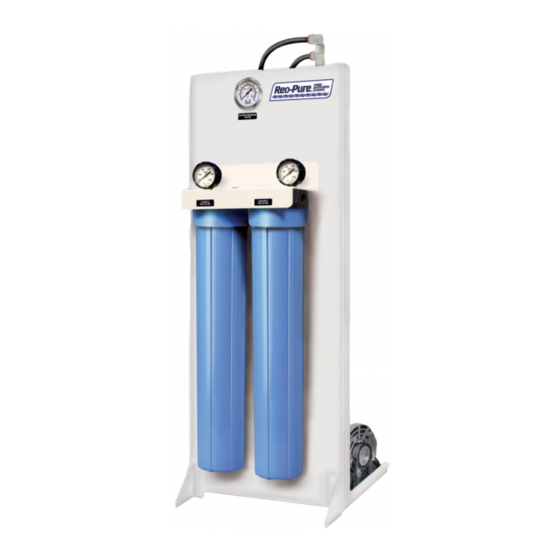

Summary of Contents for Reo-Pure LP3 Series
- Page 1 LP3500-03172015 LP3-500 Owner’s Manual | 0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Reo-Pure LP3-500 Model Getting to Know Your Reo-Pure R.O. System Major Component Diagram ............................2 Introduction How Reverse Osmosis Works ............................3 Definition of Terms ............................... 3 Factors Affecting System Operation and Performance ....................3 Systems Specifications Operating Specifications .............................. -
Page 3: Getting To Know Your Reo-Pure R.o. System
Noting their locaiton will assist you in the startup and maintenance of the R.O. System. IMPORTANT – This manual covers the installation, operation and maintenance of the Reo-Pure LP3-500 Reverse Osmosis System. It is important to read this manual thoroughly BEFORE installing the system. For systems that are equipped with optional features, refer to the appropriate optional feature inserts, located at the end of the manual. -
Page 4: Introduction
INTRODUCTION Your Reo-Pure System has been designed to produce quality is sent down the drain. This design is used as a way to water for a variety of applications. We are confident that you minimize the amount of water sent to drain. -
Page 5: Systems Specifications
Maximum 0.1 PPM Inlet Feed Water Pressure: Minimum 40 PSI Maximum 85 PSI 4 to 10 pH Range: Feed Water TDS: Consult Reo-Pure Manufacturer if TDS exceeds 2,000 PPM F – Maximum 90 Minimum 45 Temperature: Max Operating Pressure: 180 PSI... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS LOCATE DESIRABLE INSTALLATION SITE Determine a desirable location for your Reo-Pure system. It IMPORTANT – Installation must comply with state and should be positioned on a hard level surface capable of local plumbing, electrical, and sanitation codes. supporting the entire weight of the system. See SYSTEM SPECIFICATIONS for approximate weight and dimensions. -
Page 7: Drain/Reject Water Connection
See the wiring diagram at the end of this manual for the correct power connections. Every LP3 Series 60Hz, 120V, 1Ph model comes equipped with an In-Line On/Off Toggle Switch – conveniently located next to the system pressure switches. Please reference the wiring diagram at the end of this manual for more information. -
Page 8: Start-Up Procedure
During the initial start-up of the system, it is important to divert all of the product water to a wastewater drain for This Reo-Pure System was designed to operate at 50% approximately 30 to 60 minutes. Membrane elements are recovery. The gallons per day of product water produced will... -
Page 9: Check The Product Water Pressure Switch
“System Pressure Switches.” be allowed to regenerate while the Reo-Pure system is operating; unless safeguards are used to be sure the system is shutdown or... -
Page 10: Filter Cartridge Installation And Replacement
FILTER CARTRIDGE INSTALLATION & REPLACEMENT FILTER CARTRIDGE INSTALLATION This Reo-Pure System includes two pre-filter cartridges: the 5- micron sediment pre-filter cartridge that collects sediment, and the carbon block pre-filter cartridge that reduces undesirable tastes, odor and chlorine. NOTE: The sediment cartridge and the carbon block cartridge have been packaged separately and will need to be installed prior to start-up. - Page 11 FILTER CARTRIDGE INSTALLATION & REPLACEMENT (continued) Replace the filter sumps on the filter housing caps, NOTE: manufacturer filter housing making sure the filters in the sumps match the recommends that the filter sump of all plastic housings be corresponding label on the bracket above the caps. replaced every five years for a clear sump and every ten DO NOT OVER TIGHTEN.
-
Page 12: System Pressure Switches
System preset to shut down at inlet pressure below 15 psi A Product Water Pressure Switch is a standard feature on Reo- An Inlet Low Pressure Switch is installed on every Reo-Pure Pure LP3 R.O. Systems. Its purpose is to stop and start the System. -
Page 13: Servicing The Membrane Element
13. Turn on the feed water supply using the manual inlet IMPORTANT – Before performing any maintenance on shut-off valve and allow the system to fill with water. your Reo-Pure System, always disconnect the power 14. Check for leaks. supply! 15. -
Page 14: Sanitizing The System
DO NOT OVER IMPORTANT – Before performing any maintenance on TIGHTEN. your Reo-Pure System, always disconnect the main power 21. Turn on the feed water supply and allow the system supply! to fill with water. -
Page 15: Major Components Replacement List
Replacement Parts List LP3-500 Models 120V/60Hz & 220V/50Hz Models MEMBRANE ELEMENT PUMPS & MOTORS PART NO. DESCRIPTION PART NO. DESCRIPTION 7030202601 Membrane Element, 2" x 26" 3031501 Pump, Rotary Vane, 3/8" NPT, Brass, with clamp, 60 GPH – for 60Hz Systems 3031511 Pump, Rotary Vane, 3/8"... -
Page 16: Automatic Flush Timer
AUTOMATIC FLUSH TIMER (optional feature) If your Reo-Pure System was equipped with an optional Auto Flush Timer, then the manual flush valve will be eliminated. In place of the manual flush valve is an Auto Flush Solenoid Valve. The solenoid is wired to the electrical enclosure and is pre-set so that a one-minute flush will occur every time the system goes into operation. -
Page 17: Inline Tds Monitor
To do so you would set dipswitch 1 to the on position. servicing, or the membrane element may need to be replaced. Contact your Reo-Pure Dealer for assistance. If no light glows, replace the monitor battery. For best results, replace the 9-volt battery once a year. -
Page 18: Tank Level Float Control Switch
Connect the power to the Reo-Pure system. Follow the Start-Up procedures found in the Reo-Pure R.O. System Installation, Operation and Maintenance Manual. The Tank Level Float Control Switch will now start and stop the Reo-Pure R.O. System based on the level in the atmospheric storage tank. -
Page 19: Reo-Pure System Limited Warranty
Great Lakes International, Inc. further warrants that the REO-PURE system will continue to operate for a period of one (1) year from start-up, or 15 months from purchase, whichever is shorter, provided that the user supplies feed water meeting minimum standards stated in the REO-PURE Operating Manual and adopts and implements the maintenance program recommended in the REO-PURE Operating Manual. -
Page 20: System Trouble Shooting
REO-PURE LP3-500 SYSTEM TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION No electrical power Check power supply Storage tank full Drain portion of water out of tank RO SYSTEM WILL NOT Low feed water pressure Must be minimum of 35 psi START Pump/motor malfunction... - Page 21 REO-PURE LP3-500 SYSTEM TROUBLESHOOTING (continued) PROBLEM POSSIBLE CAUSE SOLUTION Increase in feed water TDS Check feed water TDS Filter cartridges exhausted Replace filter cartridges Replace filter cartridges and membrane, sanitize Tank and system contaminated system and tank TASTING WATER Tank contaminated...
-
Page 22: Flow And Electrical Schematics
LP3 SERIES SYSTEM FLOW DIAGRAM LP3-500 Owner’s Manual | 21... - Page 23 SYSTEM WIRING SCHEMATIC LP3-500 Owner’s Manual | 22...
-
Page 24: System Log Sheet
LP3-500 Owner’s Manual | 23...
