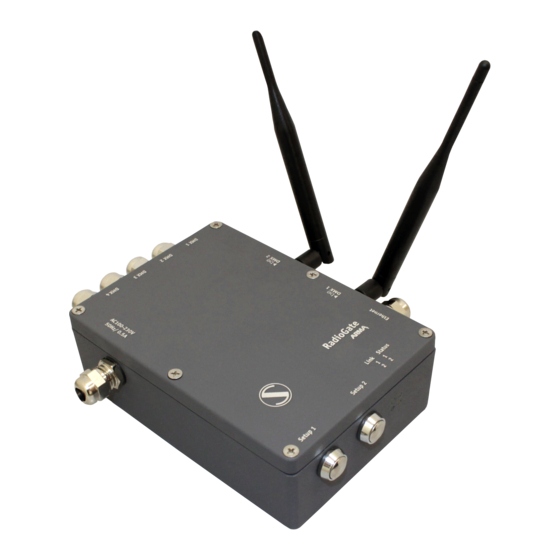

- Page 1 User Manual RadioGate Plus Version 1.05 April 5, 2022...
-
Page 2: Table Of Contents
RadioGate Plus Contents Safe operation General information Merging Connection types Installation Device configuration Wireless network configuring Switching device mode Operation Receiver mode Wireless status indication interface Troubleshooting Web-settings Main settings Advanced settings Network settings Profile settings Firmware update Technical maintenance... -
Page 3: Safe Operation
Ethernet LAN 10/100Base-T port. Maximum distance is up to 1500 metres with directional antennas. RadioGate Plus series is powered by AC ~90-250 V, 50/60 Hz or from Ethernet using the using the IEEE 802.3af standard – Power-over-Ethernet technology (depends on modification), or DC 12-24V. -
Page 4: Connection Types
DMX connections XLR 5-pin connectors are used to connect DMX512 equipment to DMX-ports of RadioGate Plus Solid. If necessary, the device can be equipped with XLR 3-pin connectors. Each port of RadioGate Plus Solid has 2 connectors — one M connector and one F connector,... -
Page 5: Installation
RadioGate Plus Installation Warning! 1. Visual inspection of the device to make sure that Before mounting and power up, it is damage caused by transportation. necessary to verify protective earthing 2. Install the supplied antennas and connect necessary and cable connections. -
Page 6: Wireless Network Configuring
RadioGate Plus Wireless network configuring (receiver) The device is ready for further network configuration. Wireless network configuring (transmitter) 1. Рower up the device. “LINK” LED (green) must be steady on or blink. 2. Turn on all receivers that are needed to connect to device, placing them at a minimal distance from the device. -
Page 7: Switching Device Mode
LED. In the input mode, port status LED is steady on if there is valid DMX input signal or flashes slowly the DMX input signal is invalid or absent. In the output and loop modes, port status LED is steady on when there is no data for output and blinks when new DMX data are transmitted (updated). -
Page 8: Wireless Status Indication Interface
DMX-input. blinks slow is on Normal operation, connection is being established with one or more receivers or lost, or no receivers to connect with no signal at the DMX-input. Configuration mode, searching for receivers. blinks fast blinks fast blinks slow blinks slow Configuration mode, new network configuration can be stored. -
Page 9: Web-Settings
RadioGate Plus Web settings RadioGate Plus devices support configuring most of their parameters through the web interface using HTTP protocol (TCP port 80). -
Page 10: Main Settings
Device description – editable device description (up to 63 characters) Device status – current state of the device ArtNet 4 Net address – network number (0-127, only for ArtNet 4) Ports – Configuration and status of DMX ports Mode/merging Port direction and merge mode for output Pri. -
Page 11: Advanced Settings
Advanced settings To edit the advanced settings of the device, click on the link “Advanced”. Pic. 4 Advanced settings RDM devices – RDM devices list, connected to DMX-ports Start discovery Searching connected devices Refresh report Refresh search/list state detected devices... - Page 12 RadioGate Plus DMX signal timing – sets the parameters of the output DMX signal for all ports Break from 4 to 1000 µs from 4 to 1000 µs Data slots 1 to 512 Pause from 0 to 10000 µs DMX line terminator – enables (selected) or disables (cleared) termination resistor between D+ and D- wires of DMX line on each port.
-
Page 13: Network Settings
RadioGate Plus Network settings To edit the network settings of the device, click on the link “Network”. Pic. 5 Network settings MAC address Hardware address and secondary (permanent) IP address of the device Main IP Set the main network address of the device... -
Page 14: Profile Settings
RadioGate Plus Profiles settings For profile operations, click on the link “Profiles”. Pic. 6 Profiles settings Download current profile Download the current settings as a file Profile for uploading Select the file of previously saved profile Upload profile To upload the selected profile in the device Firmware update For profile operations, click on the link “Firmware”. -
Page 15: Technical Maintenance
RadioGate Plus Technical maintenance Maintenance the device, search and troubleshooting should be performed by service personnel. The device should be free from dirt, dents, connecting cables and wires must be intact and securely fastened. Notes Please send all your warranty-related questions to support@sundrax.com... - Page 16 Sundrax Electronics 6008, First Central 200 2 Lakeside Drive, Park Royal, London NW10 7FQ United Kingdom + 44 (0) 208 991 33 19 office@sundrax.com www.sundrax.com...
