LAUNCH X-431 Torque LINK User Manual

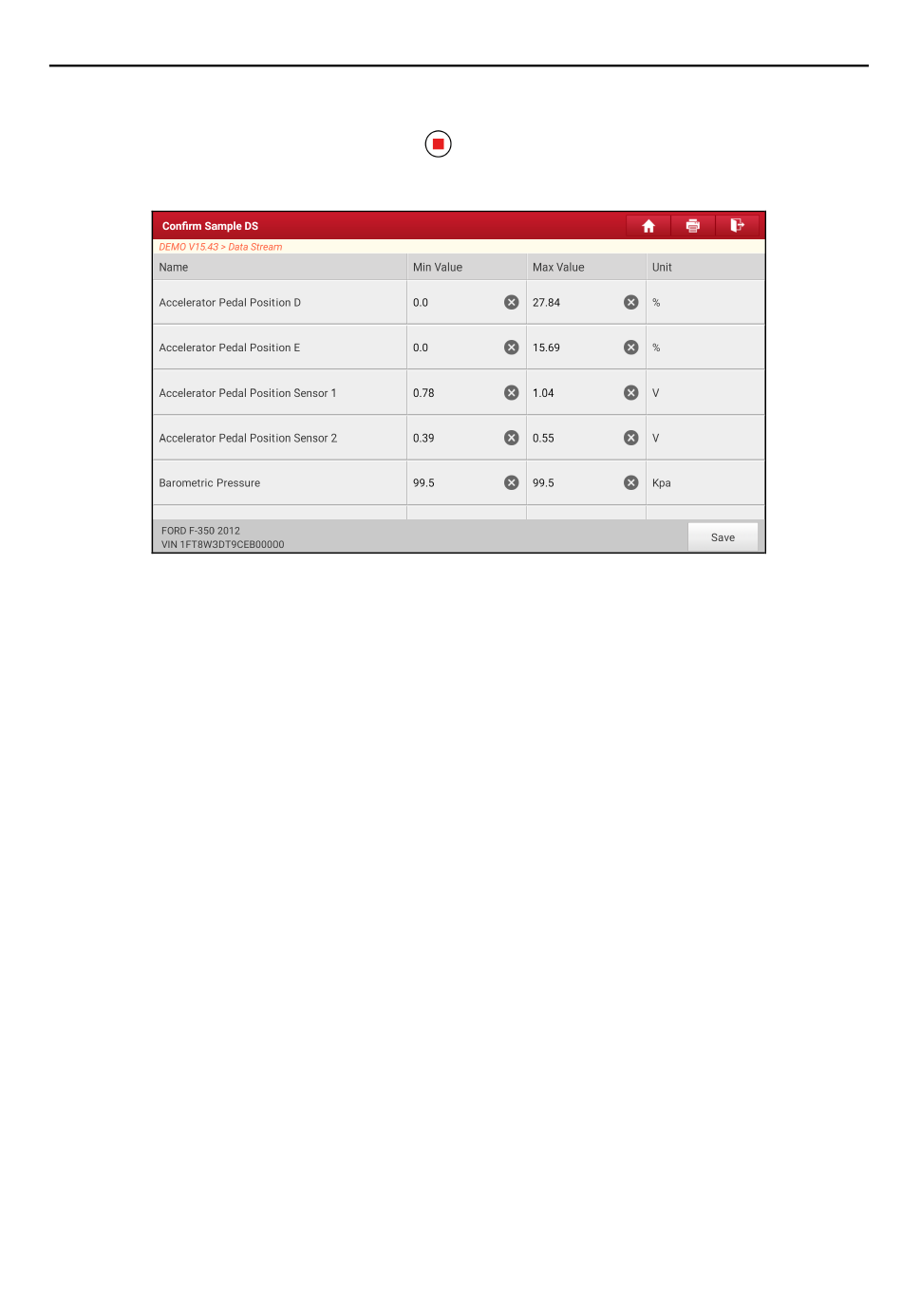

Once recording is complete, tap to stop it and navigate to the data
modification screen.
Tap the Min./Max. value to change it. After modifying all desired items, tap Save
to save it as a sample data stream file. All data stream files are stored in Profile
-> Sample.
E. Actuation Test
This option is used to access vehicle-specific subsystem and component tests.
Available test vary by vehicle manufacturer, year, and model.
During the actuation test, the tablet outputs commands to the ECU in order to
drive the actuators, and then determines the integrity of the system or parts by
reading the ECU data, or by monitoring the operation of the actuators, such as
switching a injector between two operating states.
On the diagnostic function selection screen, tap Actuation Test, the following
screen will appear:
